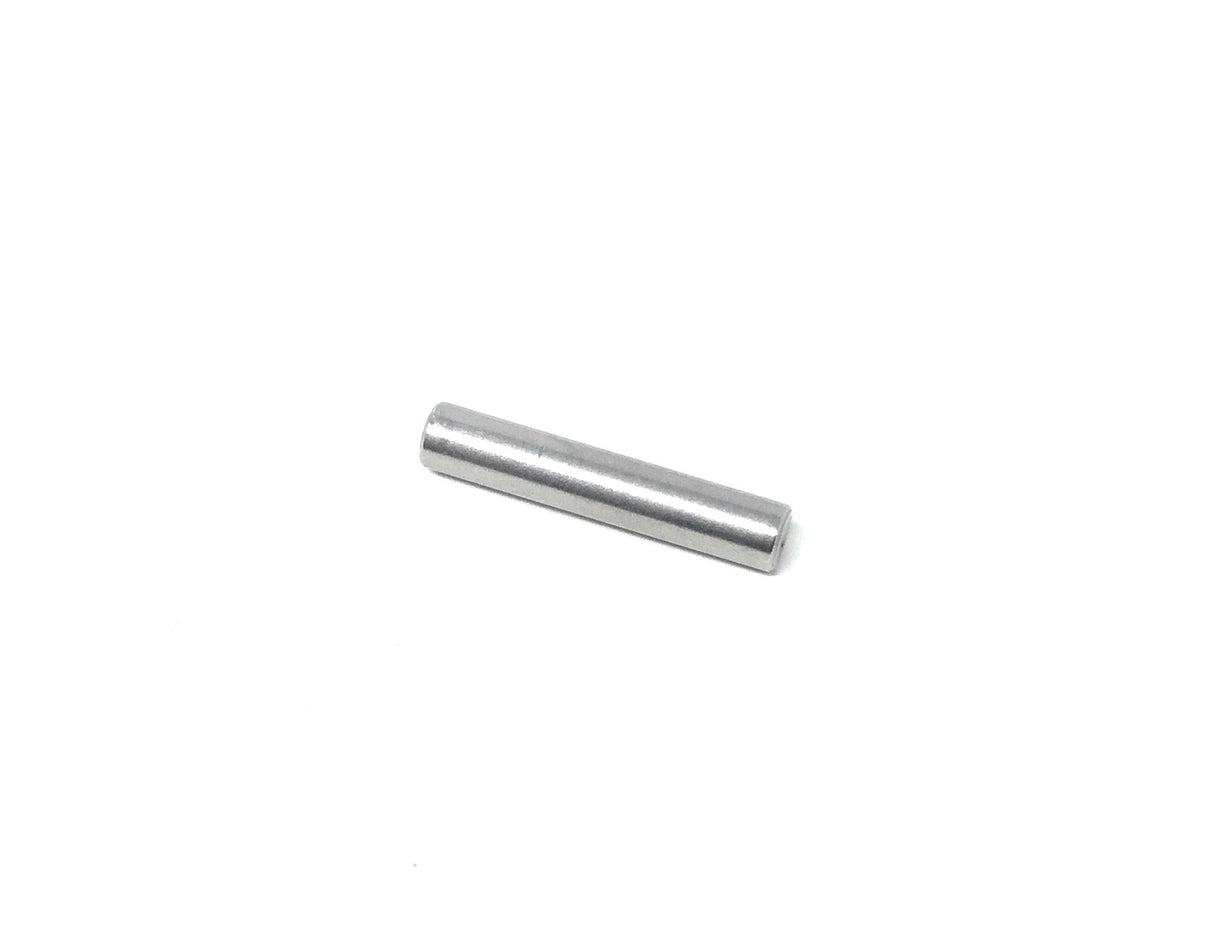

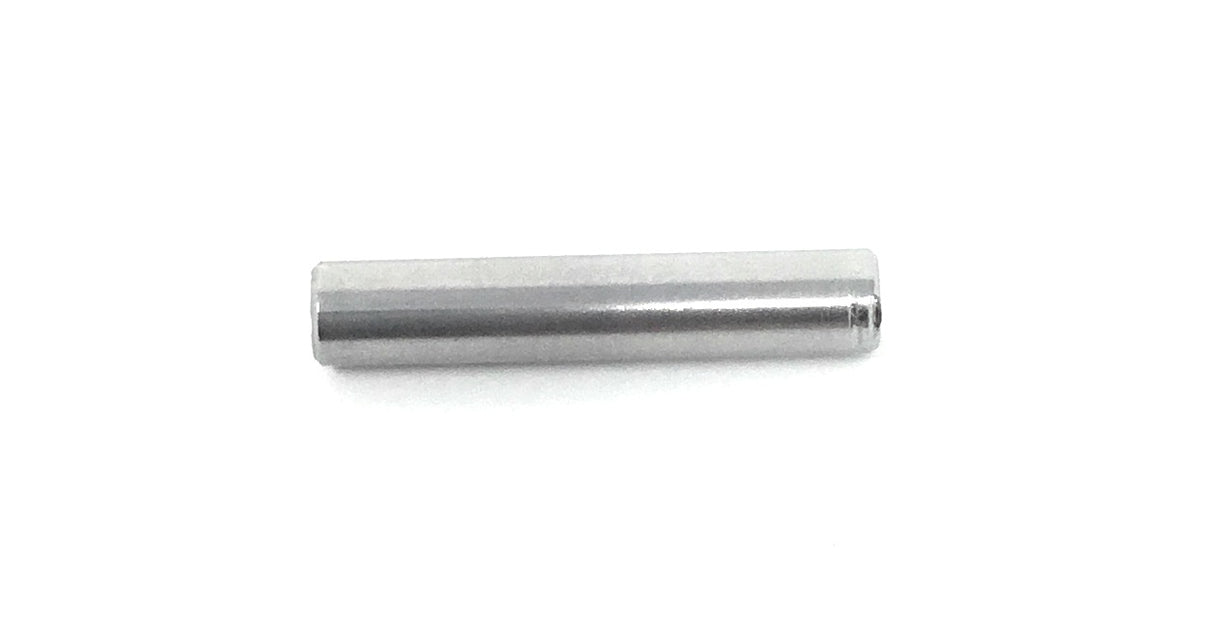

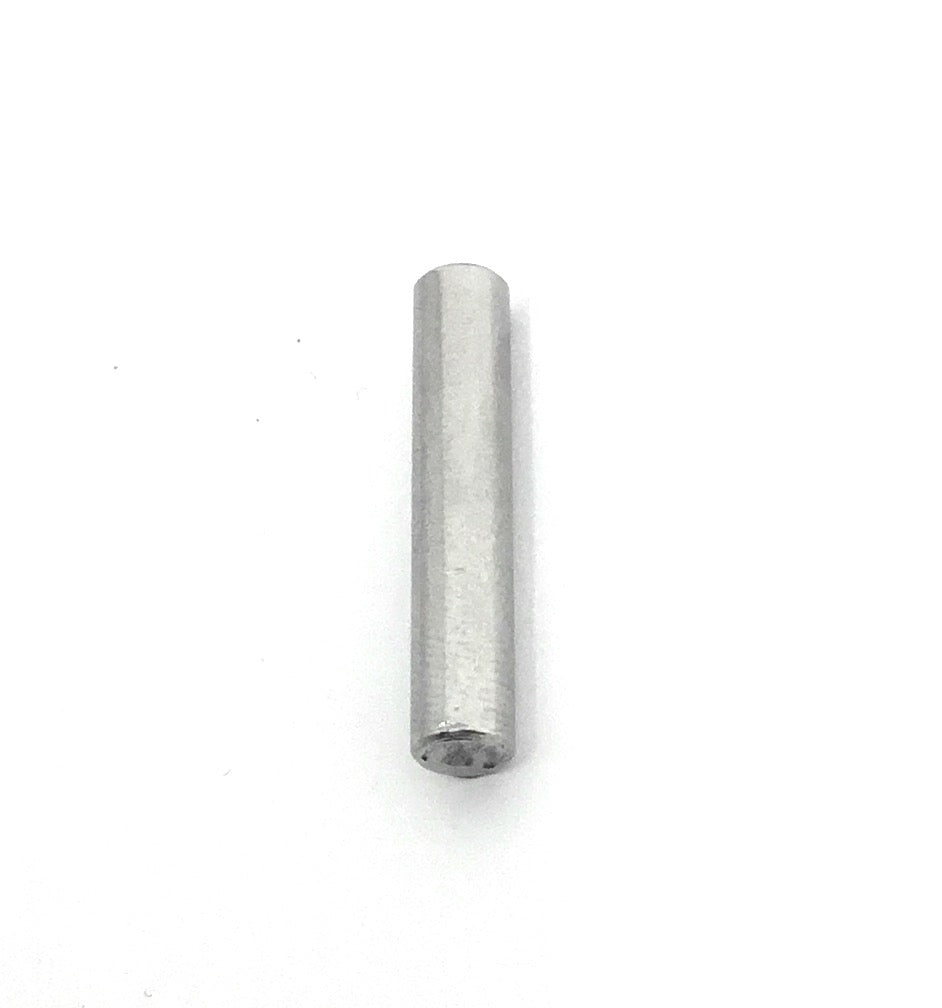

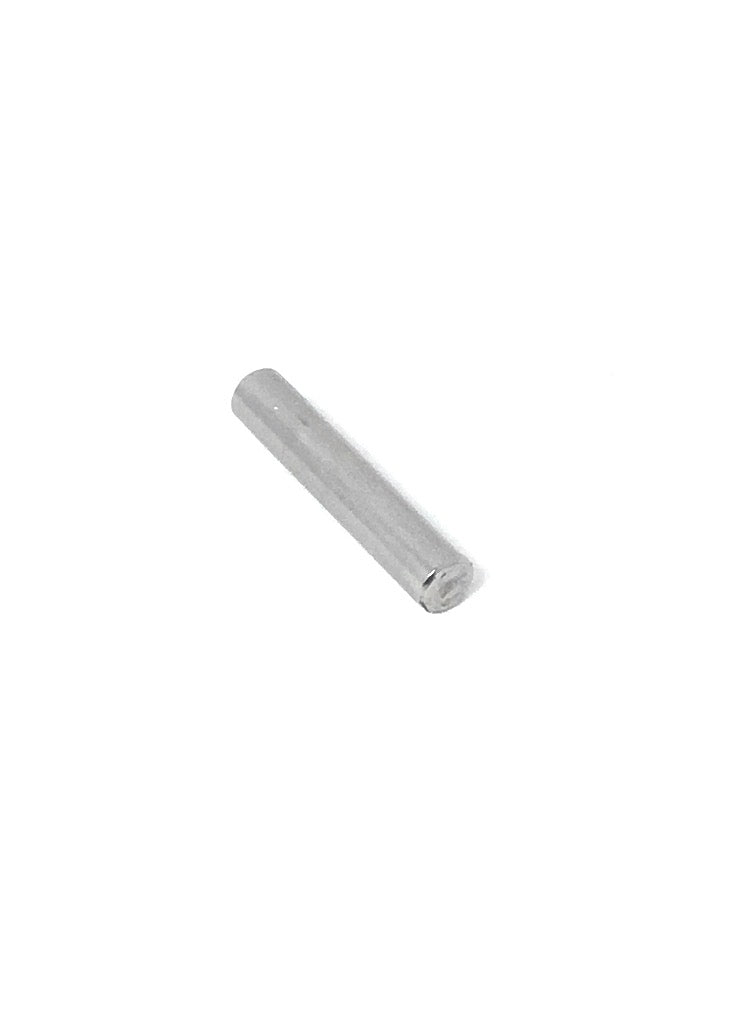

Hayward Suction Cleaner Intermediate Gear Shaft | AXV309

Hayward  |  SKU: AXV309  |  Barcode: 0610377212922
Sale price $895 USD Regular price $1395

Ships to

Select your store

Pickup inventory reflects the selected variant.

Product FAQs
Is AXV309 a gear or a shaft?

Hayward identifies AXV309 as the intermediate gear shaft. The intermediate gear is separately identified as AXV301 in the same manufacturer parts tables.

Which character-cleaner configurations list it?

The original IS579 Rev.B manual lists AXV309 for AquaBug, Diver Dave, Wanda the Whale and AquaCritter. The European catalog separately documents Magic Clean, AquaCritter, Penguin and Whaly configurations.

What Pool Vac and Navigator fit is documented?

The manufacturer tables identify Pool Vac Ultra Pro, Navigator Pro, Pool Vac V-Flex and Navigator V-Flex configurations for AXV309. Match the exact regional model and diagram revision.

Compatibility
  • Hayward AquaBug — IS579 Rev.B configuration
  • Hayward Diver Dave — IS579 Rev.B configuration
  • Hayward Wanda the Whale — IS579 Rev.B configuration
  • Hayward AquaCritter — IS579 Rev.B and European catalog configurations
  • Hayward Pool Vac Ultra Pro — European catalog configuration
  • Hayward Navigator Pro — European catalog configuration
  • Hayward Pool Vac V-Flex — European catalog configuration
  • Hayward Navigator V-Flex — European catalog configuration
  • Hayward Magic Clean — European catalog configuration
  • Hayward Penguin — European catalog configuration
  • Hayward Whaly — European catalog configuration

Match the exact assembly, part number and revision before ordering. Individual intermediate-gear shaft for the specifically documented suction-cleaner configurations. The intermediate gear, cone gear and other drive parts are separate catalog references; this is not a complete gear kit.

Delivery and Shipping

  • FREE SHIPPING IN THE USA
  • WORLDWIDE SHIPPING AVAILABLE
  • 30 DAY RETURNS

Description

Hayward | AXV309

Suction Cleaner Intermediate Gear Shaft

The Hayward AXV309 is the Suction Cleaner Intermediate Gear Shaft. It is listed for Hayward AquaBug — IS579 Rev.B configuration and 10 additional applications.

Before you order

Match AXV309 to the shaft callout on your exact cleaner's parts diagram. Check the model and regional configuration; do not substitute a similar-looking pin or assume a complete gear assembly is included.

Check the exact part and model

Compare part number AXV309 with the diagram for your installed equipment. Match the model, finish, quantity and revision; a similar appearance or shared brand name does not establish interchangeability.

See Compatibility, Specifications, Resources & PDF Downloads and Product FAQs for product details and support references.

Existing product videos

Specifications

  • SKU
    AXV309
  • Product Type
    Pool Cleaner Replacement Part
