Hayward DV4000 / DV5000 / KingRay Cassette Assembly with Diaphragm | DCX105
Yes. Hayward's parts catalog expressly describes the cassette assembly as including the diaphragm. The current merchant copy and photos also show the cassette O-ring. No. DCX105C is the separately listed diaphragm service part; DCX105 is the cassette assembly with diaphragm. The manufacturer catalog lists DV4000, DV5000 and KingRay. The DV5000 owner manual also lists DCX105; match the installed revision and required assembly.Product FAQs
Does DCX105 include the diaphragm?
Is DCX105C the same item?
Which configurations list this assembly?

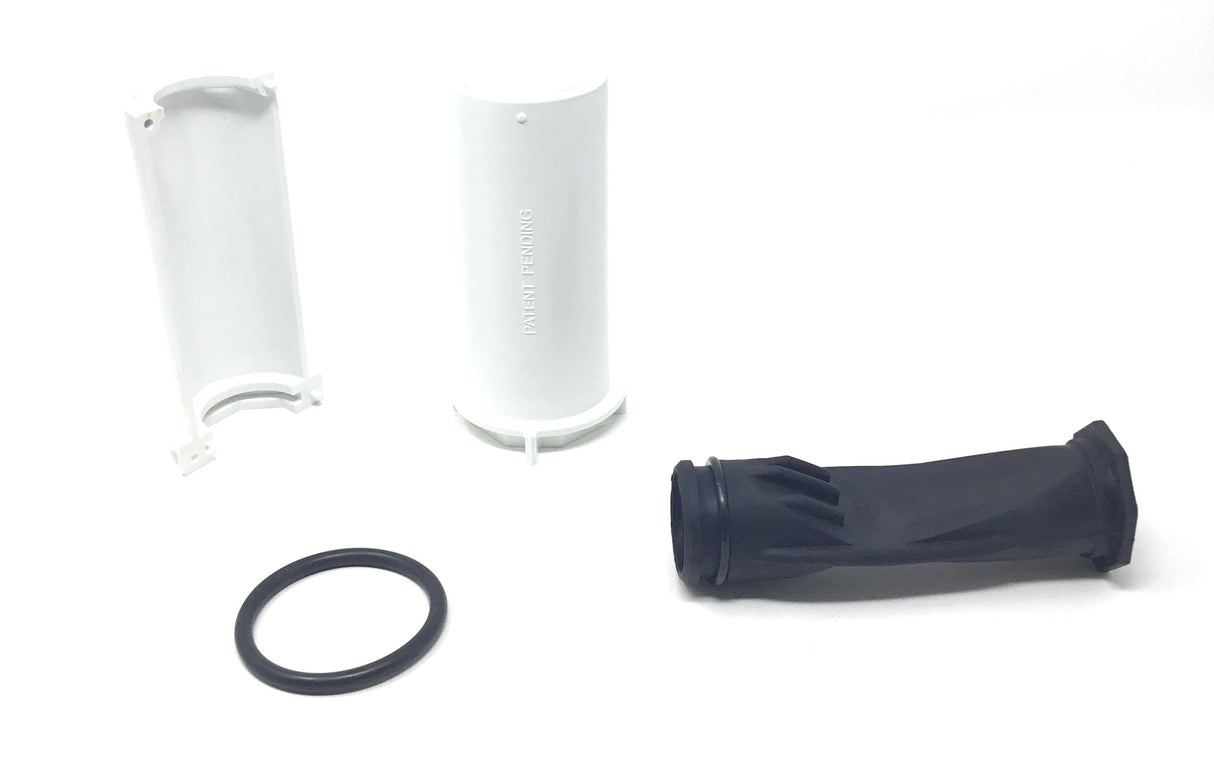

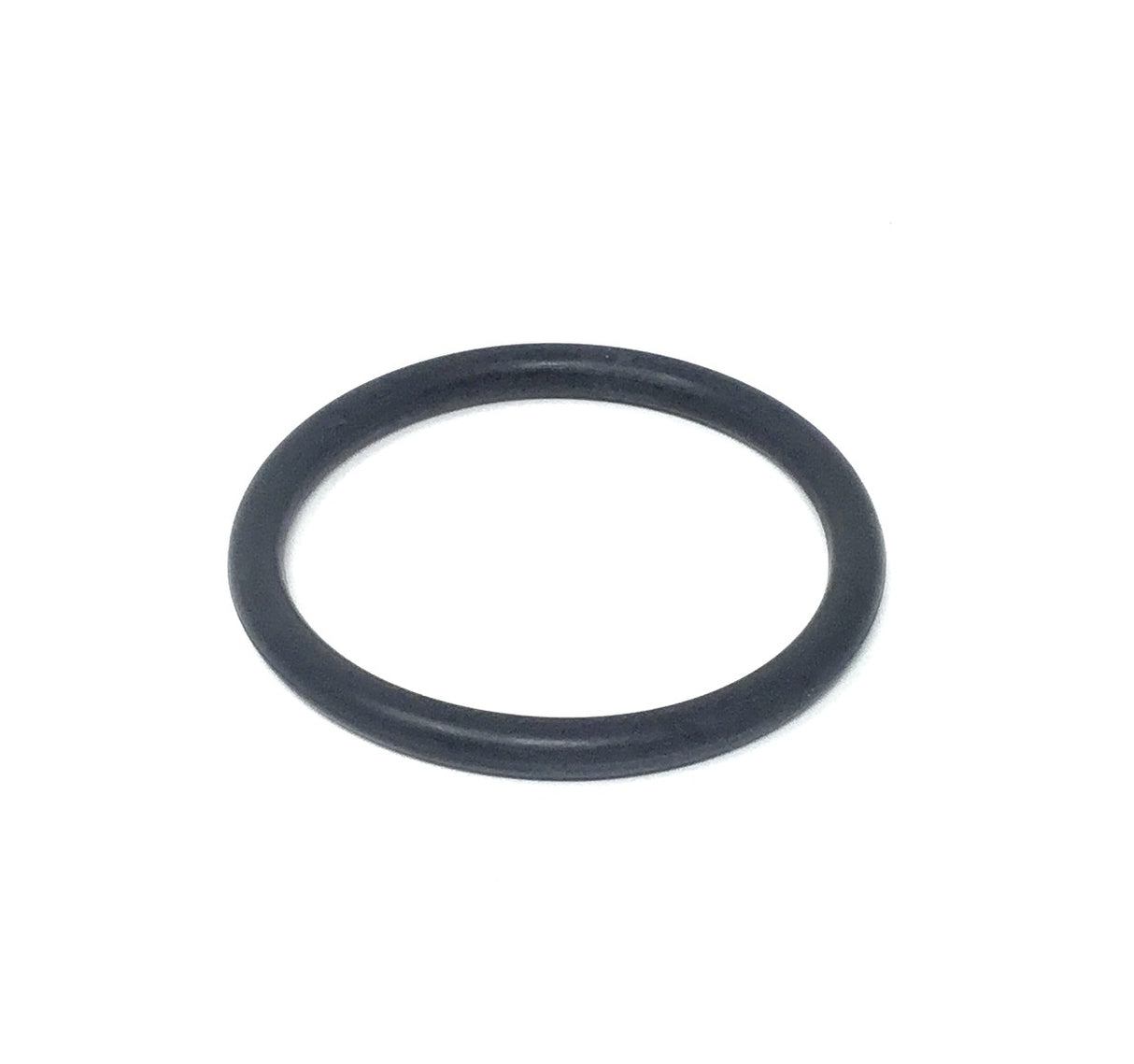

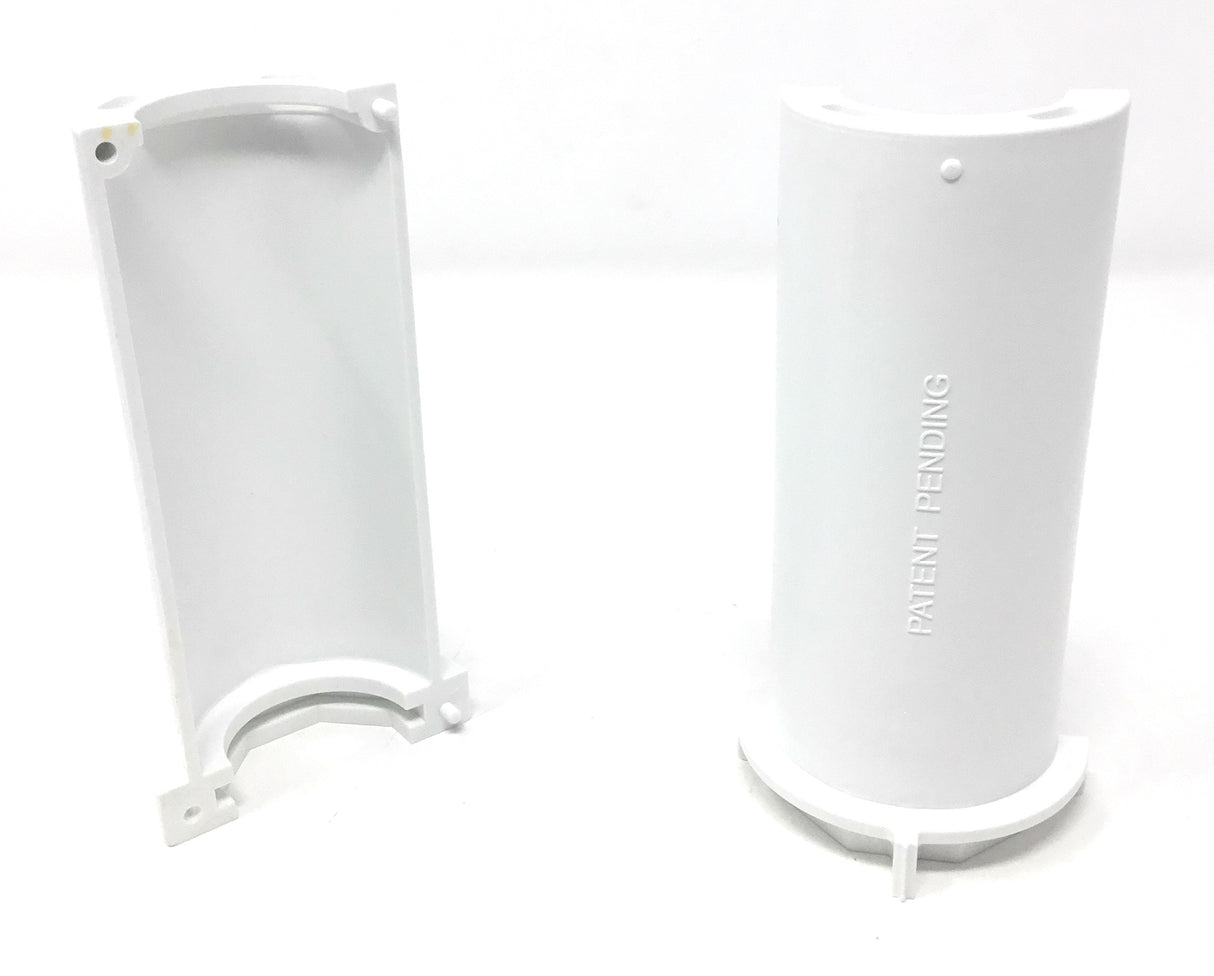

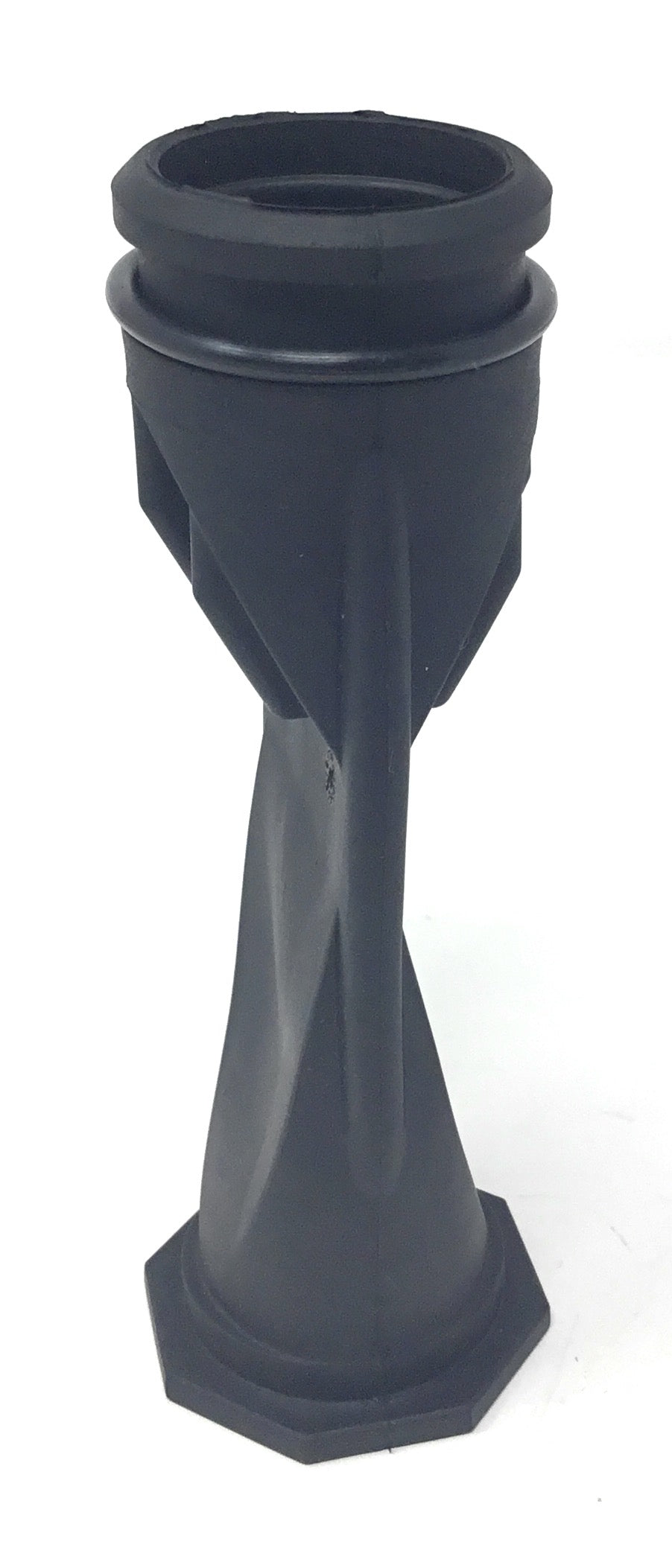

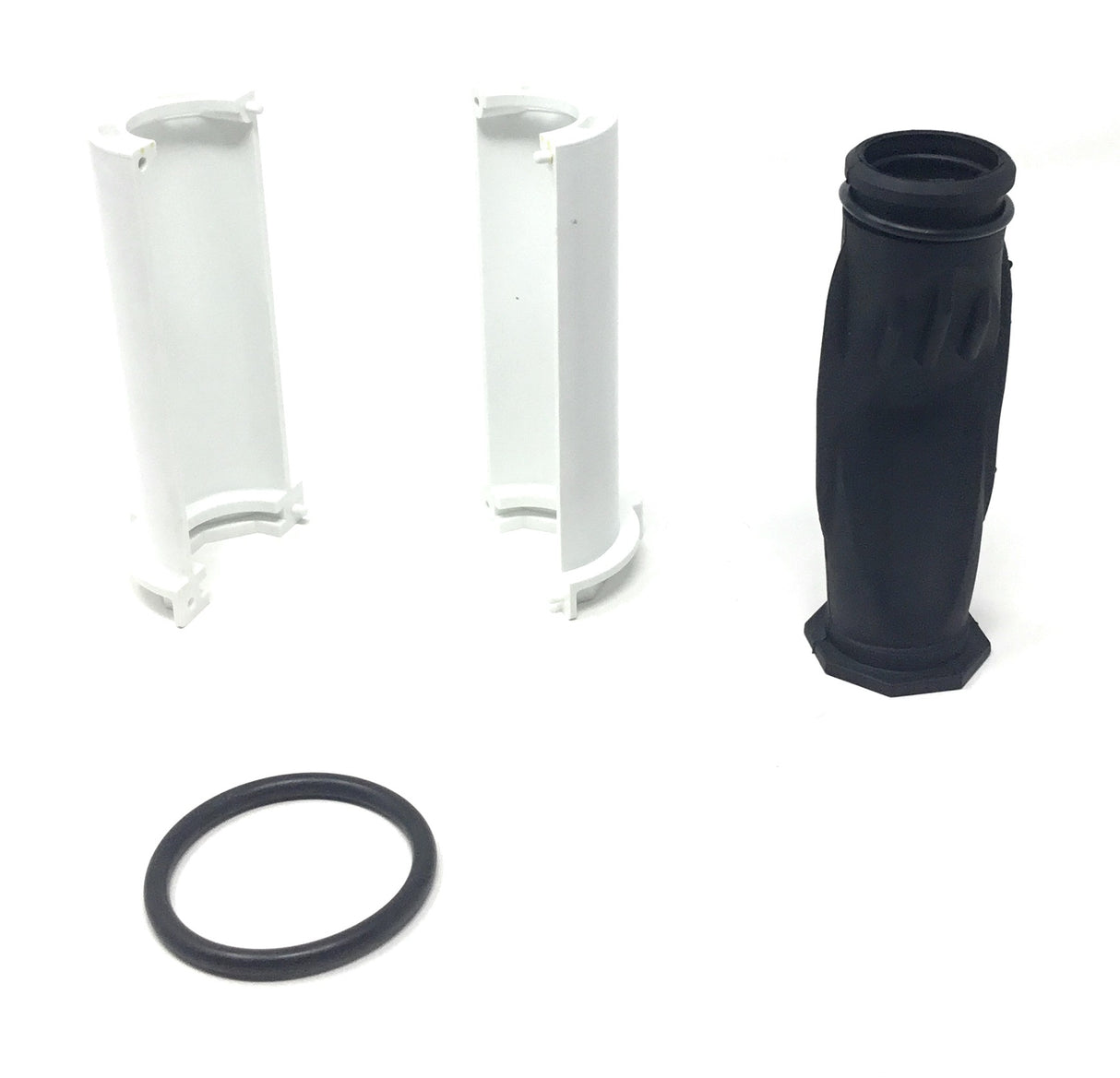

Match the exact assembly, part number and revision before ordering. Includes the cassette shell assembly and diaphragm; current merchant copy and photos also show its O-ring. Internal tube, outer cleaner body, retainer and complete cleaner are separate references.Compatibility
Delivery and Shipping
Delivery and Shipping
- FREE SHIPPING IN THE USA
- WORLDWIDE SHIPPING AVAILABLE
- 30 DAY RETURNS
Hayward DV4000 / DV5000 / KingRay Cassette Assembly with Diaphragm ...
Description
Description
Hayward | DCX105
DV4000 / DV5000 / KingRay Cassette Assembly with Diaphragm

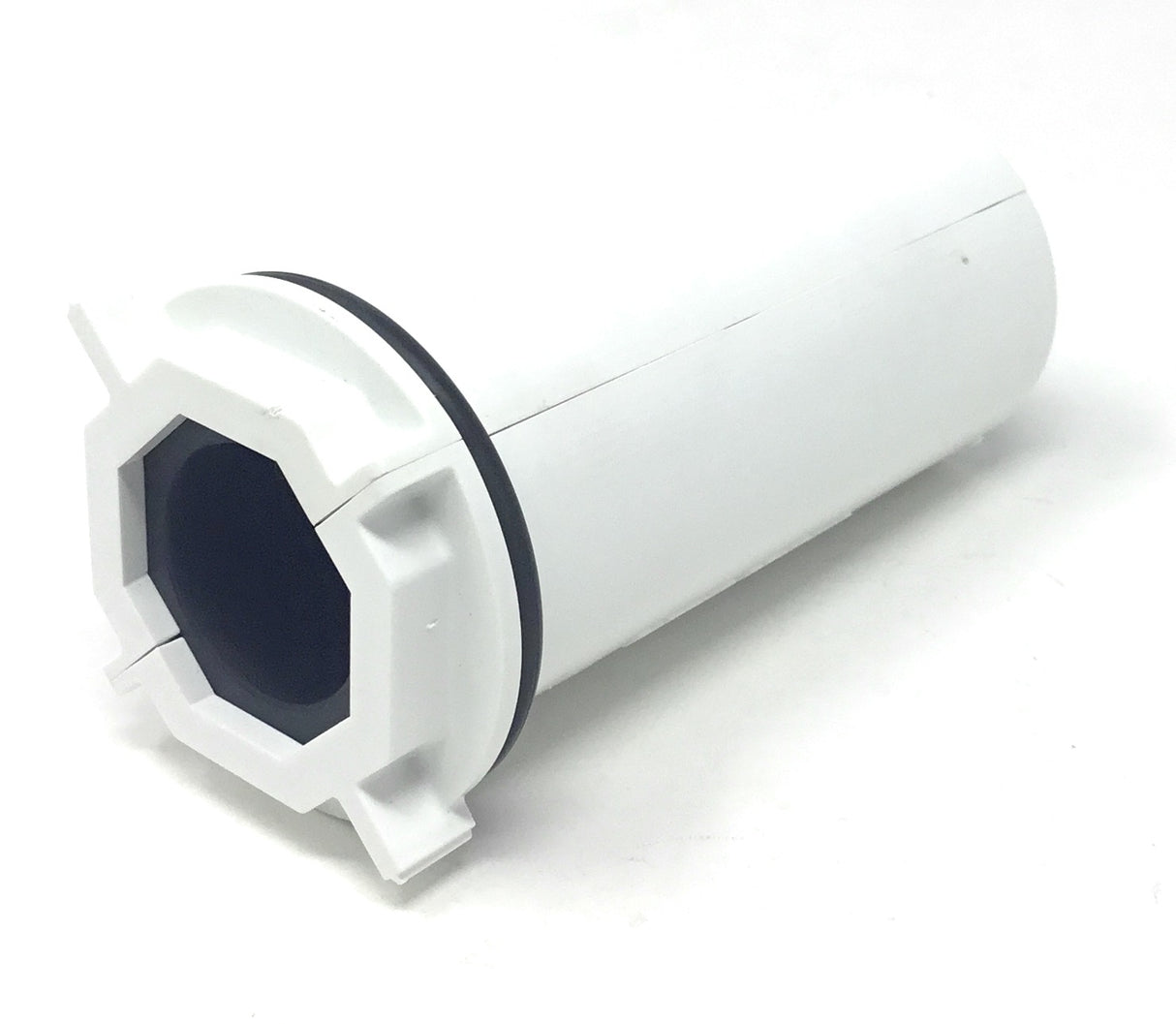

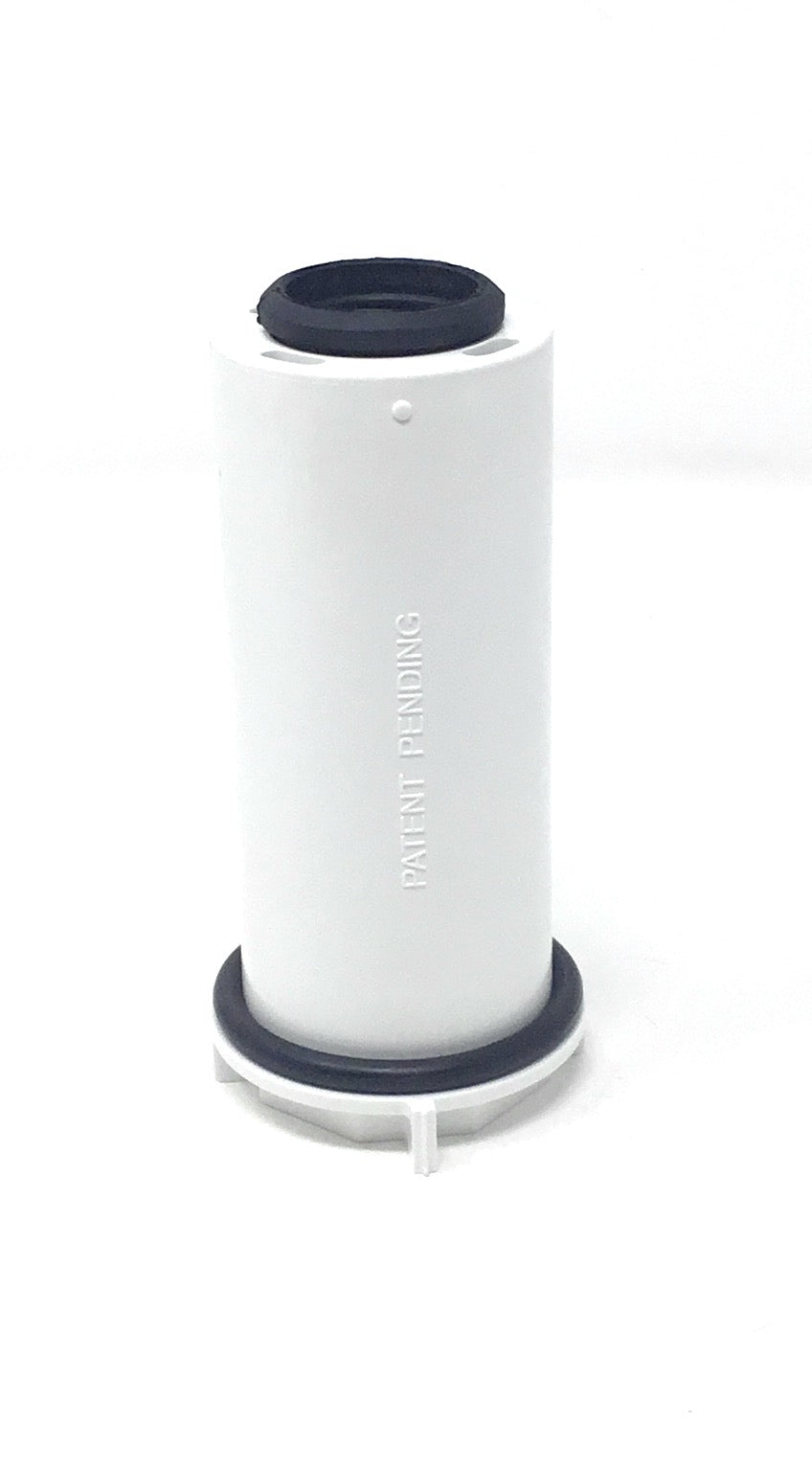

The Hayward DCX105 is the DV4000 / DV5000 / KingRay Cassette Assembly with Diaphragm. It is listed for Hayward DV4000 — manufacturer catalog configuration and 2 additional applications. Cassette assembly with diaphragm rather than the diaphragm-only service reference or the outer cleaner-body shells.
Before you order
Choose DCX105 for the assembly. Diaphragm-only reference DCX105C is separately listed; match the installed model and revision.
Check the exact part and model
Compare part number DCX105 with the diagram for your installed equipment. Match the model, finish, quantity and revision; a similar appearance or shared brand name does not establish interchangeability.
See Compatibility, Specifications, Resources & PDF Downloads and Product FAQs for product details and support references.
