Hayward DV4000 / DV5000 / KingRay Diaphragm | DCX105C
No. It is the separately listed diaphragm. The complete cassette assembly is DCX105. The manufacturer catalog lists DV4000, DV5000 and KingRay. The DV5000 owner manual also identifies DCX105C as item 9; match the installed revision. Use the linked DV5000 owner manual's diaphragm-service section and parts table. Check the exact model and required components before servicing.Product FAQs
Is DCX105C the complete cassette?
Which configurations list this diaphragm?
Where are replacement instructions?
Match the exact assembly, part number and revision before ordering. Diaphragm reference only. The complete cassette assembly DCX105 and internal tube DCX108 are separately identified parts.Compatibility
Delivery and Shipping
Delivery and Shipping
- FREE SHIPPING IN THE USA
- WORLDWIDE SHIPPING AVAILABLE
- 30 DAY RETURNS
Hayward DV4000 / DV5000 / KingRay Diaphragm | DCX105C
Description
Description

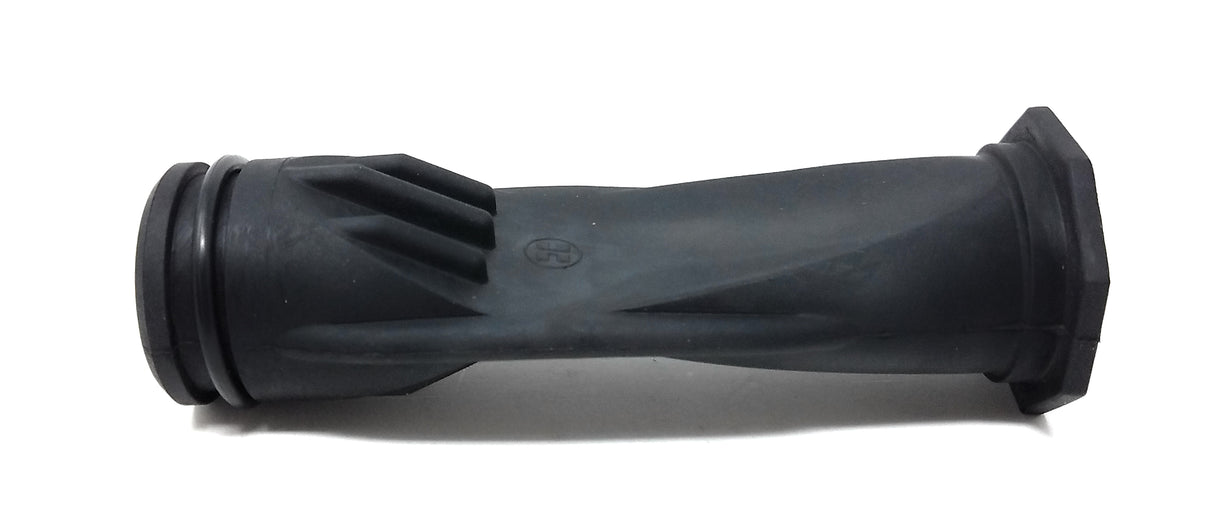

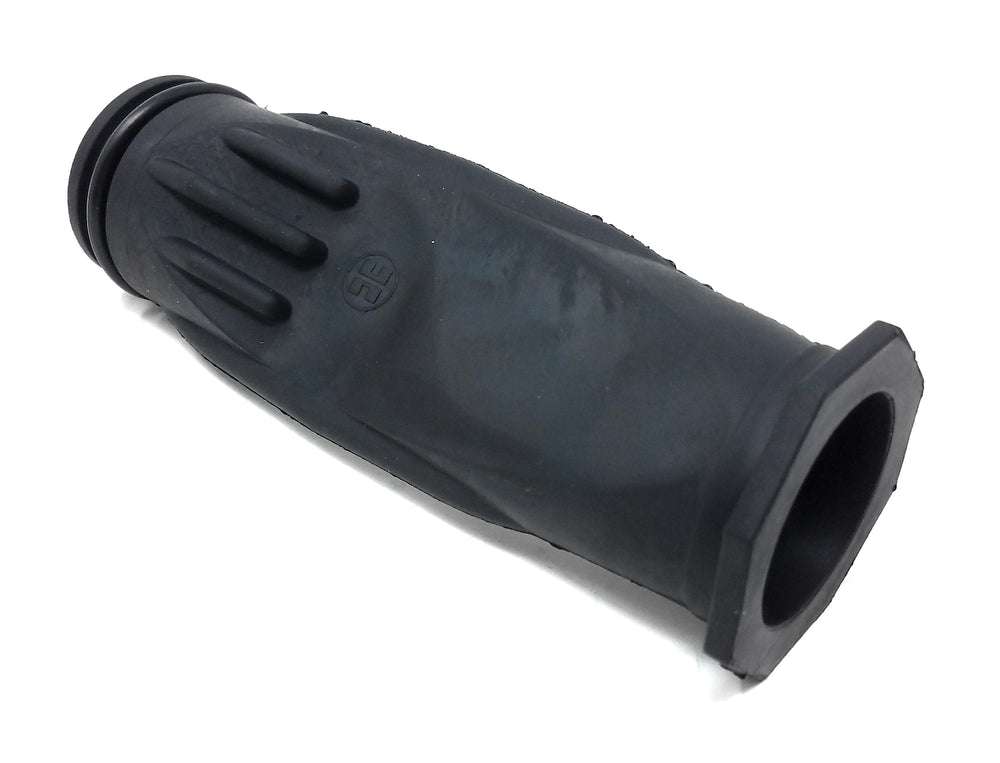

Hayward | DCX105C
DV4000 / DV5000 / KingRay Diaphragm
The Hayward DCX105C is the DV4000 / DV5000 / KingRay Diaphragm. It is listed for Hayward DV4000 — manufacturer catalog configuration and 2 additional applications. Diaphragm service part rather than the complete cassette assembly or outer body shells.
Before you order
Match DCX105C and the installed cleaner revision. Do not confuse the diaphragm-only reference with the assembly that includes it.
Check the exact part and model
Compare part number DCX105C with the diagram for your installed equipment. Match the model, finish, quantity and revision; a similar appearance or shared brand name does not establish interchangeability.
See Compatibility, Specifications, Resources & PDF Downloads and Product FAQs for product details and support references.
