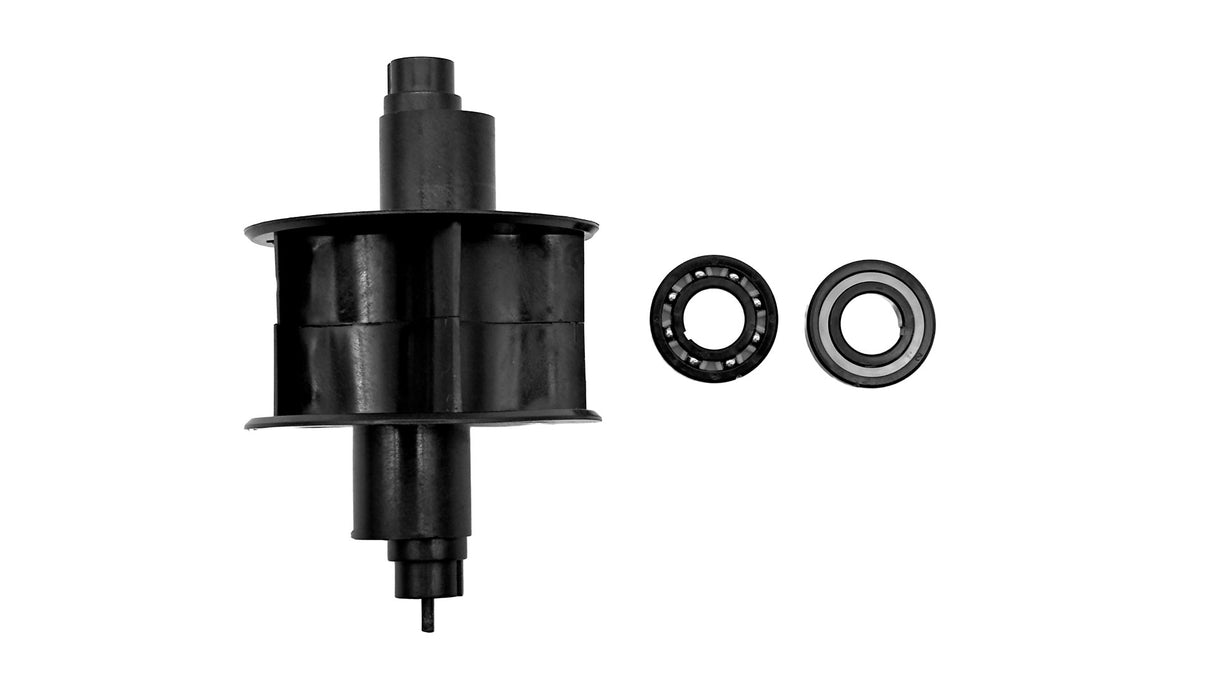

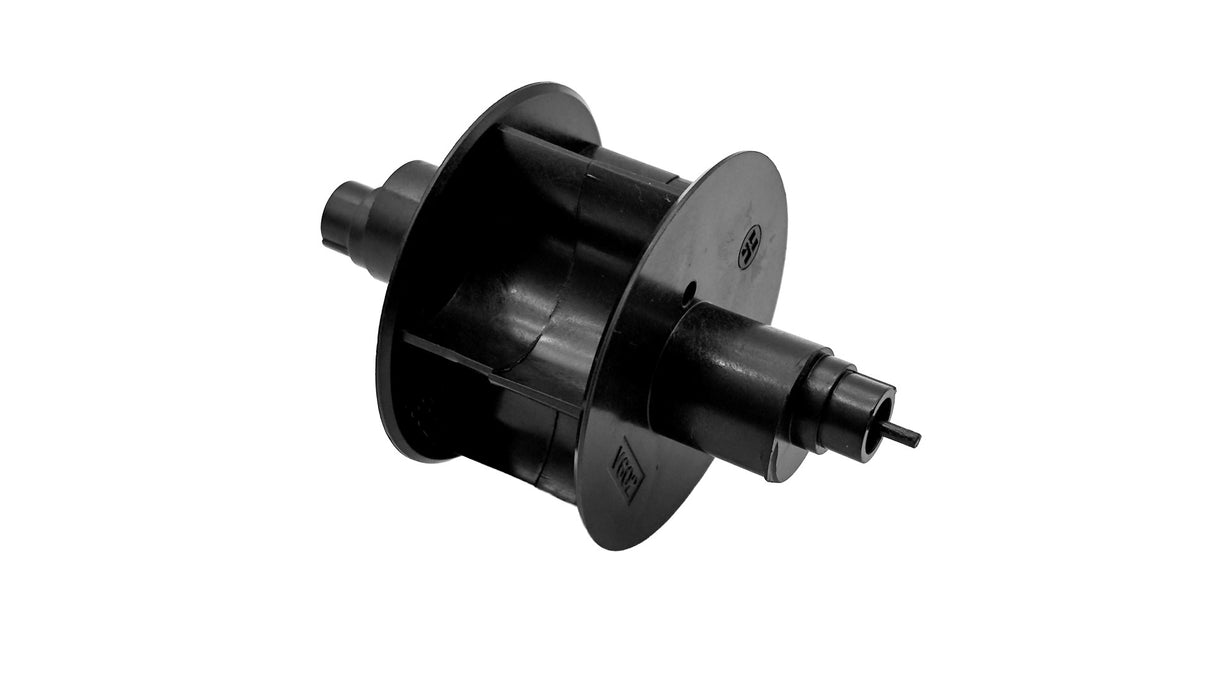

Hayward Navigator Pro/PoolVac XL Turbine Kit with Bearings (AXV602P)
The turbine kit with bearings are replacement parts made by Hayward. They used the same high-grade materials that were used to make the original factory parts. This makes them genuine OEM parts that all our customers can trust.

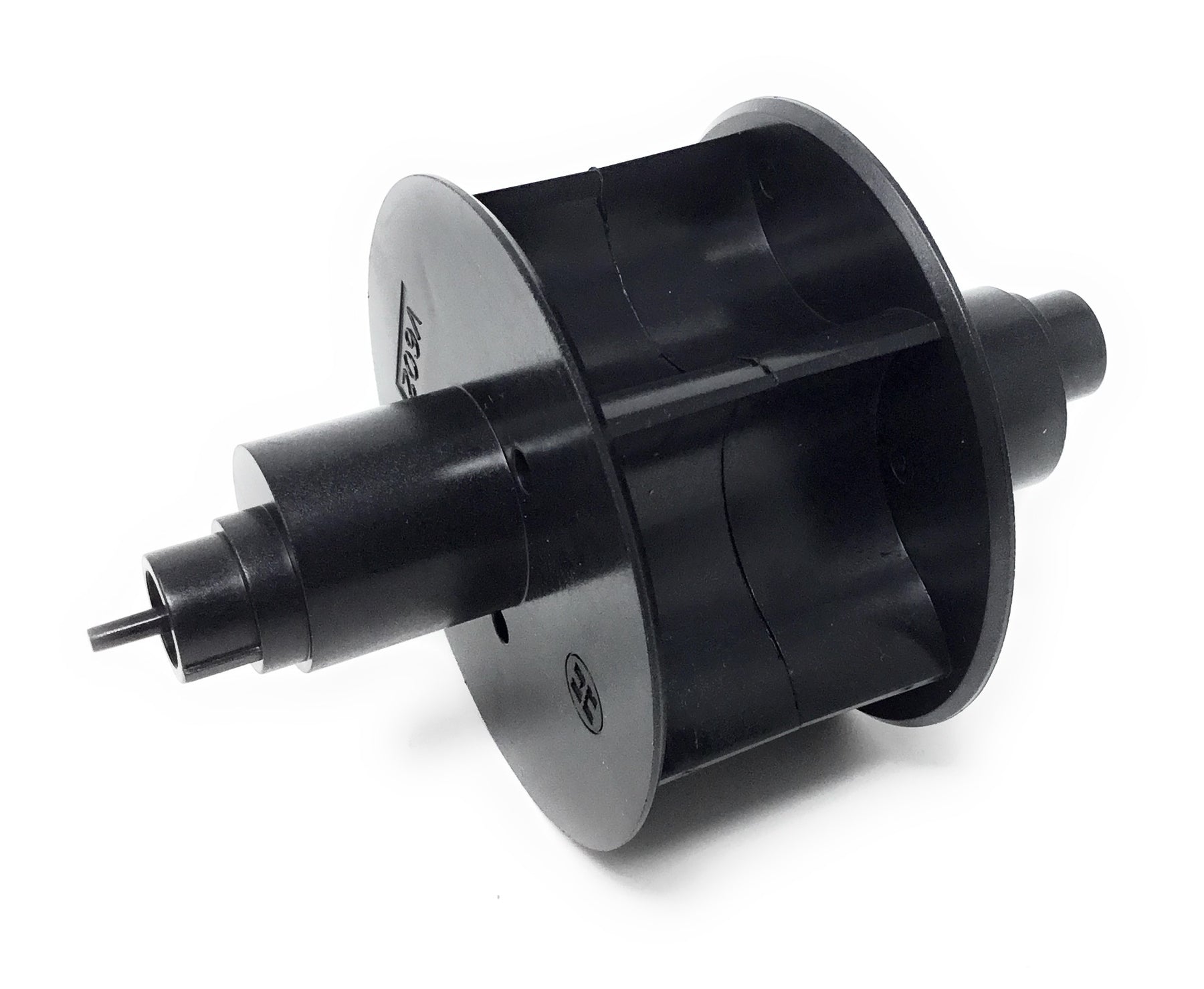

The turbine kit was created to be the operating mechanism that powers the cleaner’s ability to maneuver around the surfaces of the pool as it sucks and pulls dirt and debris which then disperses into the filtration system. As the turbine rotates it creates the motion needed for the a-frames to move back and forth in opposite directions which moves the pods and pod shoes the same way creating the pattern needed for the cleaner to move.

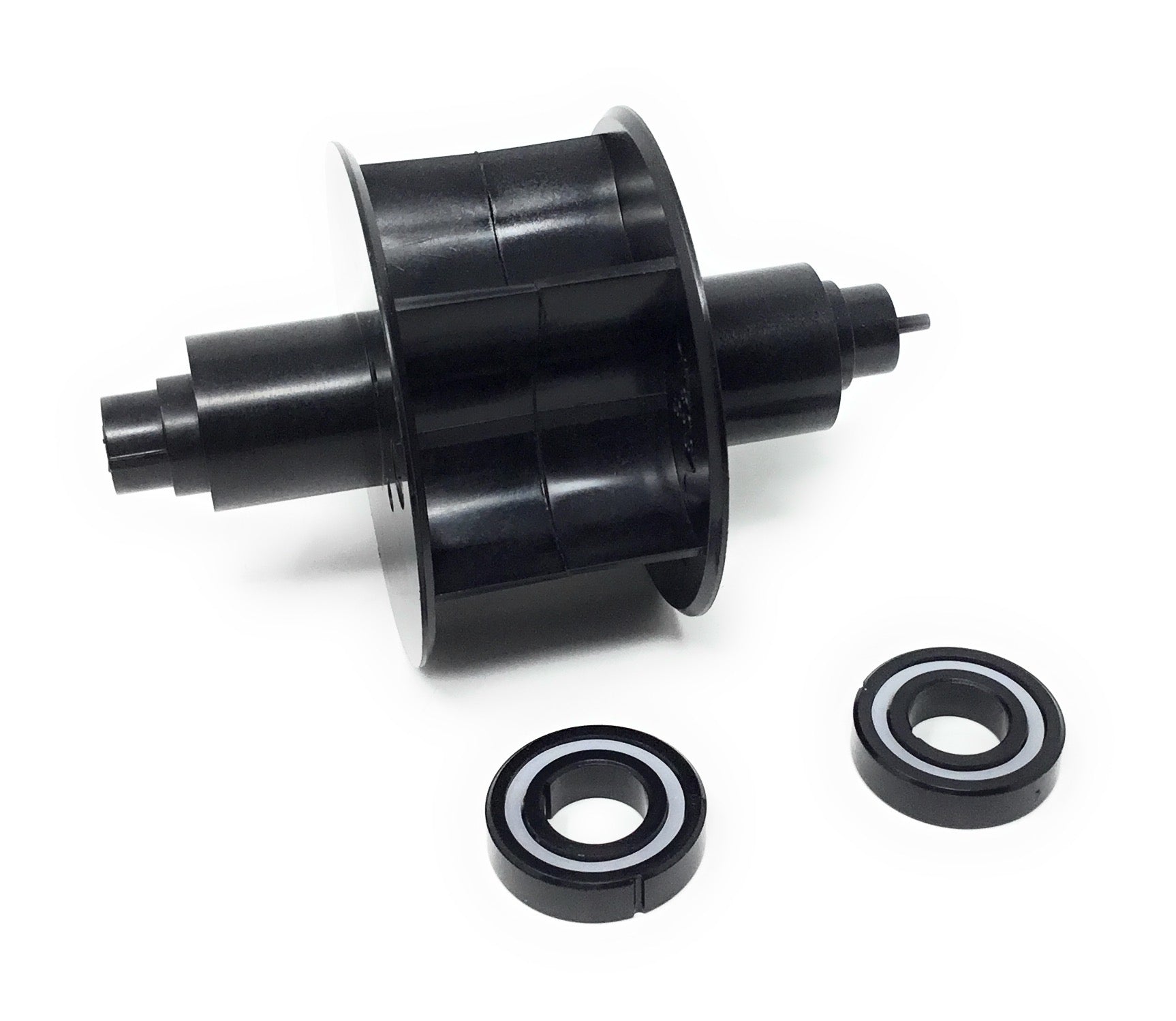

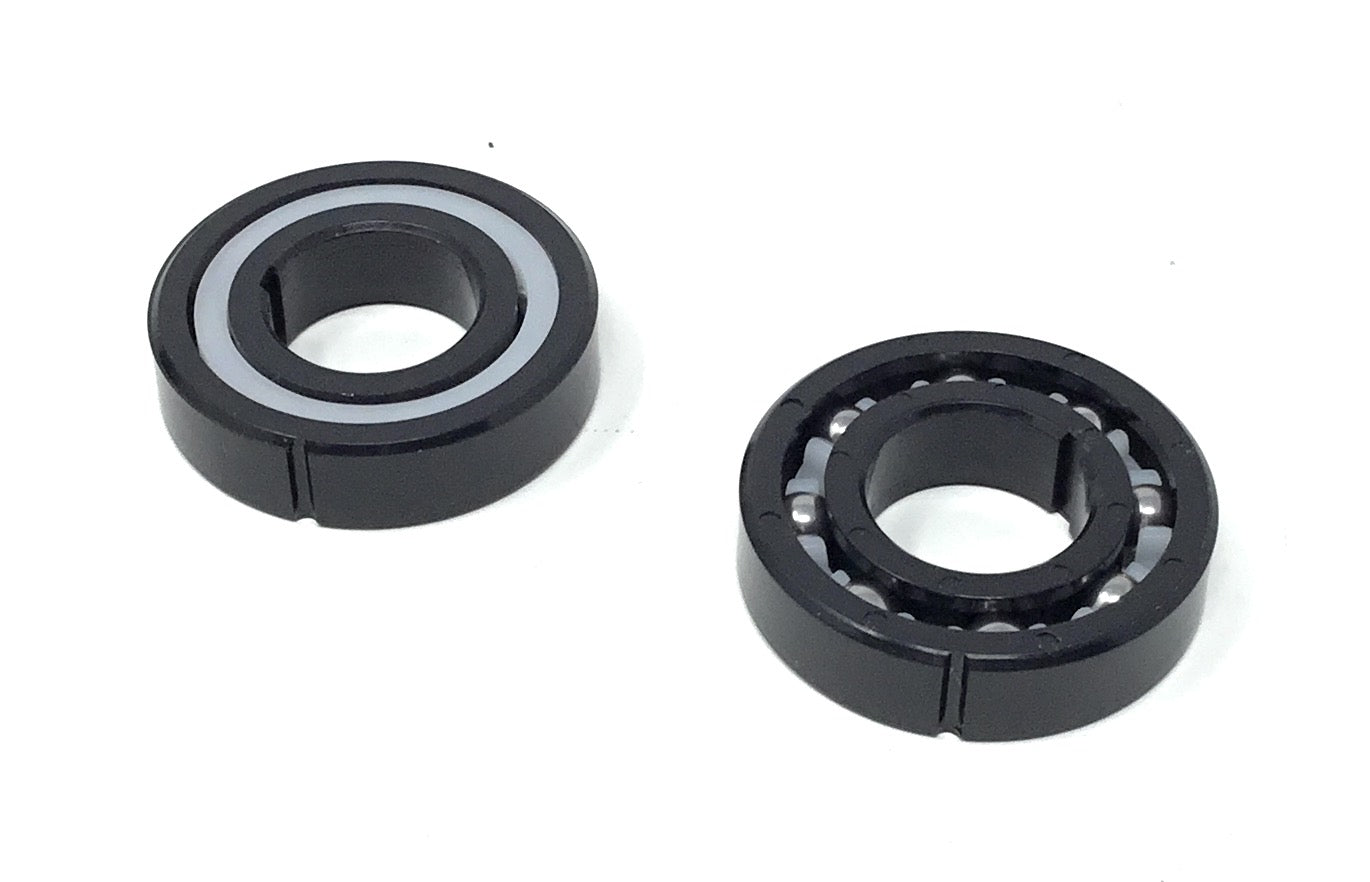

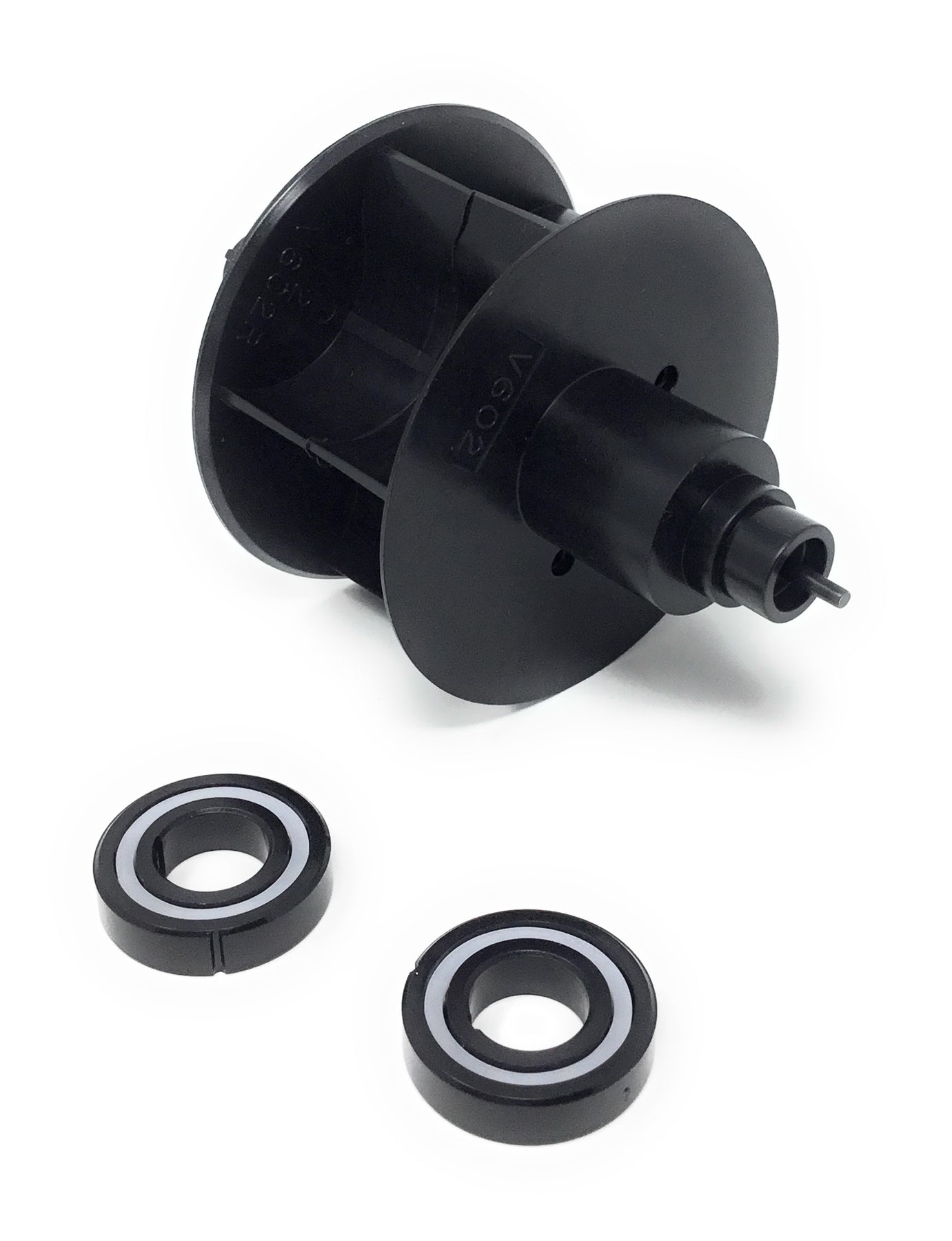

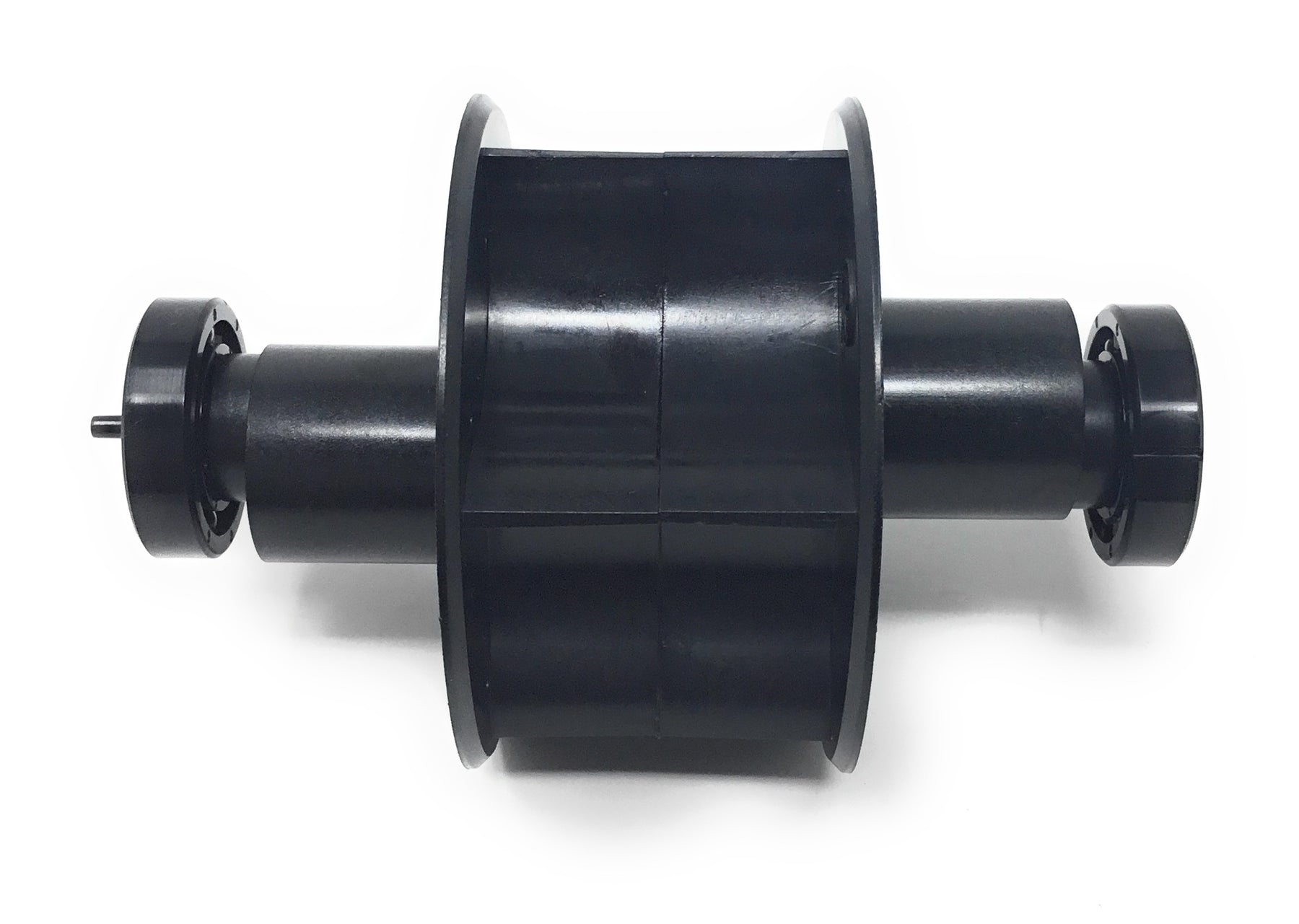

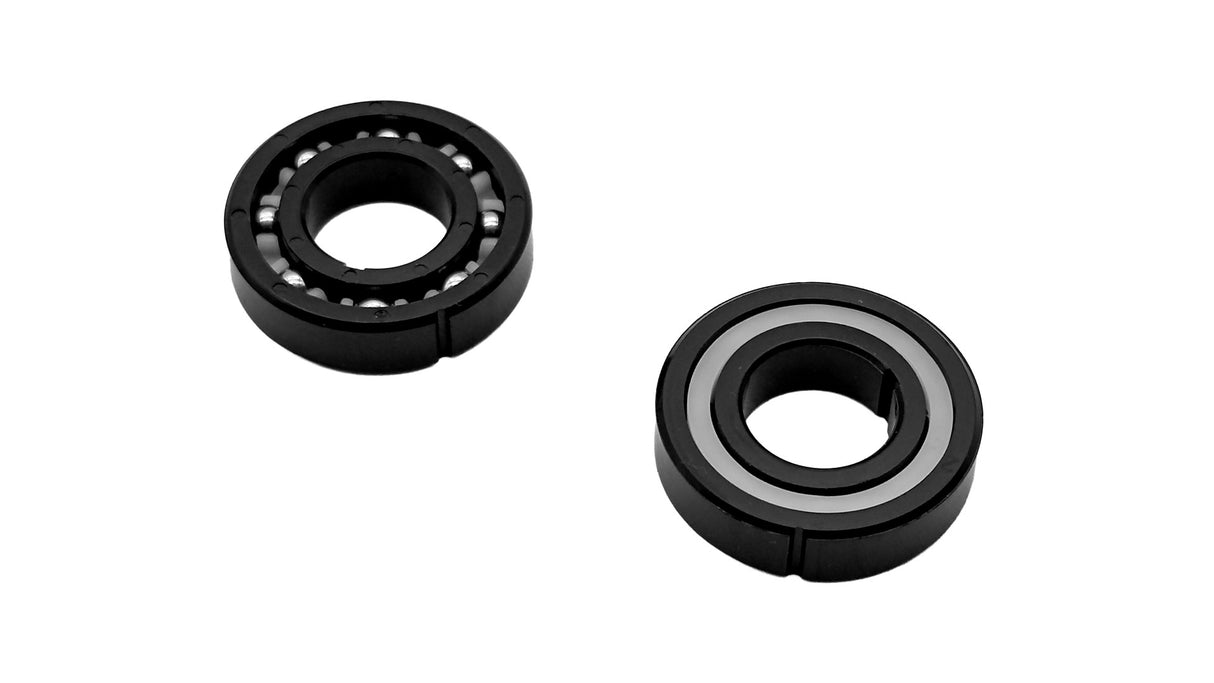

This part is black and comes with two same-colored bearings that aid in the movement of the turbine as well as the suction created by the hose and dedicated suction line it's attached to on the wall of the pool. The turbine rests into grooves that are on opposites sides of the lower middle body that holds the turbine in place, you want to make sure you have the turbine positioned correctly meaning the fans need to be facing the right way or else the cleaner will not operate correctly. This kit also comes with the two bearings included with its purchase.
