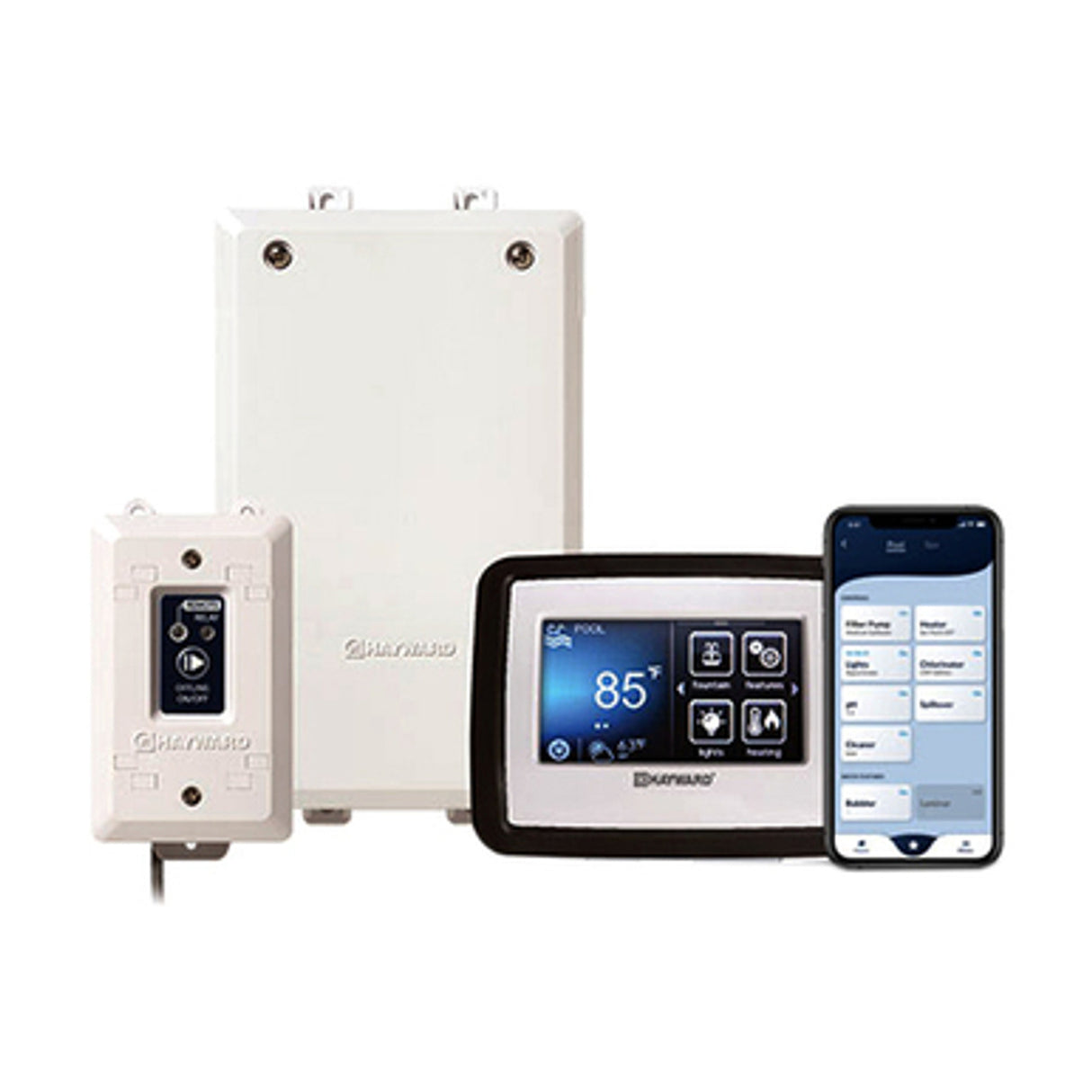

Hayward OmniHub Smart Pool & Spa Control w/ Display & Relay ~ Automation Hub | HLOMNIHUB
In-store pickup or delivery only
Call (602) 274-7946
Couldn't load pickup availability
- SKU: HLOMNIHUB
- UPC: 0610377379908
- Brand/Model: Hayward OmniHub Smart Pool & Spa Control
- Includes wiring base unit, external touch display, and 1 Smart Relay
- Built-in WiFi with OmniLogic app control and voice assistant support
- Supports up to 3 Smart Relays and 2 valve actuators
- Enclosure material: CPVC; approx. weight ~12 lb
OmniHub is Hayward's Expert Line automation hub for new or existing pools. It is designed to drop into a mixed pad of Hayward and third-party equipment and pull everything into one control path. For expanded control, add RS485 Smart Relays and valve actuators so OmniHub can manage extra pumps, cleaners and features from the same interface.
- Hayward Omni RS485 Smart Relay | HLH485RELAY
- Hayward Valve Actuator & Smart Relay Kit | HL485SPAKIT
Q: Will OmniHub work with my existing non-Hayward equipment?
A: In most cases yes. Standard pumps, heaters, and lights can be switched through Smart Relays, and many systems can be controlled at the relay or low-voltage level. Always confirm voltage and load ratings before wiring.
Q: Do I need internet for OmniHub to work?
A: The system will still run schedules and respond from the local display without internet. You need network access for app control, remote access, updates and voice assistant features.
Q: What if I need more than one relay?
A: HLOMNIHUB ships with 1 Smart Relay and supports up to 3 total. Add HLH485RELAY modules for extra pumps, lights or other loads you want on automation.
Call (602) 274-7946
Hayward OmniHub Smart Pool & Spa Control w/ Display & Relay...
Description
Description
Hayward OmniHub Smart Pool & Spa Control w/ Display & Relay | HLOMNIHUB
Hayward OmniHub smart pool and spa controller with display and relay. Add WiFi, app and voice automation to existing equipment. SKU HLOMNIHUB.
Features
- Smart automation upgrade for existing in-ground or above-ground pools and spas
- Includes wiring base unit, external touch control pad, and 1 Smart Relay
- Built-in WiFi with OmniLogic app control for iOS and Android
- Works with voice assistants like Amazon Alexa and Google Home
- 1 high-voltage Smart Relay, expandable to 3 for extra loads
- Controls up to 2 valve actuators for pool/spa mode, solar, or water features
- Compatible with Hayward and most other major equipment brands
Description
The Hayward HLOMNIHUB OmniHub is built for one job: turn a basic pad into a real smart system without ripping everything out. A dedicated wiring base handles both high and low voltage terminations for pumps, lights, heaters and relays, while the wall-mounted touch display gives you on-pad control even if WiFi drops. Once it is online, the OmniLogic app and voice integration let you run filtration, temperature, lights and features from your phone or smart speaker instead of walking to the equipment every time.
OmniHub ships with one Smart Relay and supports up to three total, plus two valve actuators. It also ties in cleanly with AquaRite salt systems and Hayward variable-speed pumps, and can talk to many third-party components when they are wired through Smart Relays. If you want modern automation on an older pad, this is the control to start with.
Pro Tip
Plan the relay and valve layout before you mount the base. Use extra Smart Relays (HLH485RELAY) and the HL485SPAKIT actuator kit for booster pumps, additional VS pumps or water features so everything lands on the OmniHub from day one instead of being patched later.
Technical Specifications
| SKU | HLOMNIHUB |
| UPC or GTIN | 0610377379908 |
| Brand | Hayward |
| Model | OmniHub Smart Pool & Spa Control |
| Product Type | Smart pool & spa automation control with display and relay |
| Size / Connection | Wall-mounted control/display and wiring base; high/low-voltage screw terminals; supports up to 3 Smart Relays and 2 valve actuators |
| Materials | CPVC enclosure with electronic control components |
| Power Source | Hardwired to pool equipment power (high-/low-voltage connections per Hayward wiring diagram) |
| Compatibility | Hayward and most major pool equipment brands; integrates with AquaRite salt systems, Hayward VS pumps, Pentair Intelliflo (via board), lights, heaters and water features |
| Dimensions/Weight | Dimensions: N/A; Approx. weight: ~12 lb (shipping) |
| Warranty | Expert Line product; 3+ year parts and labor when sold/installed per Hayward program terms (see Hayward) |
