Hayward Top Elbow Assembly S360 || SX360CD1FWS

Hayward  |  SKU: SX360CD1FWS
$10495 USD $14999

Delivery and Shipping

  • FREE SHIPPING IN THE USA
  • WORLDWIDE SHIPPING AVAILABLE
  • 30 DAY RETURNS
  • UPGRADED | EXPEDITED SHIPPING AVAILABLE

Resources & PDF Downloads

Description

Hayward Top Elbow Assembly S360 || SX360CD1FWS

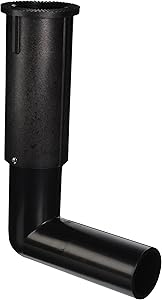

Hayward Top Elbow Assembly S360 – SX360CD1FWS

SKU: SX360CD1FWS
UPC: 0610377447256
Brand: Hayward
Sold by: ePoolSupply.com

Restore optimal flow and filtration efficiency in your Hayward ProSeries Plus S360 sand filter with the Hayward Top Elbow Assembly (SX360CD1FWS). This genuine OEM replacement part is engineered for precise fit and function, directing water flow from the multiport valve to the internal lateral system. Made from durable, corrosion-resistant materials, it is a critical component for proper system performance and extended filter life.


🔧 Key Product Features:

  • Authentic Hayward OEM Replacement: Designed specifically for the ProSeries Plus S360 sand filter system.

  • High-Efficiency Flow Path: Maintains proper hydraulic performance during filtration and backwash cycles.

  • Heavy-Duty Construction: Molded from UV-stable, high-impact thermoplastics for outdoor durability.

  • Secure, Leak-Resistant Design: Engineered for a watertight connection to the top diffuser pipe and valve.

  • Easy to Install: Built to fit seamlessly without modification or special tools.


📦 Product Specifications:

  • Part Number: SX360CD1FWS

  • UPC: 0610377447256


📜 Product Background:

The Hayward SX360CD1FWS Top Elbow Assembly is an essential plumbing connection in the ProSeries Plus line, specifically for the S360 sand filter. It channels water from the valve into the top diffuser and lateral assembly, supporting both the filtration and backwash processes. As one of the most critical internal flow components, damage or wear to this elbow can lead to pressure loss or system failure. Replacing it with a genuine Hayward part restores the filter to factory-grade performance and reliability.


🛠️ Installation Tips & Tricks:

  1. Turn Off Power to the Pump: Always shut off the pool pump and disconnect power at the breaker box.

  2. Depressurize the Filter System: Open the air relief valve or filter drain plug to safely release pressure.

  3. Remove the Multiport Valve: Loosen unions or flange bolts and carefully lift off the valve to access the elbow.

  4. Disconnect the Existing Elbow: Gently pull the top elbow from the diffuser pipe, checking for cracks or debris.

  5. Inspect and Lubricate O-Rings: Replace worn O-rings and apply a silicone-based lubricant for best results.

  6. Install New SX360CD1FWS Assembly: Align and press into place, ensuring a snug, leak-free connection.

  7. Reassemble and Test: Reconnect the valve, restart the system, and check for leaks or pressure irregularities.


✅ Why Buy from ePoolSupply.com?

  • 100% Authentic Hayward OEM Parts – Never aftermarket

  • Expert customer service from pool professionals

  • Fast shipping & real-time inventory

  • Trusted by homeowners and service techs nationwide


Keep your Hayward S360 filter running at peak performance with the OEM SX360CD1FWS Top Elbow Assembly — available now at ePoolSupply.com for fast shipping and expert support!
