Hayward TriVac 700 Valve Kit (TVX7000VA)
The valve kit is a group of replacement parts that are made by Hayward. They used the same high-grade materials that were used to make the original factory parts. Making them genuine OEM parts that all our customers can trust.
The valve kit is half of the two main components that help to create the aqua drive system that powers the unit and allows the cleaner to move around the surfaces of the pool while it cleans. It works with the timer kit which is responsible for shutting off the skim thrust jet (on the rear of the cleaner) directing this flow to the front jet creating the backup ability to keep the cleaner out of trouble areas. it also has a switch that rises up through the center of the top assembly that allows you to switch it from bottom skimming mode to top skimming mode. from there it can sweep away leaves and debris littered across the top layer of water, essentially eliminating the need to manually skim the pool.

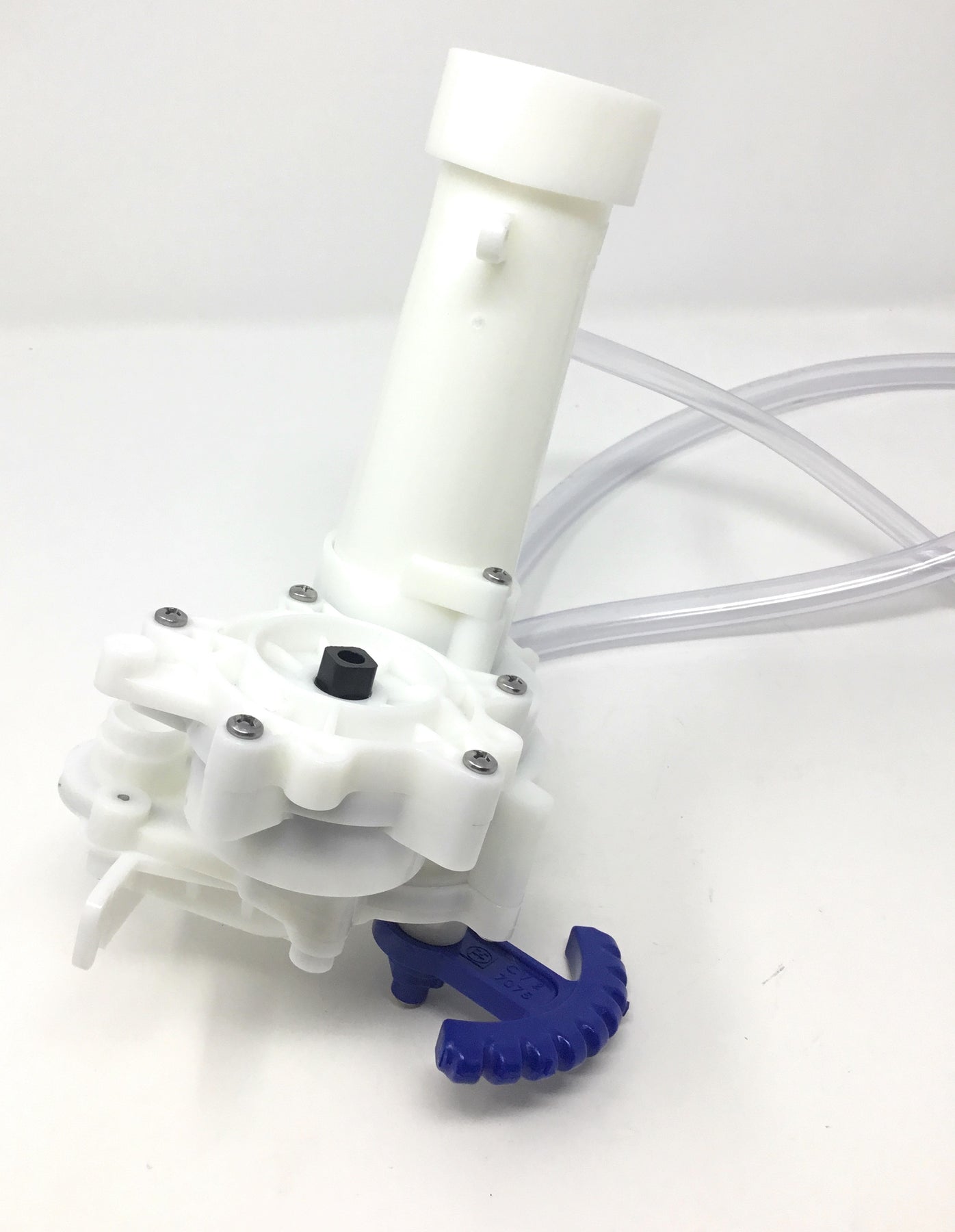

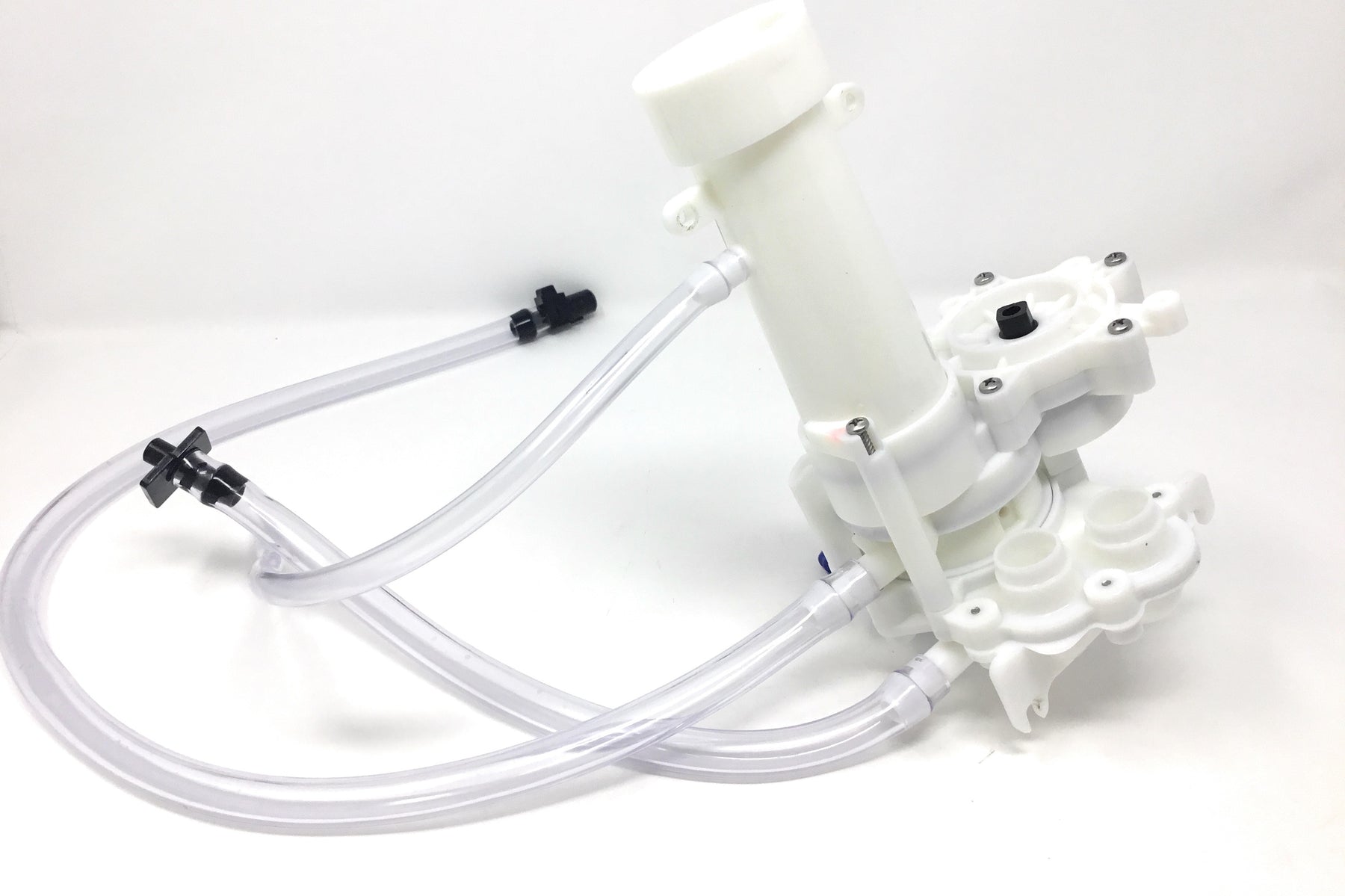

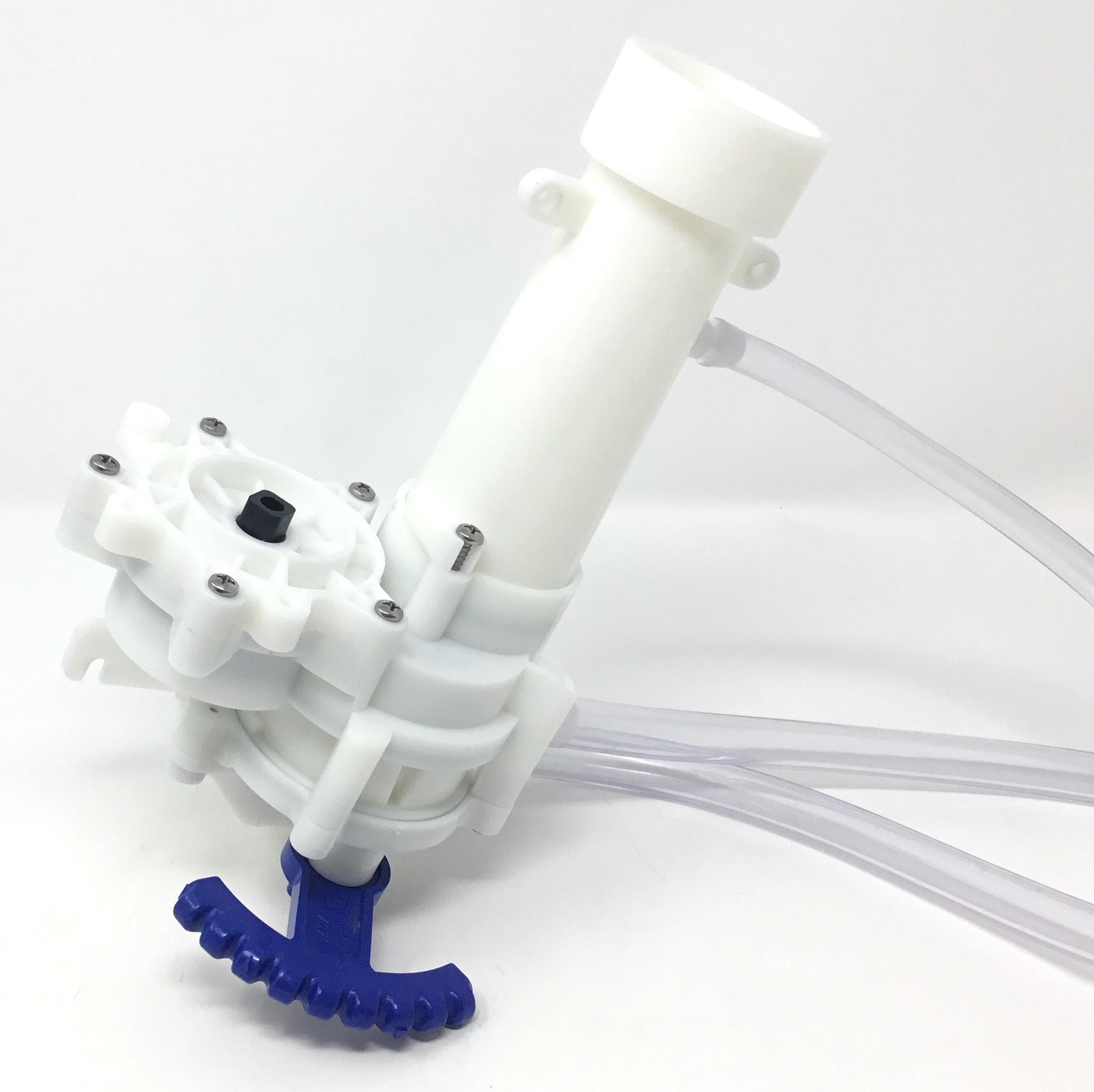

This part is an off-white color matching that of the timer valve both of which can be found in the center of the cleaner and makes up the majority of the cleaner’s internals pieces. You can access these parts by removing the top assembly which will expose these parts for maintenance and or replacement.
