Pentair IntelliFlo3 VSF 1.5HP Pool Pump with Touchscreen | 011067

Pentair | SKU: 011067 | Barcode: 788379888305

In-store pickup or delivery only

Call (602) 274-7946

Ships to

1.5 THP | 9.4 WEF | 115/208/230V

NEW MOTOR, DRIVE, AND HYDRAULICS

Product FAQs

Which controls come with 011067?

Touchscreen included; relay/i/o board optional. The Pentair Pool app provides supported pump setup and control. Remote access requires the applicable wireless/network setup.

Which electrical supply does this pump need?

115/208–230 VAC, single-phase, 50/60 Hz. Have a qualified professional follow the nameplate, wiring, grounding, bonding and protection requirements.

What plumbing connections are supplied?

1.5-inch internal-slip / 2-inch external-slip unions. Match plumbing centerlines and clearances before choosing a replacement.

How does regulated flow work?

The pump adjusts speed to maintain a configured flow setting within its operating range. The installer must choose settings that meet filtration and connected-equipment requirements; it does not automatically determine every pool’s needs.

What does the relay board do?

The board is an optional accessory for this model. Its two relays switch suitable equipment within the 5 A and 16 A limits. Digital inputs support external program selection. It does not convert voltage or replace a required sanitizer power supply.

What warranty applies?

Coverage depends on purchase route, application, professional installation and Pentair’s current terms. Review the linked warranty information before purchase; do not assume dealer-installed coverage applies to an online transaction.

Call (602) 274-7946

Where to Buy

Resources & PDF Downloads

IntelliFlo3 / IntelliPro3 Installation & Maintenance — Rev. F (April 2026)

User's Guide

IntelliFlo3 / IntelliPro3 Installation & Maintenance — Rev. F (April 2026)

Description

PENTAIR · 011067

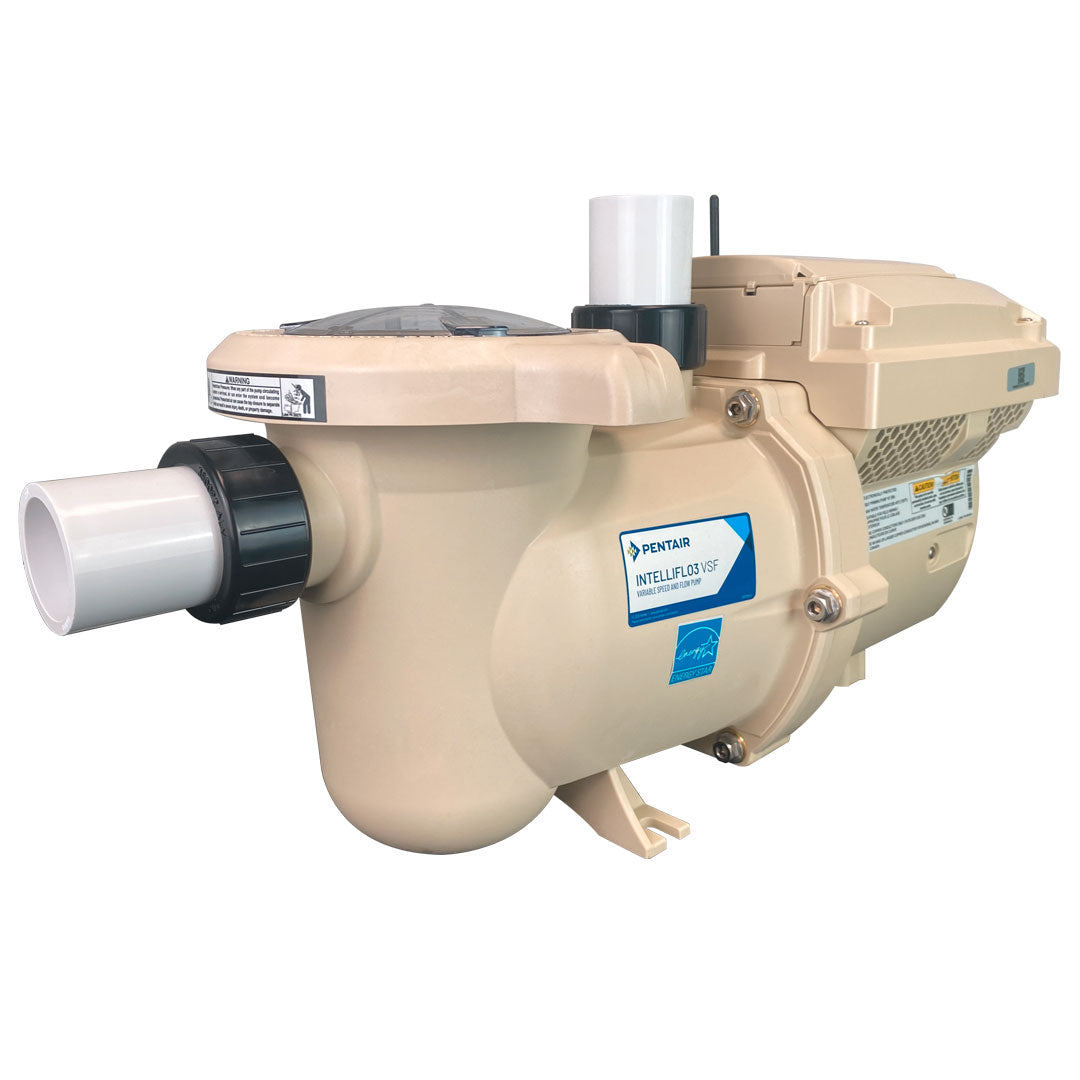

IntelliFlo3 VSF 1.5 HP Variable Speed and Flow Pump

Pentair 011067 combines adjustable speed and regulated flow for pool circulation. This exact 1.5 THP configuration has touchscreen included; relay/I/O board optional.

Regulated circulation

Choose speed or flow programs for the actual pool and connected-equipment requirements.

Your control configuration

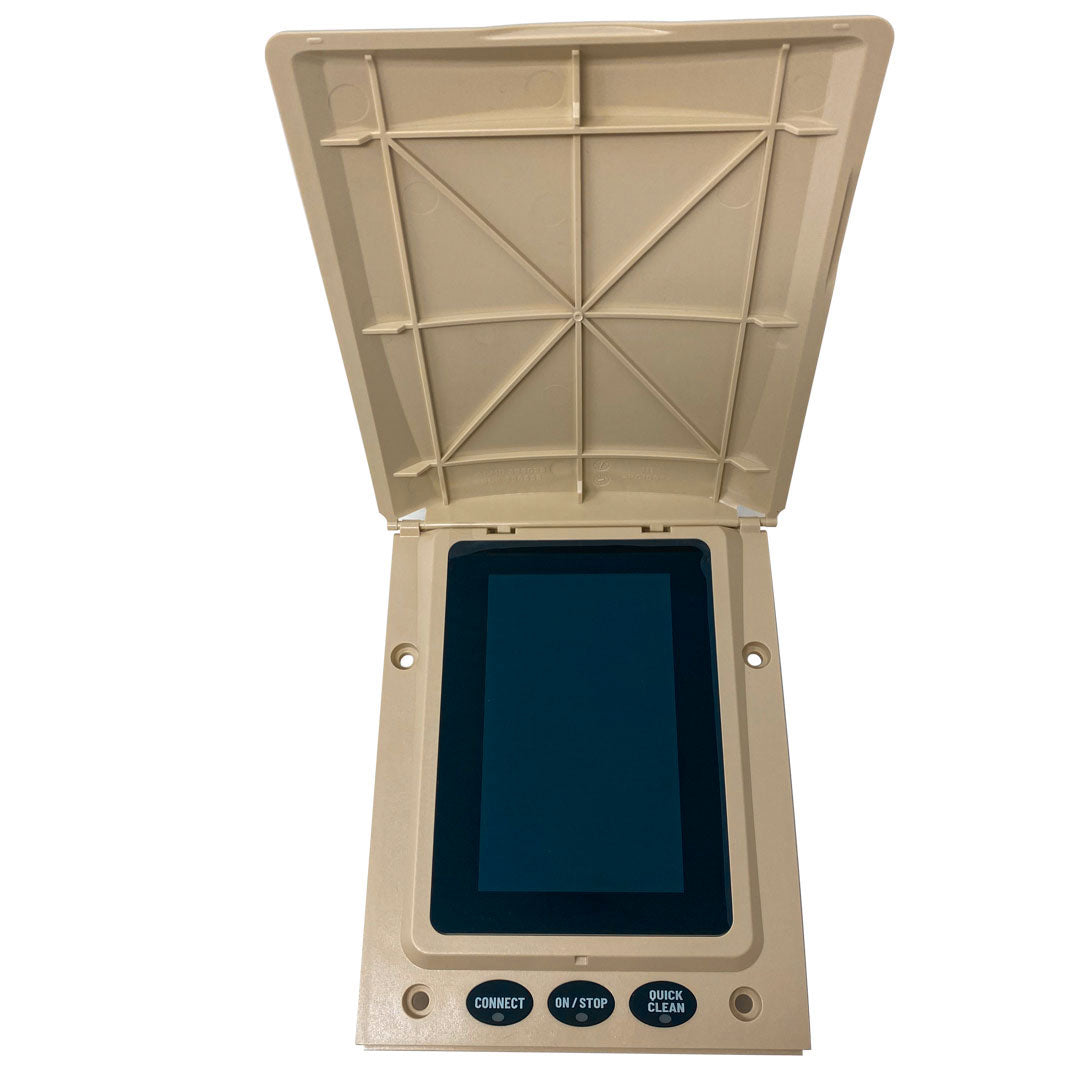

touchscreen included; relay/I/O board optional.

Service information

Use the exact horsepower-specific parts diagram and keep the basket and equipment area accessible.

Check fit before ordering

Have the installer match the performance curve, 115/208–230 V supply, plumbing and service clearance. Accessory equipment control requires the optional relay board and suitable wiring. Purchase route and professional-installation requirements affect warranty coverage.

Use a qualified pool professional for service. Disconnect electrical power and relieve system pressure as the pump manual requires before opening equipment.

See Specifications for part details and Resources & PDF Downloads for the manufacturer reference.

Specifications

SKU

011067
UPC or GTIN

788379888305
Product Type

Pool Pump
Size/Connection

1.5 THP; WEF 9.4; 115/208–230 VAC, single-phase, 50/60 Hz; input current 12/6.4–5.9 A; 400–4000 RPM; maximum input 1350 W; 1.5-inch internal-slip / 2-inch external-slip unions; touchscreen included; relay/I/O board optional.
Dimensions

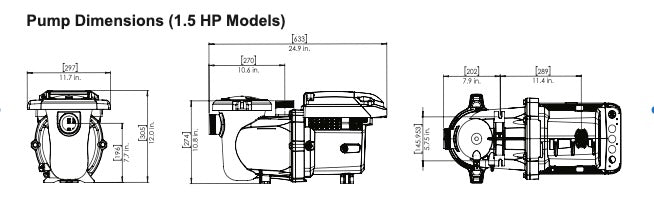

24.9 in, 11.7 in, 12 in
Weight

48 lb
Warranty

Pentair Warranty

Product Warranty

We want you to have quick and easy access to warranty information for all the brands we carry. Please click on the links below to view each manufacturer’s warranty page:

Note: Warranty coverage, registration, and service terms are provided directly by the manufacturer. Please review the details carefully to ensure proper understanding of coverage and claim procedures.
