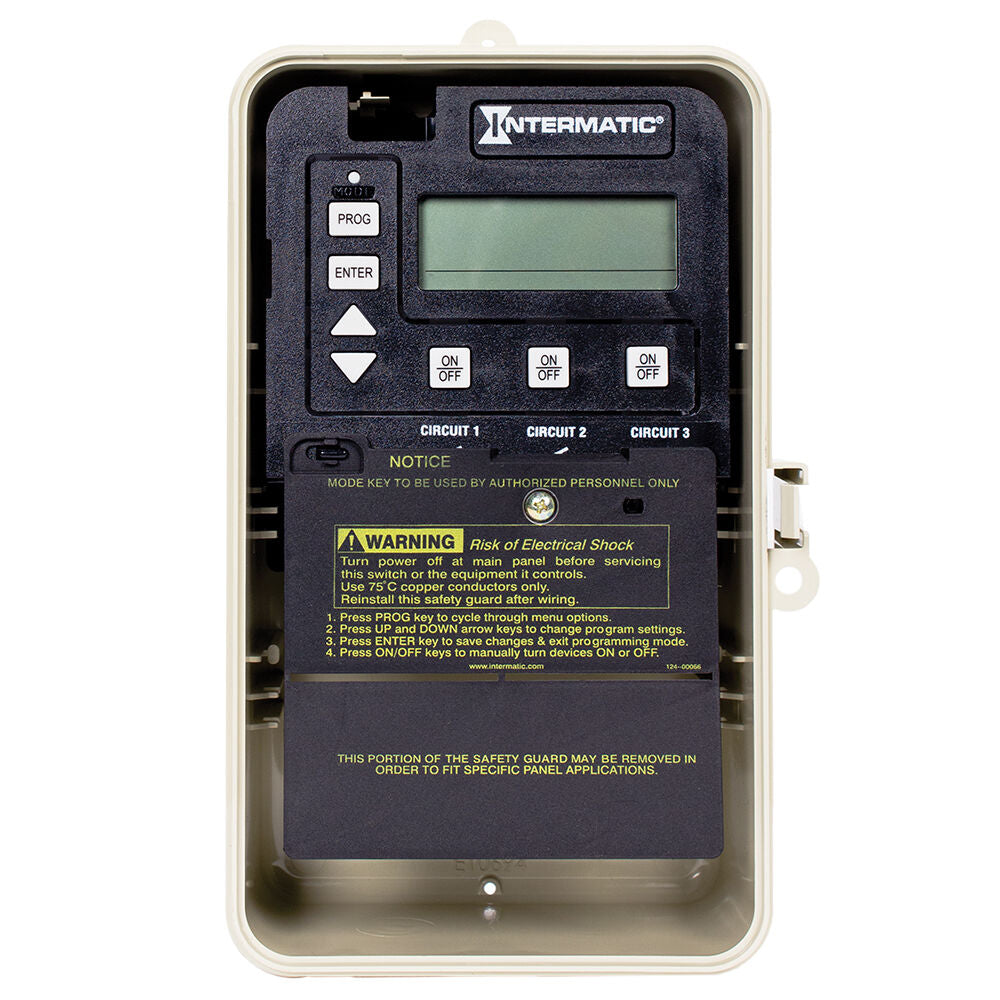

Intermatic 24-Hour Electronic Time Control | PE153PF

Intermatic 24-Hour Electronic Time Control, 3-Circuit, Freeze Protection Probe, Type 3R Plastic Enclosure

This multipurpose 24-hour control is capable of automatically switching loads according to a preset daily schedule. Controls single- and two-speed pumps and cleaner/booster pumps. Three ON/OFF events per circuit per day.

Features:

• Controls single- and two-speed pumps and cleaner/booster pumps
• Three ON/OFF events per circuit per day
• Seven pre-programmed modes
• Freeze and heater protection
• LCD readout
• Multi-voltage input and output
• Countdown and override features enable programs to be overridden and automatically resumed without requiring the user to reprogram the system

Specifications:

• Operation Mode - 24 Hour
• Enclosure Type - Outdoor Type 3R Plastic
• Voltage Selection Type - Multi-Voltage
• Input Voltage Range(s) - 120/240V, 50/60 Hz
• Number of Circuits - 3
• Switch Type - SPST

Applications:

• Heater Thermostat Control
• Motor Control
• Pump Control
