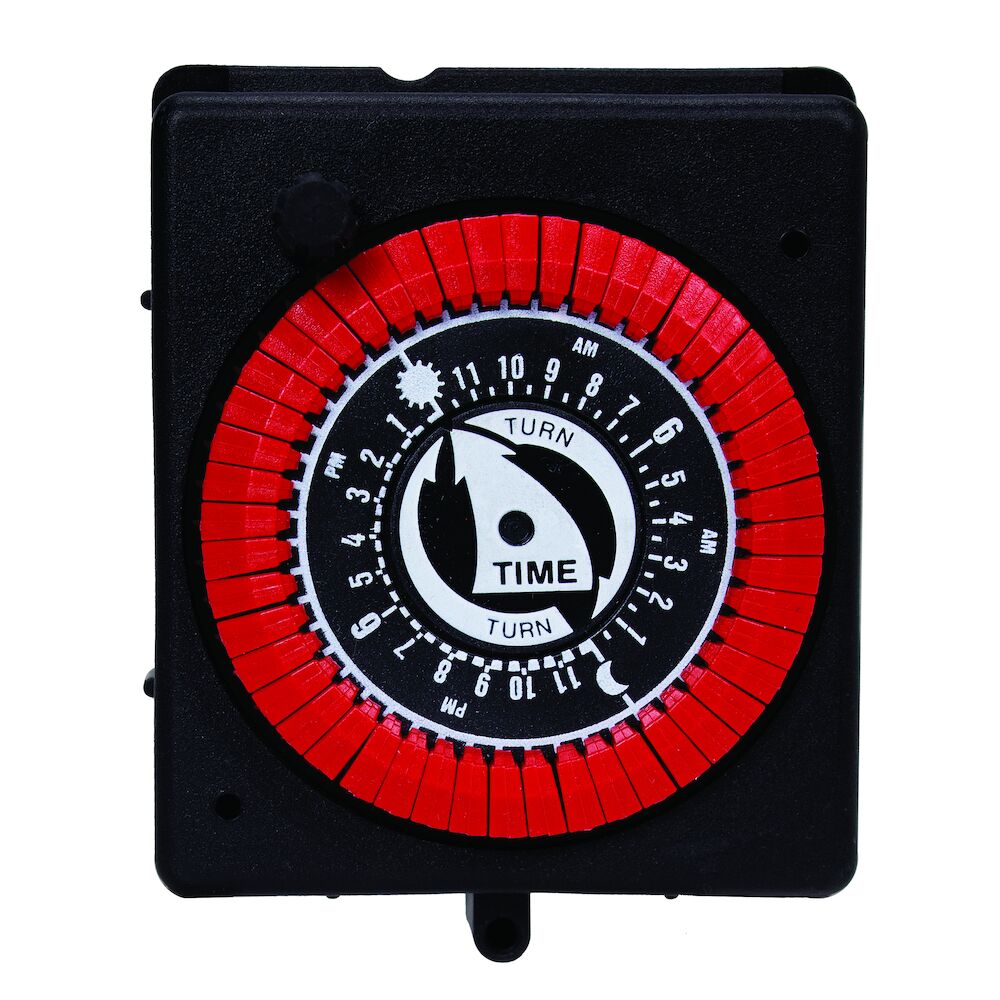

Intermatic 24-Hour Mechanical Panel Mount Timer with Manual Override | PB913N66

Intermatic 24-Hour 120V Mechanical Panel Mount Timer with Manual Override, 48 Trippers

These timers provide automatic control for pumps, cleaners, and other types of loads. Timers have three-way mounting; flush in a round opening, raised in a rectangular opening, or on base. Quick connect terminals for easy installation.

Features:

• Automated control for pumps, cleaners, and other types of loads
• 3 different mounting methods
• Quick connect terminals for easy installation
• 24-hour timing cycle - MIN ON time 1-hr, MAX ON time 23-hr, 30-min intervals
• 7-day timing cycle - 6 to 162-hr ON time, 3-hr intervals

Specifications:

• Minimum Cycle Time - 1 Hour
• Maximum Cycle Time - 23 Hours
• Timing Interval - 30 Minutes
• Operation Mode - 24 Hour
• Has Manual Override
• Has Override Switch
• Captive Trippers - 48
• Input Voltage Range(s) - 120V, 60 Hz
• Number of Circuits - 1
• Switch Type - SPST

Applications:

• Motor Control
• Pump Control
