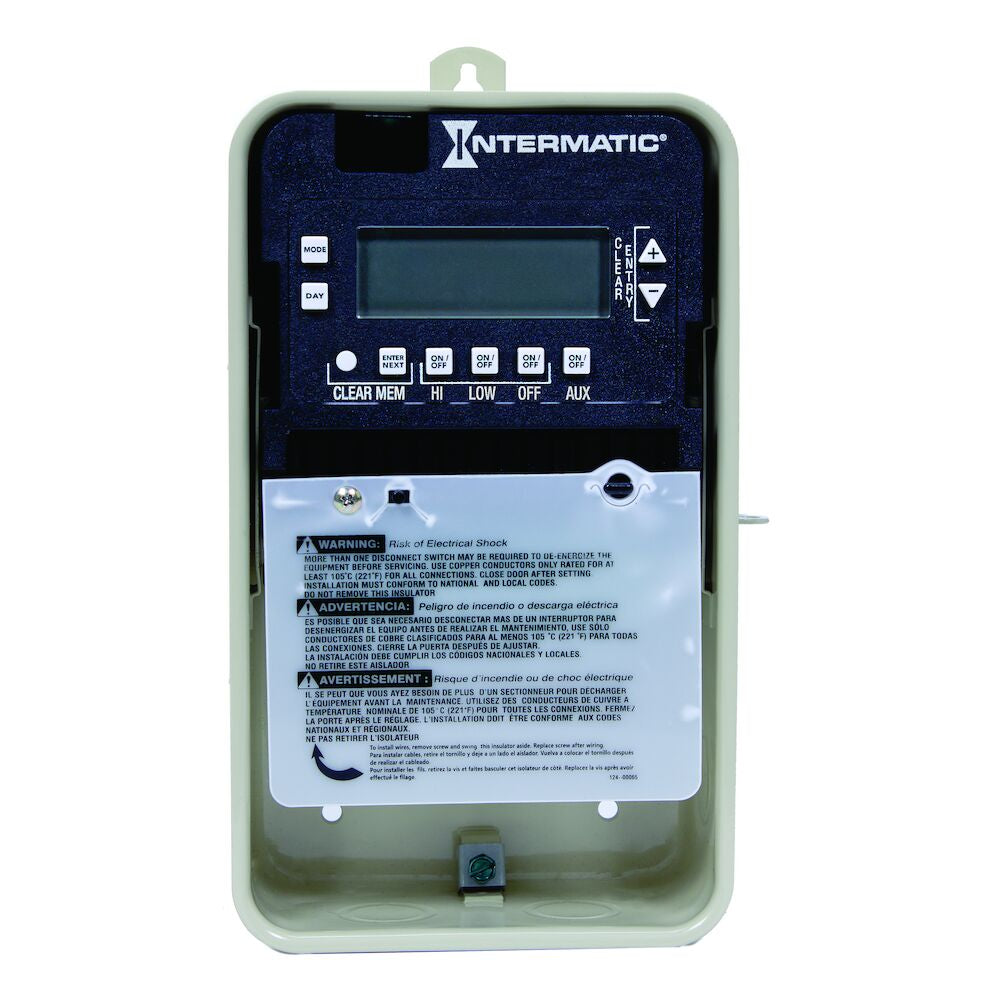

Intermatic Electronic Pump Motor Controller with Seasonal Adjustment | PE103

Intermatic Electronic Pump Motor Controller with Seasonal Adjustment | PE103

Control single- and two-speed pumps and auxiliary equipment with this 3-circuit programmable device. The seasonal adjustment feature can be programmed to automatically adjust filter pump ON/OFF schedules according to the season.

Features:

• Saves up to 40% in monthly utility bills compared to standard timers
• Meets most rebate incentives
• Enables separate daily schedules
• Easy-to-follow on-screen setup for programming
• Auto voltage adjust
• Efficient low-speed operation for all seasons
• User-programmable high and low-speed events
• 100+ hour supercapacitor memory retention
• Available with Type 3R indoor/outdoor lockable metal enclosure

Specifications:

• Minimum ON/OFF Times - 1 Minute
• Maximum ON/OFF Times - 23 Hours, 59 Minutes
• Maximum ON/OFF Operations - 3
• ON/OFF Operations - 3
• Daylight Savings Adjustment - Automatic
• Backup Type - Supercapacitor
• Enclosure Type - Outdoor Type 3R Metal
• Input Voltage Range(s) - 120-277V, 50/60Hz
• Number of Circuits - 3
• Switch Type - 4-SPST
• Maximum Power Consumption (W) - 7W

Applications:

• Motor Control
• Pump Control
