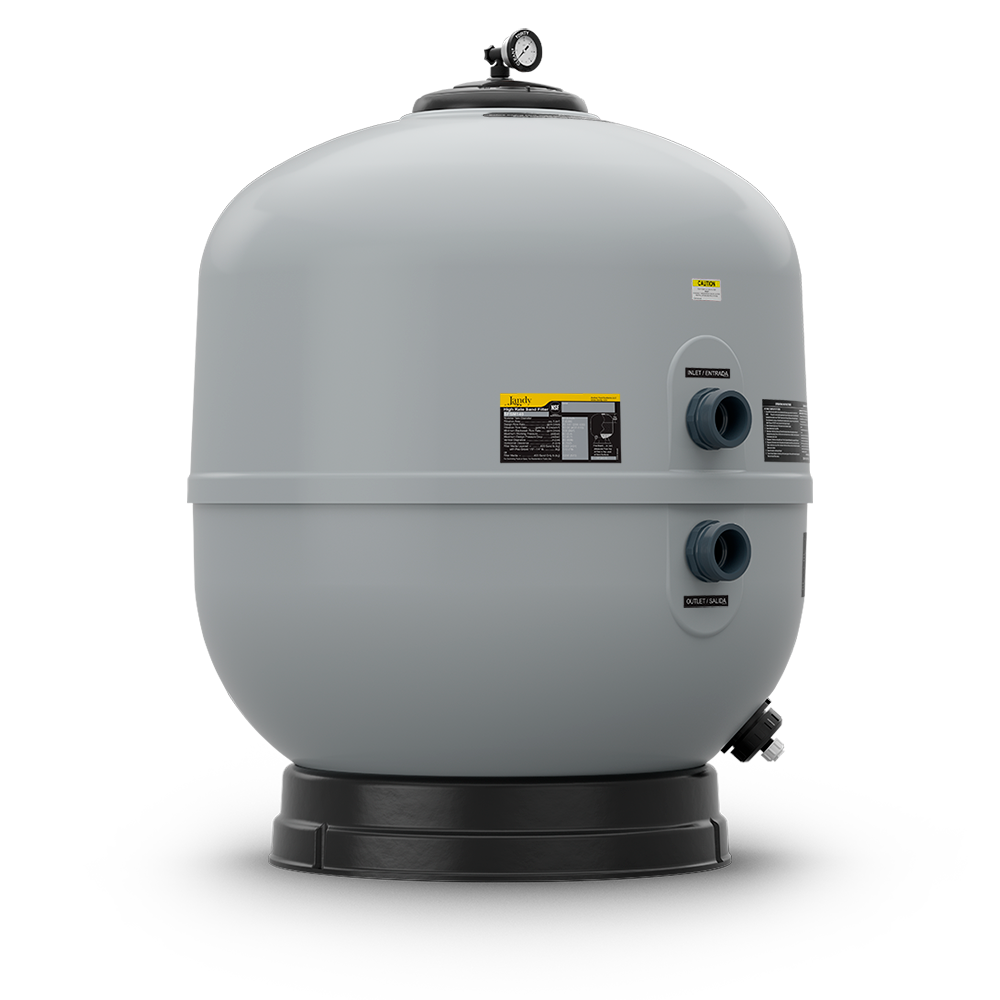

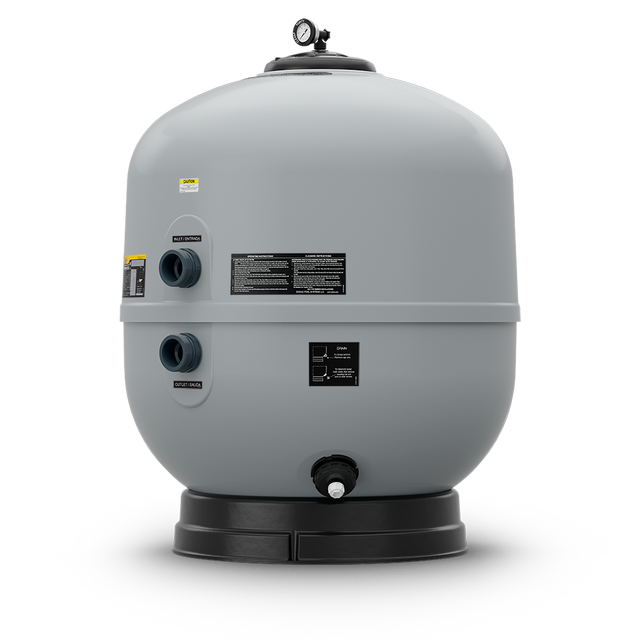

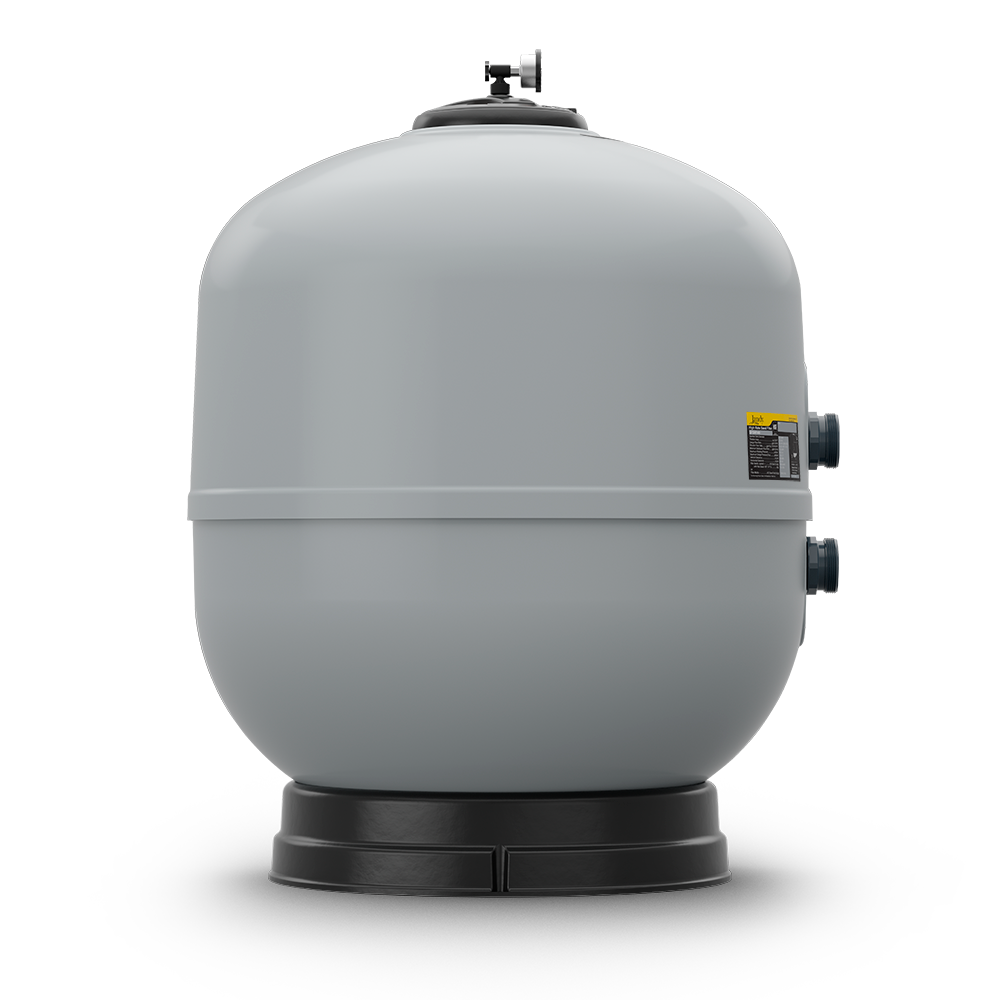

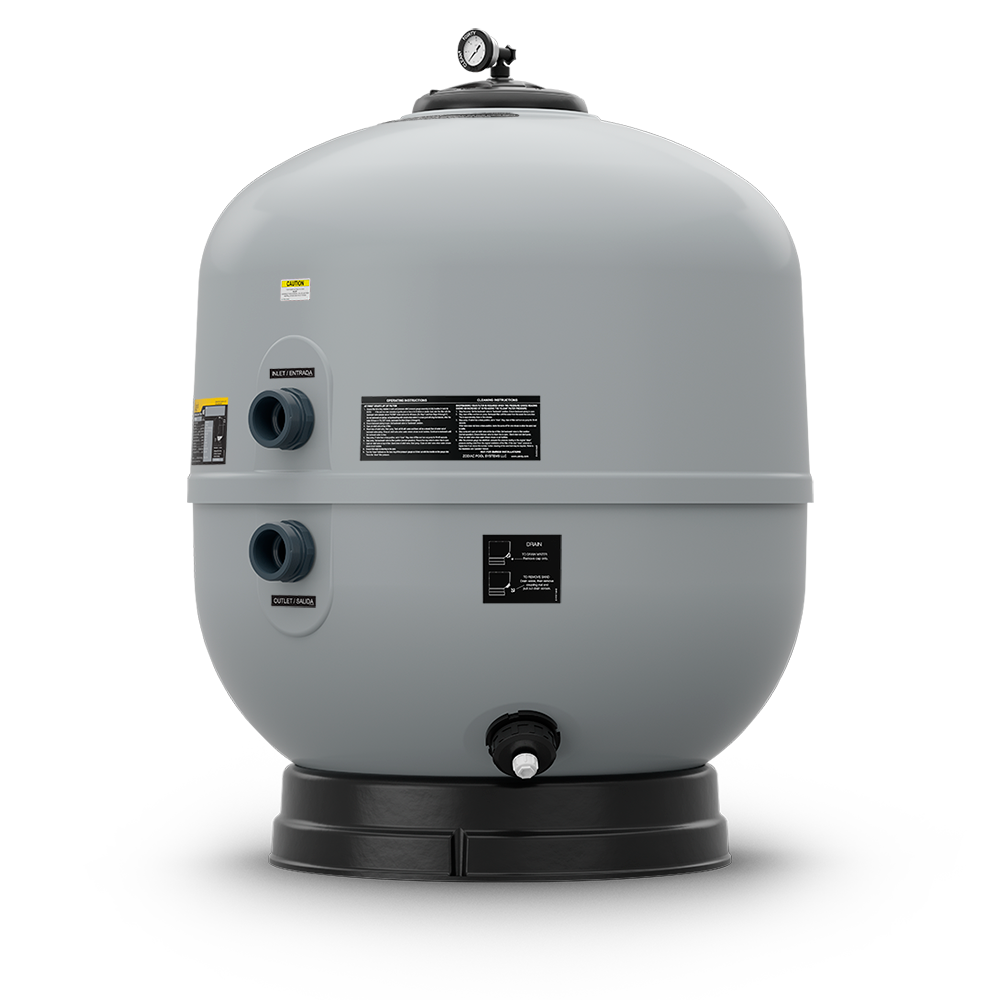

Jandy 37" SFSM Side Mount Sand Filter with Flanges (SKU: SFSM140F | UPC: 052337090605)

Engineered for high-efficiency commercial pool filtration, the Jandy SFSM140F 37" Side Mount Sand Filter sets the standard in durability, flow capacity, and ease of maintenance. With its robust build and advanced performance capabilities, this filter ensures maximum water clarity for large-scale aquatic systems.

Key Features:

• Commercial-grade design with blow-molded tank construction

• Large 7.06 sq. ft. filtration area for improved debris capture and extended filter cycles

• Maximum flow rate: 141.2 GPM with a 20 GPM/ft² filtration rate

• High turnover capacity: 50,832 gallons in 6 hours, 67,776 gallons in 8 hours

• Max working pressure: 50 PSI — ideal for demanding commercial pool systems

• Inlet/Outlet spacing: 7.5 inches for easy plumbing alignment

• Shipping dimensions: 39.8" x 39.8" x 49.2"; Weight: 161 lbs

Product History:

Jandy's SFSM sand filter line has been a cornerstone in commercial pool filtration for decades, known for reliable operation, straightforward servicing, and unmatched water clarity. The 37" SFSM140F model continues this legacy with improved flow and filtration surface area, making it a top-tier choice for hotels, resorts, and public pools.

Electrical Information:

This filter is non-electrical and relies on hydraulic power supplied via an external pool pump. Ensure that your commercial-grade pump is appropriately rated for a minimum flow of 141.2 GPM to meet performance specifications.

Installation Tips:

• Mount on a level, vibration-free surface with proper drainage.

• Use schedule 40 or 80 PVC plumbing for inlet and outlet connections (7.5" spacing).

• Fill tank with correct sand media type and grain size per Jandy's specifications.

• Perform a backwash cycle after initial installation to remove any dust or fine debris.

• Periodically check for pressure buildup — a rise of 8–10 PSI above the clean starting pressure signals it’s time to backwash.

Upgrade your commercial filtration system with the Jandy SFSM140F for dependable, crystal-clear pool water — only at ePoolSupply.com.
