Jandy ePump 3.8 HP Variable-Speed Pump with SpeedSet Plus, 208–230V | VSSHP3802ASP
Yes. VSSHP3802ASP includes a preinstalled SpeedSet Plus controller. VSSHP3802A is the model with the controller sold separately. The pump includes 2.5-inch x 3-inch unions. Recommended pipe size is 2.5–3 inches; follow local codes and professional system sizing. SpeedSet Plus supports IntelliCenter, IntelliCenter Lite, EasyTouch PL4/PSL4 and IntelliTouch. Flow control is not supported. Available in-store only. Jandy Trade Series Exclusive equipment cannot be sold online and requires professional installation and service. This 3.8 THP model operates on 208–230 VAC, draws up to 16 amps and is rated at a maximum of 3,120 watts. A qualified installer must follow the installation manual.Product FAQs
Is the controller included?
What connections are included?
Does it work with Pentair automation?
Can I buy this pump online?
What are the electrical requirements?
Delivery and Shipping
Delivery and Shipping
- FREE SHIPPING IN THE USA
- WORLDWIDE SHIPPING AVAILABLE
- 30 DAY RETURNS
Jandy ePump 3.8 HP Variable-Speed Pump with SpeedSet Plus, 208–230V...
Description
Description
Available in-store only.

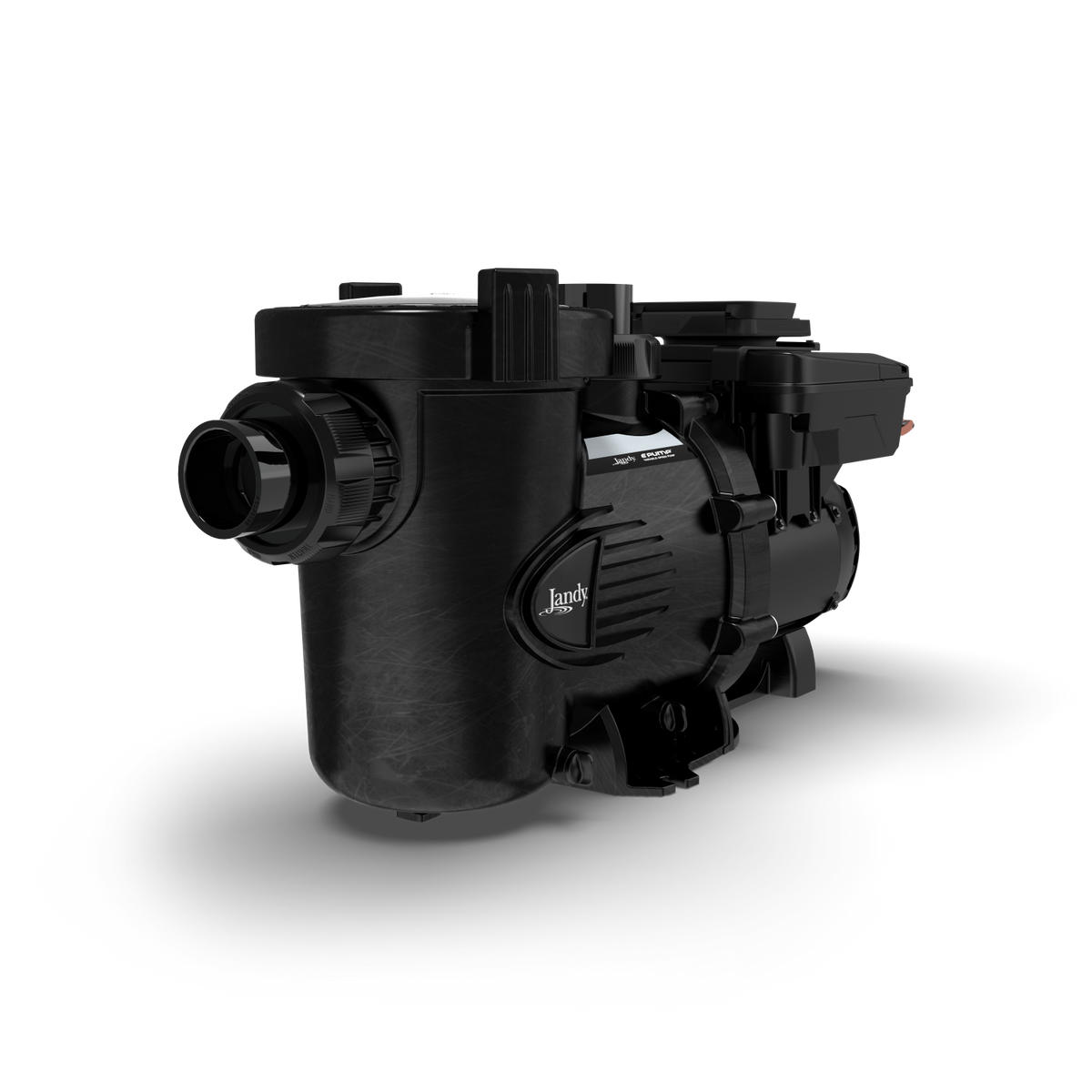

Jandy ePump 3.8 HP with SpeedSet Plus
The VSSHP3802ASP variable-speed pool pump includes a preinstalled SpeedSet Plus controller and two programmable auxiliary relays. Built for pool filtration, water features, negative edges and spa jets, it combines a large wet end with quiet operation and a high-capacity strainer basket.
Features and installation
- 3.8 total horsepower; 208–230 VAC operation; 16 amps; maximum 3,120 watts.
- Includes 2.5-inch x 3-inch unions; recommended pipe size 2.5–3 inches, subject to local code.
- Zero-clearance, totally enclosed fan-cooled permanent-magnet brushless DC motor.
- Four-speed dry-contact relay control and RS485 quick-connect port.
- Tool-free lid and ergonomic carry handle.
Integrates with Jandy automation. SpeedSet Plus also supports Pentair IntelliCenter, IntelliCenter Lite, EasyTouch PL4/PSL4 and IntelliTouch; flow control is not supported. Installation and service must be performed by a qualified pool professional.
Warranty: Jandy variable-speed pumps carry a three-year limited warranty for qualifying residential purchases and installations; commercial applications are limited to one year. Internet purchases of this equipment are excluded. See the manufacturer warranty for full conditions.
See Specifications, Resources & PDF Downloads and Product FAQs for additional details.
