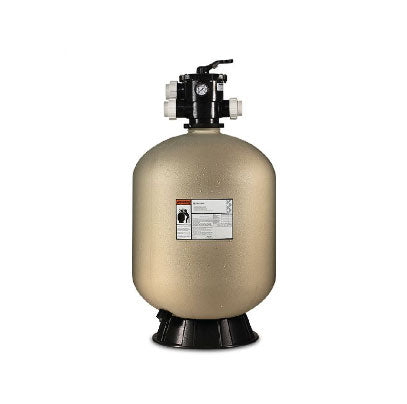

Pentair Sand Dollar SD35 15″ Top Mount Sand Filter | 145315
In-store pickup or delivery only
Call (602) 274-7946
Couldn't load pickup availability
Pentair’s Sand Dollar top‑mount filters are known for simplicity and dependability. The SD35’s thermoplastic tank and clamp valve design make maintenance easier. Warranty: 3‑year tank warranty
Q: How often should I replace the sand? A: Typically every 5–7 years, or sooner if pressure rises rapidly between backwashes.
Q: Can I upgrade the valve or use glass media? A: Yes—just match inlet/outlet size and ensure media grade matches design (~20 silica equivalent).
Call (602) 274-7946
Description
Description
Pentair Sand Dollar SD35 15″ Top Mount Sand Filter | 145315
Compact 1.4 sq. ft thermoplastic sand filter with 6‑position valve and 1.5″ ports.
Features
- Rated ~35 GPM throughput, ideal for small or aboveground pools
- One‑piece thermoplastic tank resists corrosion and is lightweight

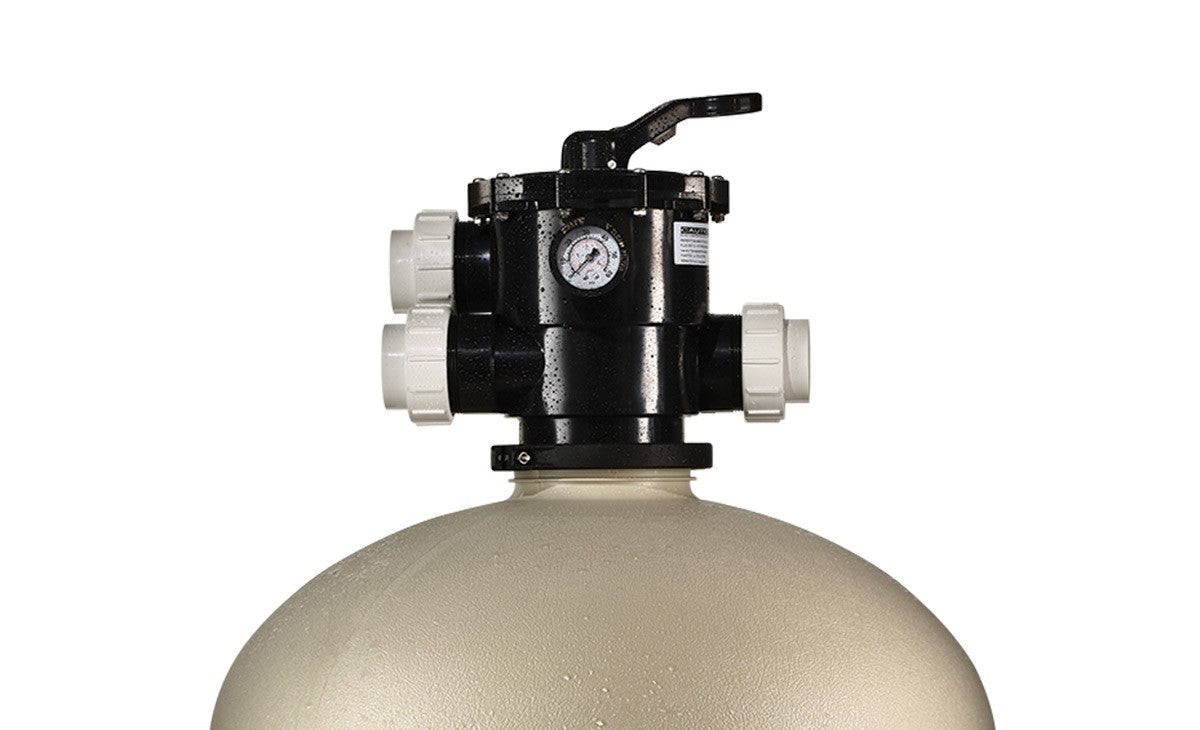

- Clamp‑style 6‑position multiport valve with manual air relief & pressure gauge
- Internal lateral design ensures uniform flow and inhibits channeling
- Combination water/sand drain simplifies servicing and winter prep
- Requires ~100 lbs of sand (or equivalent media)
- Empty weight ~22 lb for easier handling
Description
The Pentair Sand Dollar SD35 is engineered for compact performance. With a modest 1.4 sq. ft media bed and ~35 GPM capacity, it’s well‑matched to small or aboveground pool systems. The one‑piece thermoplastic shell is both durable and lightweight. The clamp‑style top‑mounted multiport valve handles all key filter modes—filter, backwash, rinse, waste, recirculate, closed—with integrated manual air relief and pressure gauge. Inside, a specialized lateral system ensures water flows evenly through the media for efficient filtration and longer service intervals. A combined drain port accelerates servicing and winterizing. This filter offers reliable operation in a small footprint.
Pro Tip
Backwash when the pressure climbs ~8–10 psi above the clean reading. Use a pump matched to ≤ 35 GPM to maintain system balance.
Related Parts
Installation Tips
Install on a level, firm base. Use the correct 1.5″ plumbing with proper unions or adapters. Always depressurize before servicing. Follow local guidelines while winterizing to prevent freeze damage.
Specifications
Specifications
-
SKU
-
UPC or GTIN
-
Product Type
-
Size/Connection
-
Materials
-

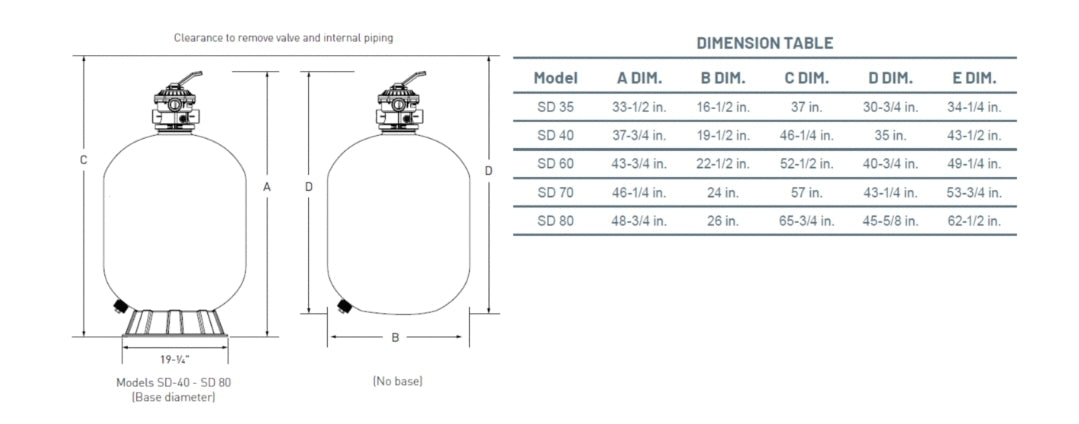

Dimensions16 in
-
Weight
-
Warranty
