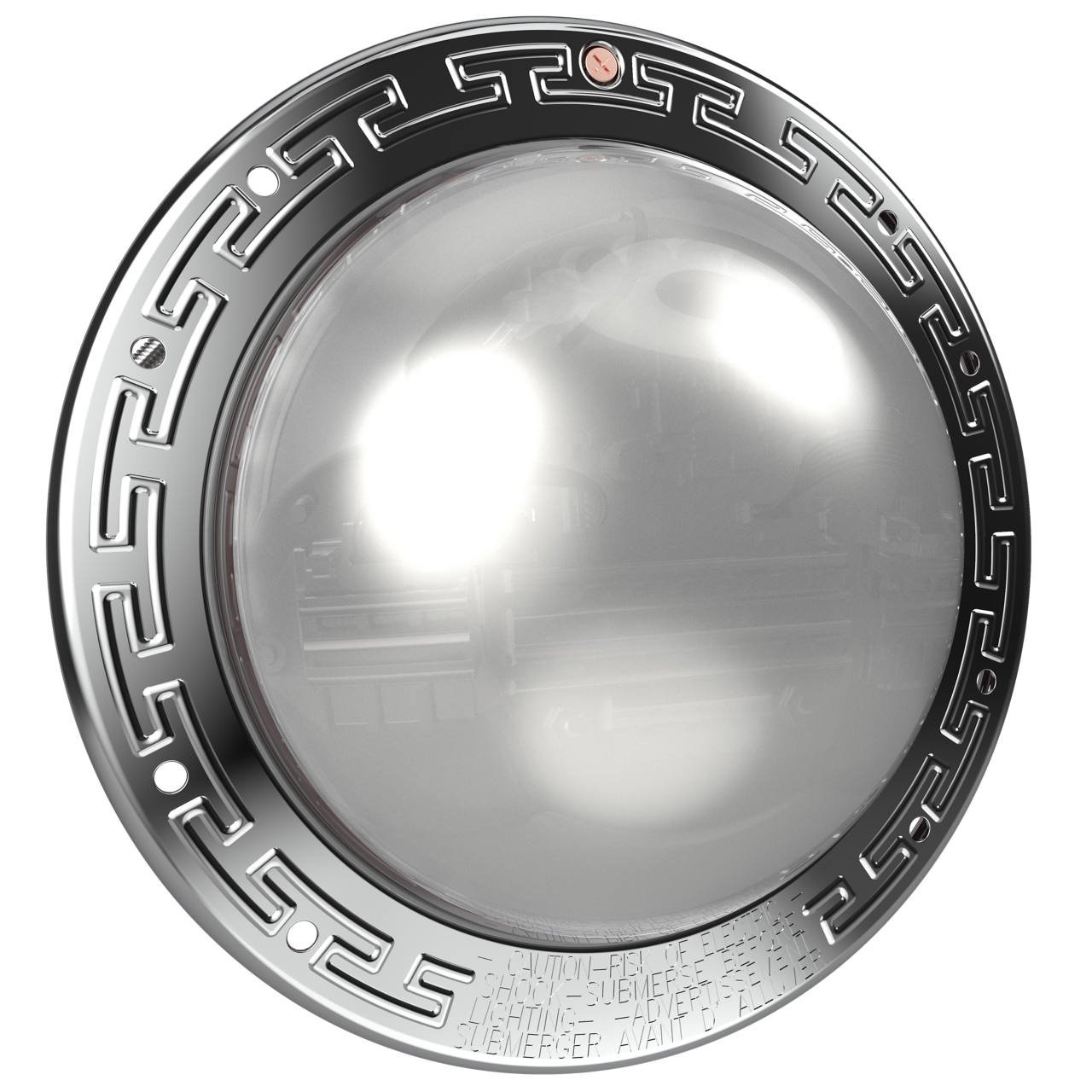

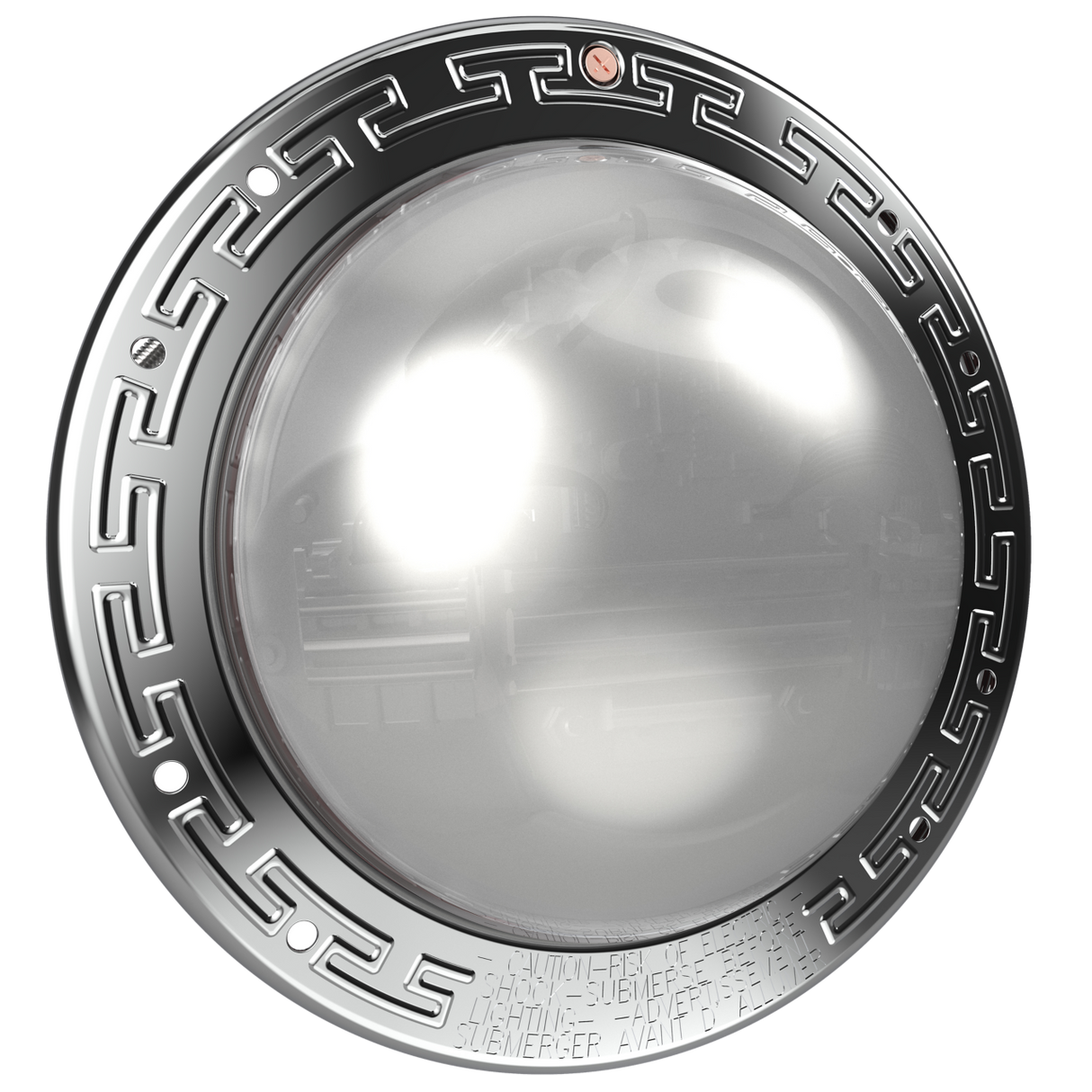

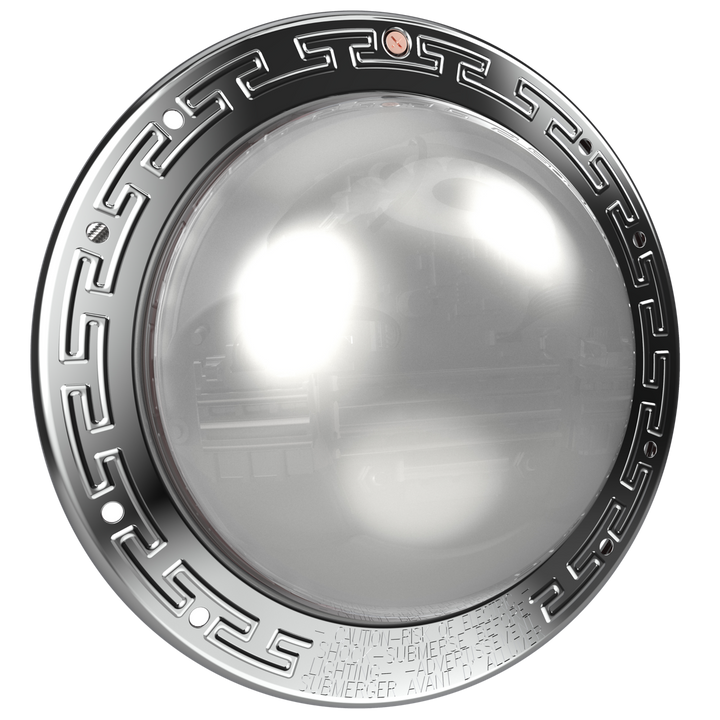

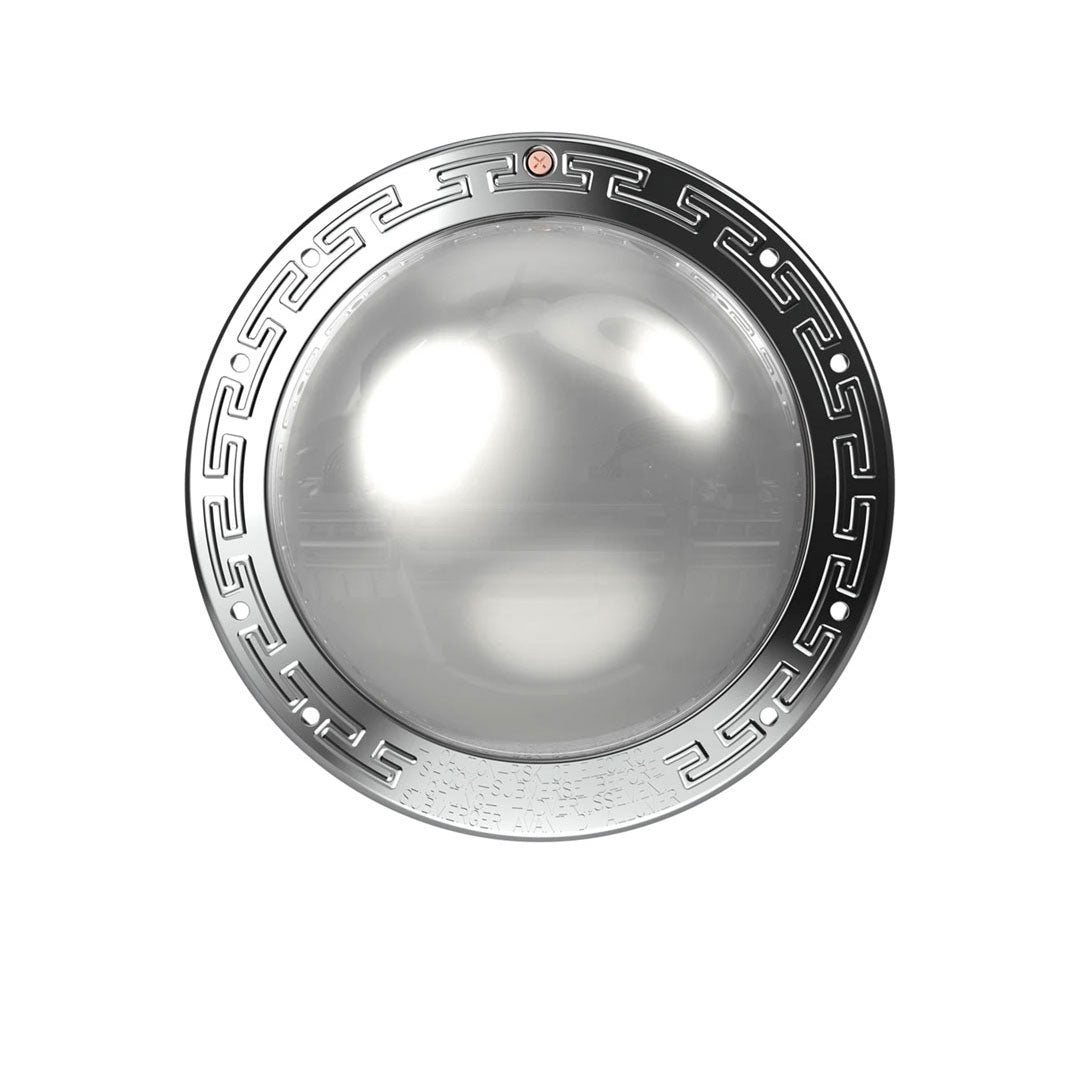

Pentair IntelliBrite Architectural White Pool Light, 120V, 250 ft, 500W Equivalent | 602208

Pentair | SKU: 602208 | Barcode: 788379907785

In-store pickup or delivery only

Call (602) 274-7946

Ships to

Product FAQs

What voltage, wattage and cord length is this exact light?

602208 is the 120V AC, 31W white pool fixture with a 250-foot cord. Its 500W incandescent-equivalent designation is not the power it consumes.

Is this a pool-size or spa-size fixture?

This is the pool fixture. It requires a matching Pentair pool niche; it is not interchangeable with the other fixture size. For a concrete installation, Pentair niche 79206700 is a relevant matching niche. Have your installer verify the complete mounting arrangement.

What is included?

One white LED pool light with its 250-foot factory cord. The niche, transformer, controller and other installation equipment are separate purchases.

Does it need a transformer?

This is the 120V AC model, not the 12V transformer-fed version. Have a qualified installer verify grounding, bonding, GFCI protection and all applicable electrical requirements.

Does this light change colors?

No. This is the white version, not the multicolor fixture.

Can I put it on a dimmer switch?

No. Pentair states that this light must not be used on a dimmer circuit because it can permanently damage the light.

Can a damaged light cord be repaired or spliced underwater?

No. Pentair prohibits splicing underwater or behind the niche and states that the external cord cannot be replaced. Have a qualified pool-light professional evaluate and replace a damaged assembly.

Which older IntelliBrite models are cross-referenced?

Pentair’s exact model table maps 601204, 601304 to 602208. Confirm voltage, fixture size, cord routing and niche before ordering; a cross-reference does not remove installation requirements.

What warranty applies?

Coverage depends on purchase channel, installation and the applicable Pentair terms. Review Pentair warranty terms before ordering.

Call (602) 274-7946

Where to Buy

Resources & PDF Downloads

Brochure

IntelliBrite Architectural Installation and User Guide

IntelliBrite Exact Model Specifications and Cross-Reference

Description

PENTAIR · 602208

Choose the correct light for your installation.

Pentair 602208 is a single IntelliBrite Architectural Series white LED pool fixture with a 250-foot factory cord. This exact model uses 120V AC and is rated at 31W. The 500W incandescent-equivalent designation describes light output comparison, not its electrical power consumption.

Match the fixture

Pool-size light for a matching Pentair pool niche. Pool and spa fixtures are different sizes.

Match the circuit

120V AC; 31W LED rating. Requires a correctly protected 120V circuit, including GFCI protection.

Match the effect

White illumination. This model does not provide multicolor shows.

Check fit before ordering

Have a qualified pool-light installer verify the exact Pentair niche, mounting hardware, full cord route and electrical requirements. The manual requires Pentair fixture housings. Do not install on a dimmer circuit or splice the cord underwater or behind the niche.

See Specifications for verified details, Resources & PDF Downloads for manufacturer documents, and Product FAQs for fitment and service questions.

Specifications

SKU

602208
UPC or GTIN

788379907785
Product Type

White LED Pool Light
Size/Connection

Pool-size Pentair niche application; White; 120V AC; 31W LED rating; 250 ft factory cord; 500W incandescent equivalent (not consumption)
Materials

Tempered glass convex lens; stainless-steel face ring
Power Source

AC-powered
Compatibility

Pentair Large PVC Pool Light Niche for Concrete Pools | 79206700
