Pentair C Series Bronze Pump Volute | 075273Z

Name: Pentair C Series Bronze Pump Volute | 075273Z
Brand: Pentair
SKU: 075273Z
Price: 4786.95 USD
Availability: InStock

Pentair | SKU: 075273Z

$4,786⁹⁵ USD $5,203⁰⁷

Ships to

Compatibility

High-head model groups: CH/CHK-50, CH/CHK-75, CH/CHK-100, CH/CHK-150 and CH/CHK-200.

Medium-head model groups: CM/CMK-50, CM/CMK-75, CM/CMK-100 and CM/CMK-150.

These are the model-group designations in Pentair guide 075277, revision H. Match the installed assembly to the exploded view.

Product FAQs

Does the volute include the impeller or motor?

No complete pump is represented by this listing. The manual lists the volute as item 7 and the impeller, motor, shaft seal and strainer components separately. Do not assume those service components are included.

Are the suction and discharge connections the same size?

The C Series exploded view identifies a 5-inch suction volute flange and a 4-inch discharge flange. The separate strainer pot has a 6-inch inlet flange. These are nominal connection references, not the outside dimensions of the housing.

Where are the parts diagram and service instructions?

See Resources & PDF Downloads for Pentair guide 075277. The exploded view is on printed page 2 (PDF page 6). Pump service is for a qualified professional: isolate power, prevent an automatic restart, relieve system pressure and allow hot equipment to cool before disassembly.

Delivery and Shipping

FREE SHIPPING IN THE USA
WORLDWIDE SHIPPING AVAILABLE
30 DAY RETURNS

Resources & PDF Downloads

C Series Installation & Parts Guide - Rev. H, Nov. 6, 2023

Description

PENTAIR C SERIES | 075273Z

Replace the pump housing, not the complete pump.

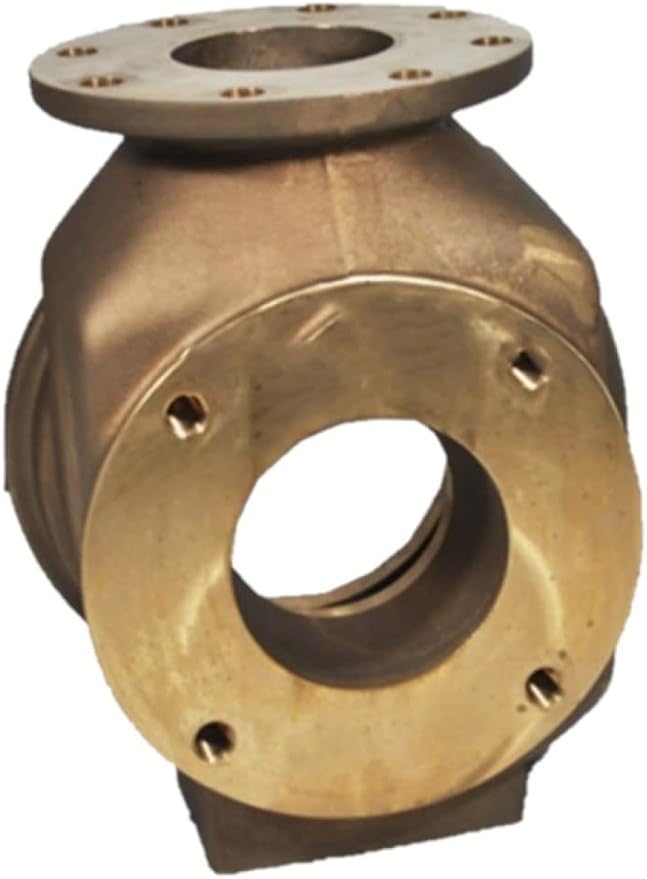

Pentair 075273Z is the replacement bronze volute for the C Series commercial pump. It surrounds the impeller and directs water through the pump discharge. Pentair identifies this housing as item 7 in its exploded view.

Check the assembly before ordering

Match the installed C Series assembly to part 075273Z. The motor, impeller, shaft seal, strainer pot and flange gasket are separately listed components, not a complete package supplied with the volute.

See Compatibility for model groups, Specifications for identifiers, Product FAQs for selection guidance and Resources & PDF Downloads for the parts diagram.

Specifications

SKU

075273Z
UPC or GTIN

788379852863
Product Type

Pump Volute
Size/Connection

5-inch nominal suction flange; 4-inch nominal discharge flange
Materials

Bronze
Compatibility

Pentair C Series CHK-50 5 HP Commercial Bronze Pump 3-Phase | 011657, Pentair C Series CHK-75 7.5 HP Commercial Bronze Pump 3-Phase | 011658
