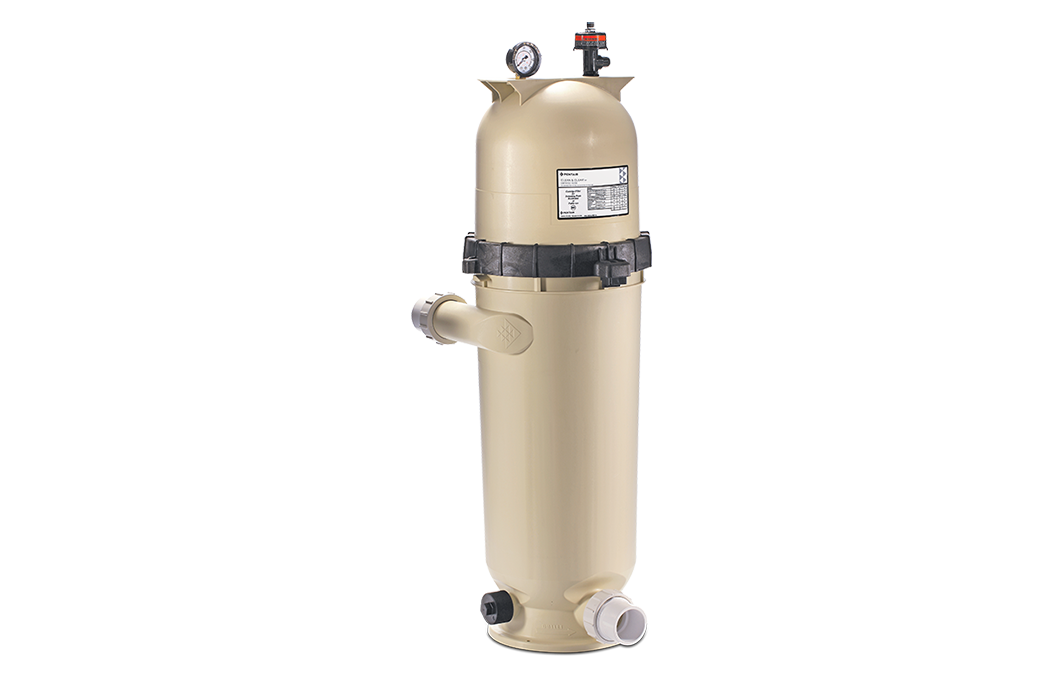

Pentair Clean & Clear RP Cartridge Filter 100 sq ft | EC-160354

Pentair Clean & Clear RP Cartridge Filter 100 sq ft | EC-160354

High-efficiency 100 sq ft side-entry cartridge pool filter by Pentair (SKU EC-160354) with 20-micron capture, fiberglass-reinforced tank and quick-connect union.

Features

• Side-entry cartridge design delivers nearly 50% greater hydraulic efficiency than typical single-cartridge filters.
• 100 sq ft of media traps debris down to ~20 microns — for clearer pool water.
• Fiberglass-reinforced polypropylene tank resists chemicals, corrosion and UV exposure.
• Quick-connect diamond-seal union and safety-latch lock ring for fast installation and servicing.
• High-Flow™ manual air relief and continuous internal air relief support efficient operation.
• Compact size (~61″ vertical clearance required) and 2″ plumbing port size suit smaller installations.

Description

The Pentair Clean & Clear RP Cartridge Filter 100 sq ft (SKU EC-160354) is engineered for residential in-ground pool filtration where strong performance, fine-particle capture and simplified servicing matter. With 100 square feet of cartridge media and an innovative side-entry design, this filter provides superior hydraulic efficiency—capturing down to ~20 microns—while reducing energy use. Its tank is constructed from fiberglass-reinforced polypropylene, giving robust resistance to pool chemicals, UV exposure and long-term wear. Service features such as the quick-connect union, low-force lock ring and air-relief system make maintenance faster and easier. Ideal when you want a high-efficiency cartridge filter in a compact form.

Pro Tip

Before installation, verify your equipment pad has at least ~61″ of vertical clearance above the filter tank and ensure your plumbing is compatible with the 2″ inlet/outlet size. Match your pump flow to the filter rating (approx ~100 GPM or less for this model) to maximise media life and maintain top clarity. When pressure rises ~10 psi above clean start, remove and rinse the cartridge. Inspect the O-ring and lock-ring for wear during each cleaning.

Related Parts

• Pentair Clean & Clear RP Cartridge Filter 150 sq ft | EC-160355
• Pentair Clean & Clear RP Cartridge Filter 200 sq ft | EC-160353
• Pentair 100 Sq Ft Clean and Clear Replacement Cartridge Element | R173215
• Pentair High Flow Manual Air Relief Valve | 98209800
• Pentair Lock Ring Assembly Replacement | 59052900Z
• Pentair EasyClean Filter System Body O-Ring | 87300400Z
• Pentair Clean and Clear Air Bleed Sock Kit | 59016200
• Pentair 100 Sq Ft Clean & Clear Center Core | 59053700
• Pentair 100 Sq Ft Clean & Clear Replacement Tank Lid | 178548Z

Installation Tips

High-level safety/compatibility notes only: Shut off pump power and relieve system pressure before servicing or installing. Ensure the filter rests on a level pad rated for the wet weight of the tank. Confirm the plumbing port size matches the 2″ inlet/outlet. Lubricate and inspect the O-ring and lock-ring for a proper seal before restarting the system. Do not exceed 50 psi continuous operating pressure and maximum water temperature of 104 °F (40 °C) per manufacturer guidelines.
