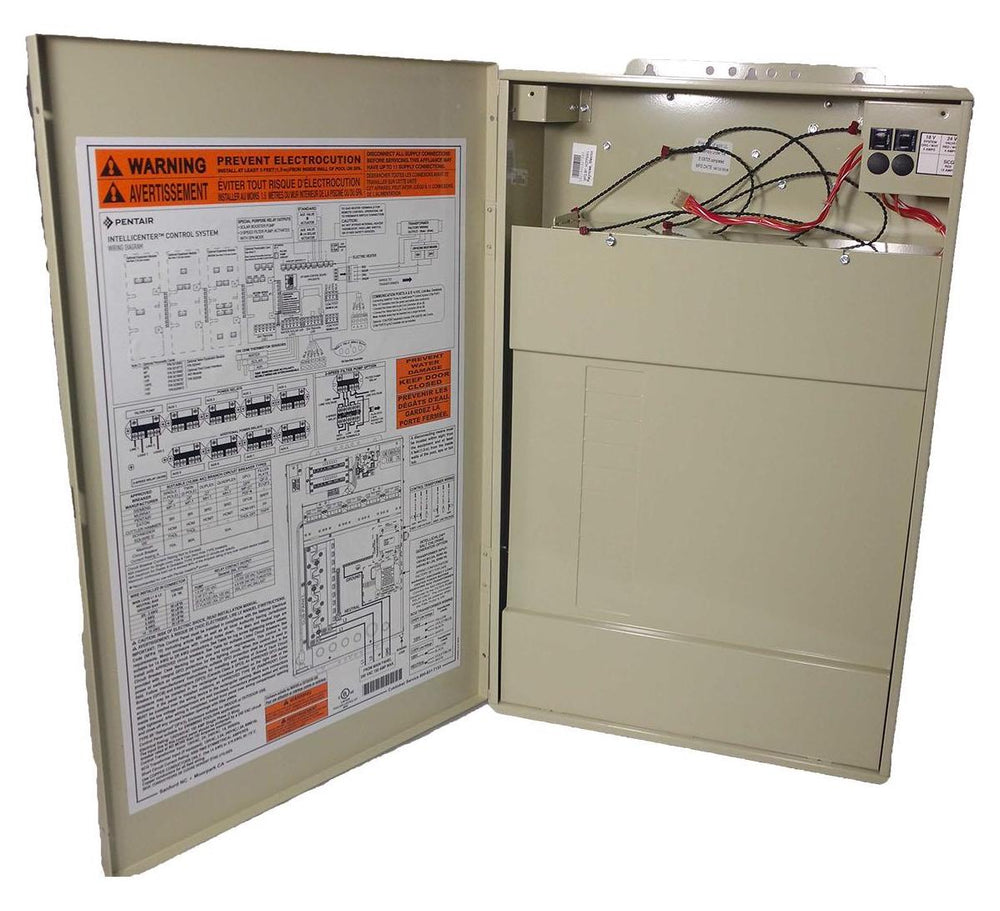

Pentair IntelliCenter Load Center with IntelliChlor Transformer | 522041

Pentair  |  SKU: 522041  |  Barcode: 788379883522

In-store pickup or delivery only

Call (602) 274-7946

Ships to

Select your store

Pickup inventory reflects the selected variant.

Compatibility

522041 is the IntelliCenter load center with a salt-chlorine-generator transformer. Pentair lists the load center without that transformer separately as 522043. Select a compatible personality kit for the intended single-body, shared-equipment or dual-equipment configuration.

This enclosure includes five installed relays; additional circuits depend on the selected personality kit and system hardware. A personality kit, salt cell, circuit breakers and selected control/networking accessories are separate system components. The guide states that breakers are supplied and installed by the installer.

Planning dimensions: the current installation guide’s mounting outline is 26.9 inches high × 17.8 inches wide × approximately 5.5 inches deep. These are the illustrated overall mounting dimensions, rather than the older body-footprint measurements. Check the actual enclosure and allow required service access before installation.

Use a qualified installer for electrical work, grounding, bonding and code requirements. The guide rates the load-center subpanel for 150 A maximum at 120/240 VAC; it is not a promise that every connected load or individual relay may carry 150 A.

Example personality kit, sold separately: Pentair IntelliCenter i8P Single-Body Personality Kit | 521910.

IntelliCenter Installation Guide — 522989 Rev. K, June 2025

Pentair IntelliCenter — Enclosures & Personality Kits

Call (602) 274-7946

Description

Pentair | 522041

The Load Center for a Configured IntelliCenter System

Build an IntelliCenter installation around an enclosure with an integrated breaker subpanel, five installed relays and an IntelliChlor transformer. 522041 is the load center; the compatible personality kit is sold separately.

Organize the equipment pad

The enclosure provides separate areas for high-voltage wiring and low-voltage controls.

Choose salt-system support

This version includes the salt-chlorine-generator transformer. A compatible salt cell remains a separate purchase.

Match the control configuration

Select the personality kit for the intended pool, spa or shared-equipment arrangement.

Plan the complete installation

Confirm the enclosure revision, required circuits and system components with a qualified installer. Breakers, the personality kit and selected interfaces or networking accessories are separate. Remote-control functions depend on the completed system, rather than this enclosure alone.

See Specifications, Compatibility and Resources & PDF Downloads for ratings, mounting dimensions and the current installation guide.

Specifications

  • SKU
    522041
  • UPC or GTIN
    788379883522
  • Product Type
    Pool Automation Load Center
  • Size/Connection
    Overall mounting outline: 26.9 H × 17.8 W × approximately 5.5 D inches; 150 A maximum subpanel
  • Power Source
    120/240 VAC
  • Compatibility
  • Dimensions
    26.9 in, 17.8 in, 5.5 in
