Pentair Legend II Pressure-Side Pool Cleaner, Gray/White | LX5000G
No. It runs from a suitable return line using the filtration system. Your plumbing and available pressure must meet the guide’s setup requirements; this differs from the booster-driven Legend LL505G. Pentair recommends Legend II for inground gunite, vinyl and fiberglass pools. LX5000G has a gray top and white bottom; LX5000GG is the separate all-gray version. The guide lists the cleaner, sand-and-silt bag, attached sweep hose, feed-hose assembly, fittings, floats, backup valve and pressure tester. Follow the guide to check pressure before final fitting. The guide specifies 25–32 front-wheel rotations per minute, measured over one full minute while the backup valve is not cycling. Follow the full pressure-test and adjustment procedure; ask a pool professional or Pentair if suitable flow cannot be established. The guide describes an approximately 30-foot feed assembly. Use its specific measuring and trimming procedure for your pool and check pressure before proceeding. Other return connections can require additional fittings. Coverage and cleaning time vary with pool shape, available pressure, hose setup and debris. Wall climbing depends on the floor-to-wall transition and water pressure; some areas may need manual attention.Product FAQs
Does Legend II LX5000G need a booster pump?
Which pool surfaces and finish are specified?

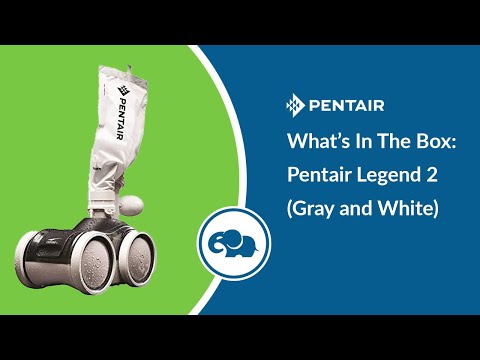

What does the package include?
What wheel speed should I check?
How do I size the hose?
Will it clean every pool in a fixed time?
LX5000G is the gray-top, white-bottom Legend II for inground gunite, vinyl and fiberglass pools. It uses a suitable return line and filtration-pump pressure without a separate booster pump. The guide specifies a 1½-inch female-threaded dedicated return connection, pressure testing before setup and front-wheel speed of 25–32 RPM. Follow its hose-fitting procedure; wall climbing and coverage depend on pool shape and available pressure.Compatibility
Delivery and Shipping
Delivery and Shipping
- FREE SHIPPING IN THE USA
- WORLDWIDE SHIPPING AVAILABLE
- 30 DAY RETURNS
Resources & PDF Downloads
Pentair Legend II Installation Guide — 370271 Rev C
Pentair Legend II Brochure — P1-811, 5/2022
Description
Description
Pentair | LX5000G
Kreepy Krauly Legend II Pressure-Side Pool Cleaner
The Pentair LX5000G is the Kreepy Krauly Legend II Pressure-Side Pool Cleaner. It is listed for inground gunite, vinyl and fiberglass pools. Dual-jet pressure cleaning from the return line, with no separate booster pump required.
Before you order
Choose LX5000G for the gray-top, white-bottom Legend II. Verify that your return plumbing and filtration pump provide suitable pressure using the supplied tester and the exact installation guide.
Product overview
Legend II uses water from a suitable pool return line to power its dual-jet cleaning system during filtration. Four wheels and front-wheel drive support stable movement, while debris collects in a removable twist-lock bag. The sweep hose and automatic backup valve help it work around the pool without a separate booster pump.
Cleaning features
- Runs from a suitable return line during filtration.
- No separate booster pump required.
- Dual thrust jets and front-wheel drive.
- Four-wheel design supports stable tracking.
- Twist-lock collection bag and automatic backup valve.
Choose the right configuration
Confirm manufacturer reference LX5000G and review the specifications, supplied components and any required accessories. Use the manufacturer instructions to check that this exact configuration suits your pool system.
Safety and handling: Read the complete guide. Stop the filtration pump before connecting, removing or servicing the cleaner. Remove it before swimming and chemical shock treatment. Do not use it for new-plaster dust. Follow the pressure test, hose-fitting and filter-maintenance instructions, and contact Pentair if your system includes air-inducing equipment or cannot supply suitable pressure.
Existing product videos
See Compatibility, Specifications, Resources & PDF Downloads and Product FAQs for product details and support references.
Specifications
Specifications
-
SKU
-
Product Type
-
Size/Connection
Product Warranty
