Pentair Kreepy Krauly Legend II Pressure Tester (LX26)
The pressure tester is a replacement part that was made by Pentair. The same high-quality materials were used to manufacture the original factory part. Making this a genuine OEM product.
This pressure tester was designed to help you program or adjust the flow of water that comes from your pool pump and filtration system to the pressure cleaner. Allowing it to perform at its maximum capabilities, sucking and pulling dirt, debris, and other forms of mulch off the surface of the pool.

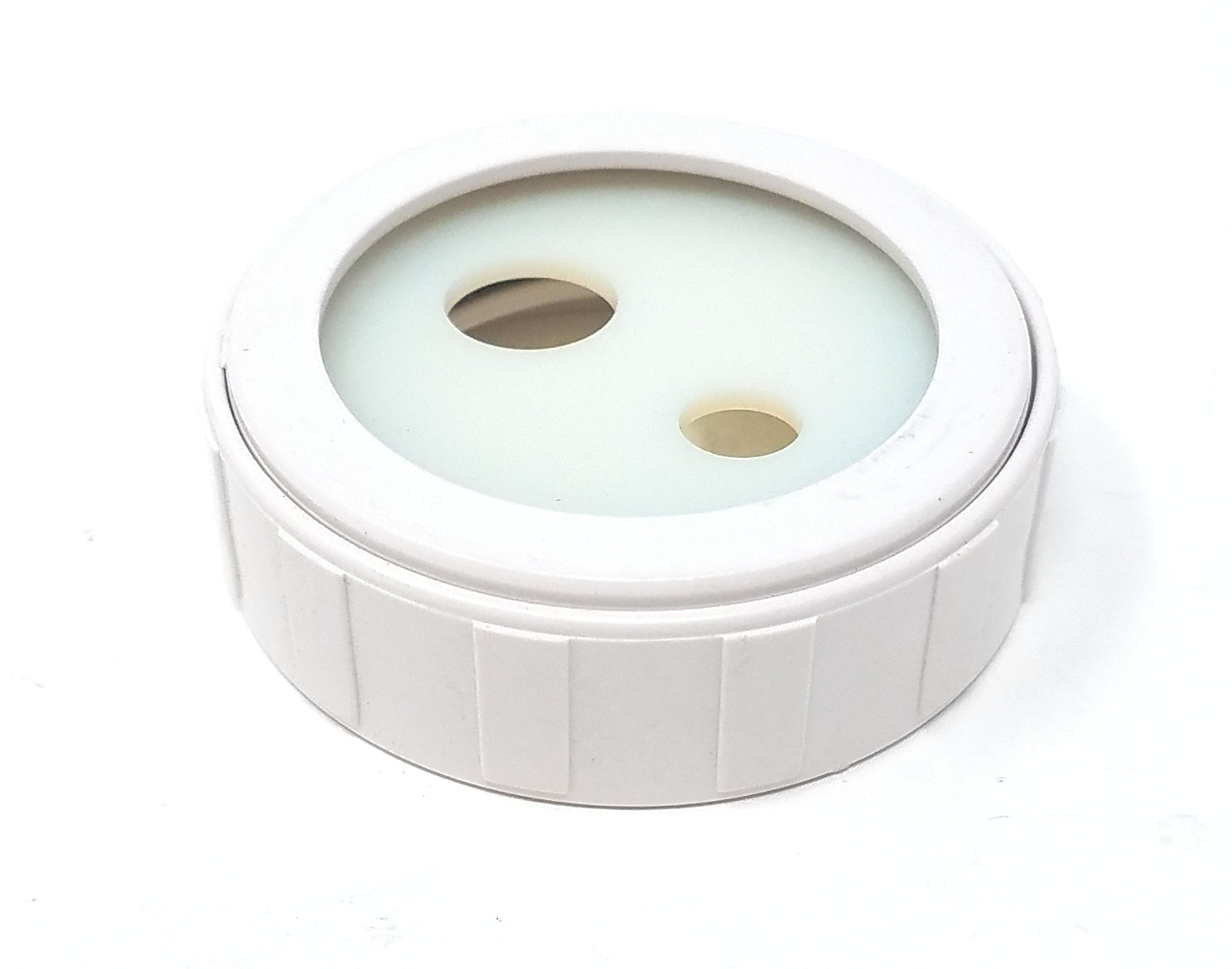

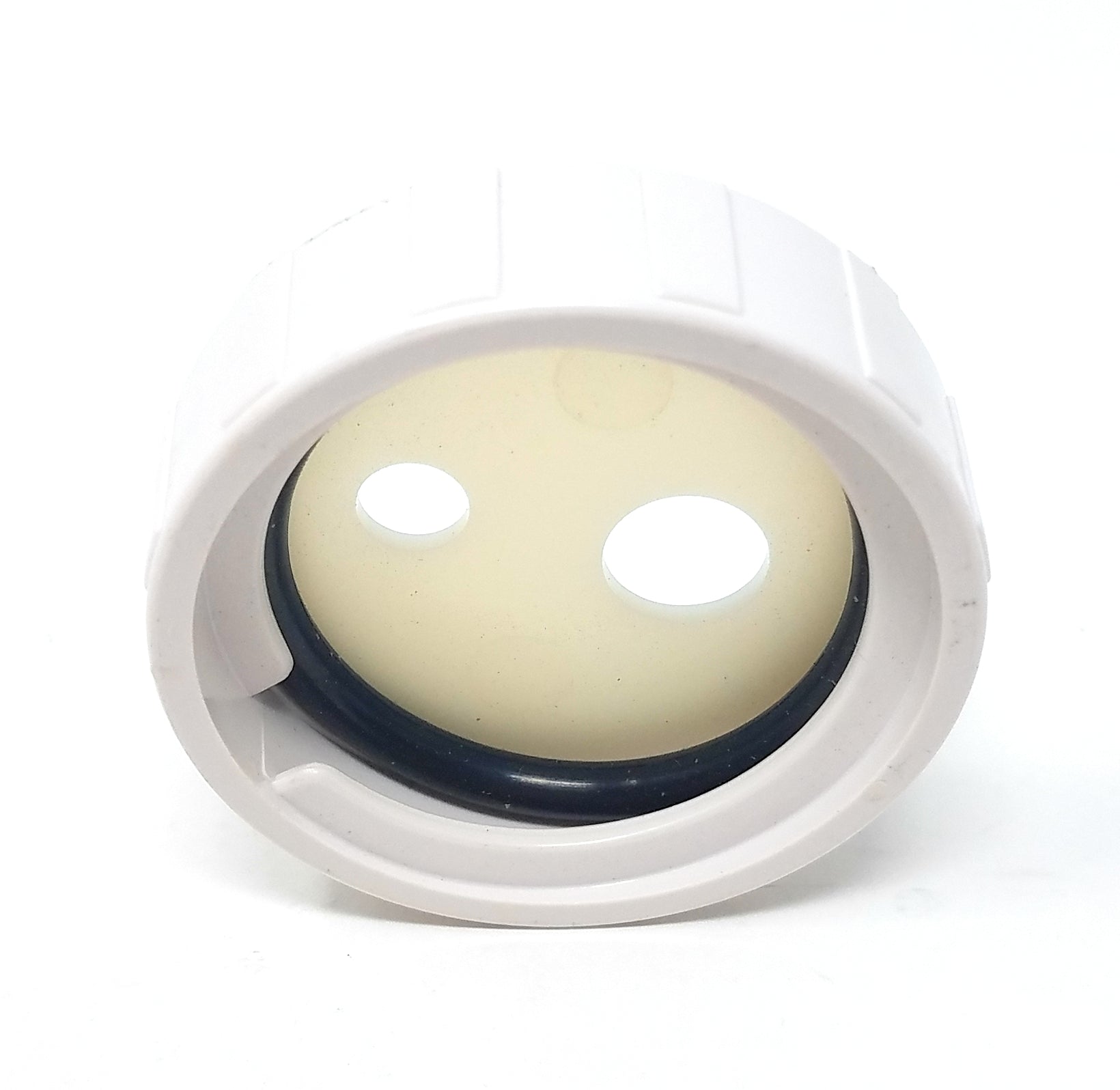

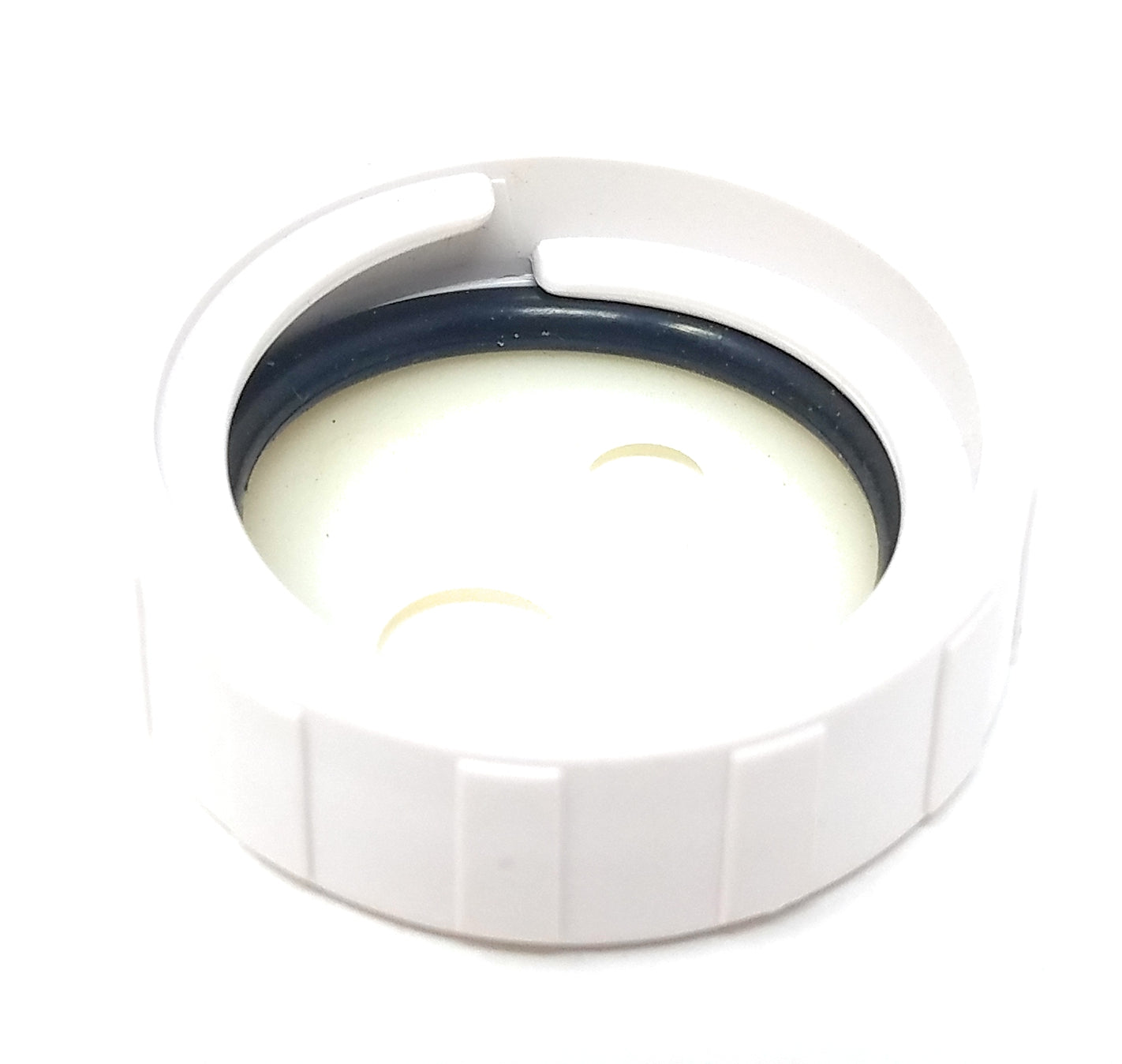

This part is white with two different-sized holes in its center, very easy to identify, and even easier to replace or operate. The best way to perform the pressure test is to make sure to have someone that can assist you first off. Next, while the hose set is connected to the wall fitting (white) which connects to the dedicated return line, you place the tester on the opposite end of the hose kit (white). Now put the hose kit (grey) into the water and cover the larger of the two holes on the tester, your helper can now be stationed at the wall fitting (grey) and relief valve (white) end to reach down and feel the relief valve (grey) see if it is releasing pressure If so, then there is an issue and the cleaner will not operate correctly. Could mean the pool filtration pump may not have a sufficient amount of water pressure to operate the legend II.
