Pentair C Series Strainer-to-Volute Flange Gasket | 070943

Name: Pentair C Series Strainer-to-Volute Flange Gasket | 070943
Brand: Pentair
SKU: 070943
Price: 44.95 USD
Availability: InStock

Pentair | SKU: 070943

$44⁹⁵ USD $48⁰⁰

Ships to

Compatibility

High-head model groups: CH/CHK-50, CH/CHK-75, CH/CHK-100, CH/CHK-150 and CH/CHK-200.

Medium-head model groups: CM/CMK-50, CM/CMK-75, CM/CMK-100 and CM/CMK-150.

These are the model-group designations in Pentair guide 075277, revision H. Match the installed assembly to the exploded view.

The pump must have the matching C Series hair-and-lint strainer assembly. This gasket does not add a strainer to a pump supplied without one.

Product FAQs

Is this the cover O-ring or motor-end flange O-ring?

No. Pentair identifies 070943 as the gasket at the strainer-to-volute flange. Cover O-ring 071433 and flange O-ring 071423 are different diagram items at different sealing locations.

Does the 5-inch reference describe the outside diameter?

The manufacturer diagram labels the volute suction flange as 5 inches. That identifies the connection; it does not establish the gasket outside diameter. Match the part number and flange assembly rather than relying on an outside-diameter assumption.

Where are the parts diagram and service instructions?

See Resources & PDF Downloads for Pentair guide 075277. The exploded view is on printed page 2 (PDF page 6). Pump service is for a qualified professional: isolate power, prevent an automatic restart, relieve system pressure and allow hot equipment to cool before disassembly.

Delivery and Shipping

FREE SHIPPING IN THE USA
WORLDWIDE SHIPPING AVAILABLE
30 DAY RETURNS

Resources & PDF Downloads

C Series Installation & Parts Guide - Rev. H, Nov. 6, 2023

Description

PENTAIR C SERIES | 070943

Seal the strainer-to-pump flange.

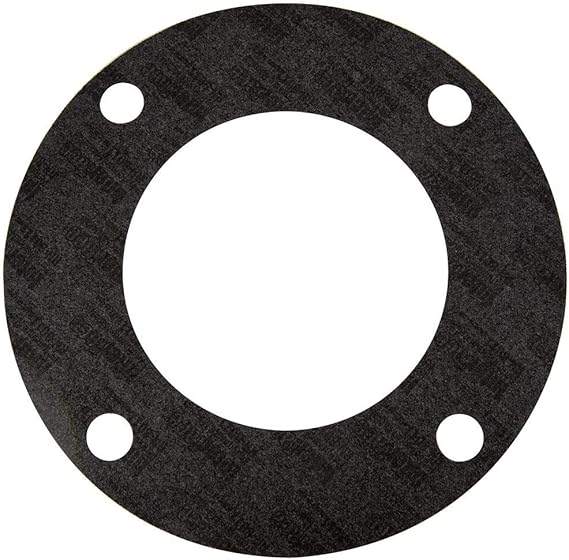

Pentair 070943 is the replacement flange gasket shown between the C Series strainer pot and pump volute. It is item 8 in the manufacturer diagram, at the 5-inch nominal volute suction-flange connection.

Check the assembly before ordering

Match this gasket to the installed C Series strainer-to-volute joint. It is not the cover O-ring or the flange O-ring at the motor end. The strainer pot, volute and fasteners are separate components.

See Compatibility for model groups, Specifications for identifiers, Product FAQs for selection guidance and Resources & PDF Downloads for the parts diagram.

Specifications

SKU

070943
UPC or GTIN

788379699956
Product Type

Strainer-to-Volute Flange Gasket
Size/Connection

5-inch nominal volute suction-flange connection
Compatibility

Pentair C Series CHK-50 5 HP Commercial Bronze Pump 3-Phase | 011657, Pentair C Series CHK-75 7.5 HP Commercial Bronze Pump 3-Phase | 011658
