Pentair FNS Plus FNSP48 48 Sq Ft D.E. Filter | 180008

Pentair  |  SKU: 180008

In-store pickup or delivery only

Call (602) 274-7946

Ships to

Select your store

Pickup inventory reflects the selected variant.

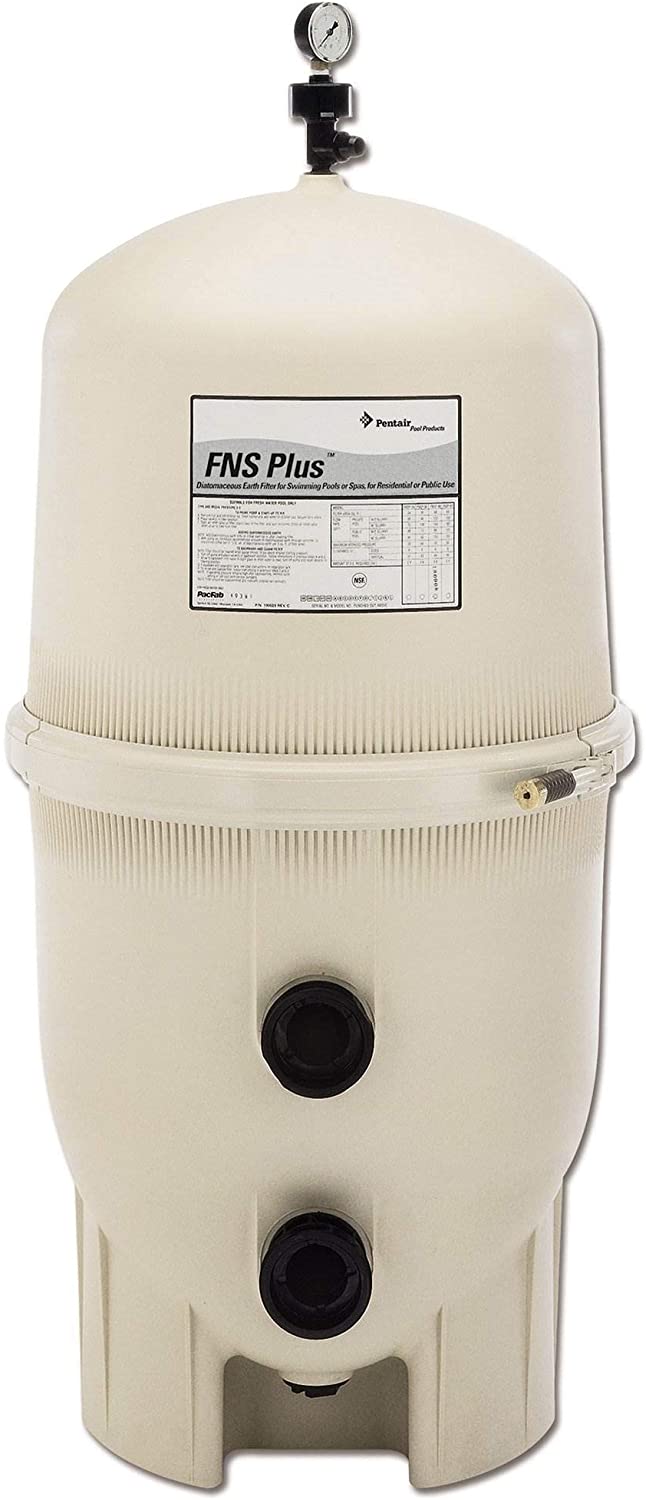

Pentair 180008 is the complete FNS Plus FNSP48 vertical-grid D.E. filter, with 48 sq ft of filtration area. It uses D.E.-coated grids, rather than sand or ordinary cartridge media. Match the tank label, part number and actual clamp design. The newer cast-clamp assembly has different lid and clamp parts from the earlier spring-clamp assembly. Do not mix their hardware or assembly instructions.

Product FAQs
Is this a complete filter or replacement grids?
This is a complete FNSP48 D.E. filter, not a replacement grid pack. The filter valve, pump, D.E. media and site plumbing are selected separately.
How much space is needed?

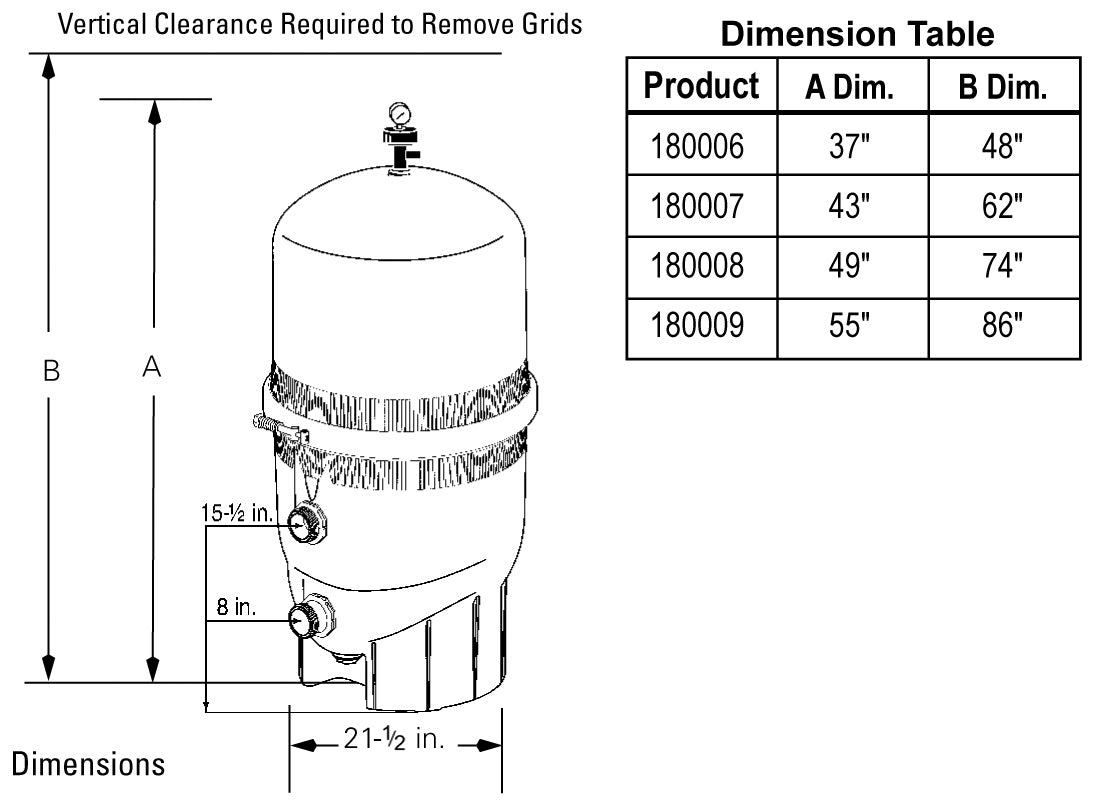

The spring-clamp manual lists 49 inches of filter height and 74 inches of total vertical service clearance. Clearance is measured from the supporting surface, not added above the tank. Match the installed revision and allow access around the equipment.
Why do published flow ratings differ?
Pentair’s product table lists 96 GPM for the dealer FNSP48 at 2 GPM per sq ft; the manual uses 120 GPM at 2.5 GPM per sq ft. These are different rating bases, not guaranteed installed flow or a universal pool-volume limit. A qualified installer must size the system for the applicable requirements.
When should the grids be cleaned?
Track clean-filter pressure at the same pump speed. Follow the manual when pressure rises about 10 PSI above that baseline or flow falls. Backwashing and full grid cleaning are different procedures; recharge D.E. according to the matching instructions.
Which manual and replacement parts should I use?
Match the tank label, part number and actual clamp design. The newer cast-clamp assembly has different lid and clamp parts from the earlier spring-clamp assembly. Do not mix their hardware or assembly instructions.
What purchase route and warranty apply?
This non-EC filter is the dealer-channel version. Follow the listing’s existing quote, pickup or delivery instructions. Warranty depends on purchase route and Pentair’s applicable terms. Check Pentair warranty details before purchase.
Can I open the filter while it is pressurized?
Disconnect pump power and automatic controls, open the manual air relief as directed, stand clear, and wait until all pressure is relieved before service. Never loosen, adjust or tighten the clamp while pressurized. Trapped air can force the lid off and cause severe injury or death. Use a qualified pool professional and the instructions for the installed tank and clamp.

Call (602) 274-7946

Description

180008

48 sq ft of vertical-grid D.E. filtration.

Pentair 180008 is the complete FNS Plus FNSP48 vertical-grid D.E. filter, with 48 sq ft of filtration area. It uses D.E.-coated grids, rather than sand or ordinary cartridge media.

Serviceable grid assembly

Curved grids provide the filtration surface. Follow the matching manual for cleaning and the correct D.E. charge.

Plan service access

Allow 74 inches of total vertical clearance to remove the lid and grids, plus access around the clamp, gauge and plumbing.

Complete the installation

A compatible valve or union arrangement, D.E. media, pump and site plumbing must be selected separately.

Before ordering or servicing

Match the tank label, part number and actual clamp design. The newer cast-clamp assembly has different lid and clamp parts from the earlier spring-clamp assembly. Do not mix their hardware or assembly instructions. Disconnect pump power and automatic controls, open the manual air relief as directed, stand clear, and wait until all pressure is relieved before service. Never loosen, adjust or tighten the clamp while pressurized. Trapped air can force the lid off and cause severe injury or death. Use a qualified pool professional and the instructions for the installed tank and clamp.

See Specifications for details, Resources & PDF Downloads for manufacturer documents, and Product FAQs for buying and service questions.

Specifications

  • SKU
    180008
  • UPC or GTIN
    788379500580
  • Product Type
    Complete Vertical-Grid D.E. Filter
  • Size/Connection
    FNSP48; 48 sq ft filter area; 2 in filter plumbing; 74 in total vertical service clearance; maximum 50 PSI / 104°F (40°C)
  • Materials
    Fiberglass-reinforced polypropylene tank
  • Dimensions
    49 in
  • Weight
    84 lb
  • Warranty

Product Warranty

We want you to have quick and easy access to warranty information for all the brands we carry. Please click on the links below to view each manufacturer’s warranty page:

Note: Warranty coverage, registration, and service terms are provided directly by the manufacturer. Please review the details carefully to ensure proper understanding of coverage and claim procedures.
