Pentair Sand Dollar Top‑Mount Pool Filter SD 80 | 145333

Pentair Sand Dollar Top‑Mount Pool Filter SD 80 | 145333

High‑capacity thermoplastic sand filter with 75 GPM flow and 3.5 sq. ft area. Reliable performance for medium-to-large pools.

Features

• 3.5 sq. ft filtration area supports up to 75 GPM flow
• Durable one‑piece thermoplastic tank resists corrosion
• Six‑function top‑mount multiport valve for easy mode switching
• Combination water & sand drain expedites servicing and winterizing
• Internal lateral system keeps sand bed level for consistent filtration cycles

Description

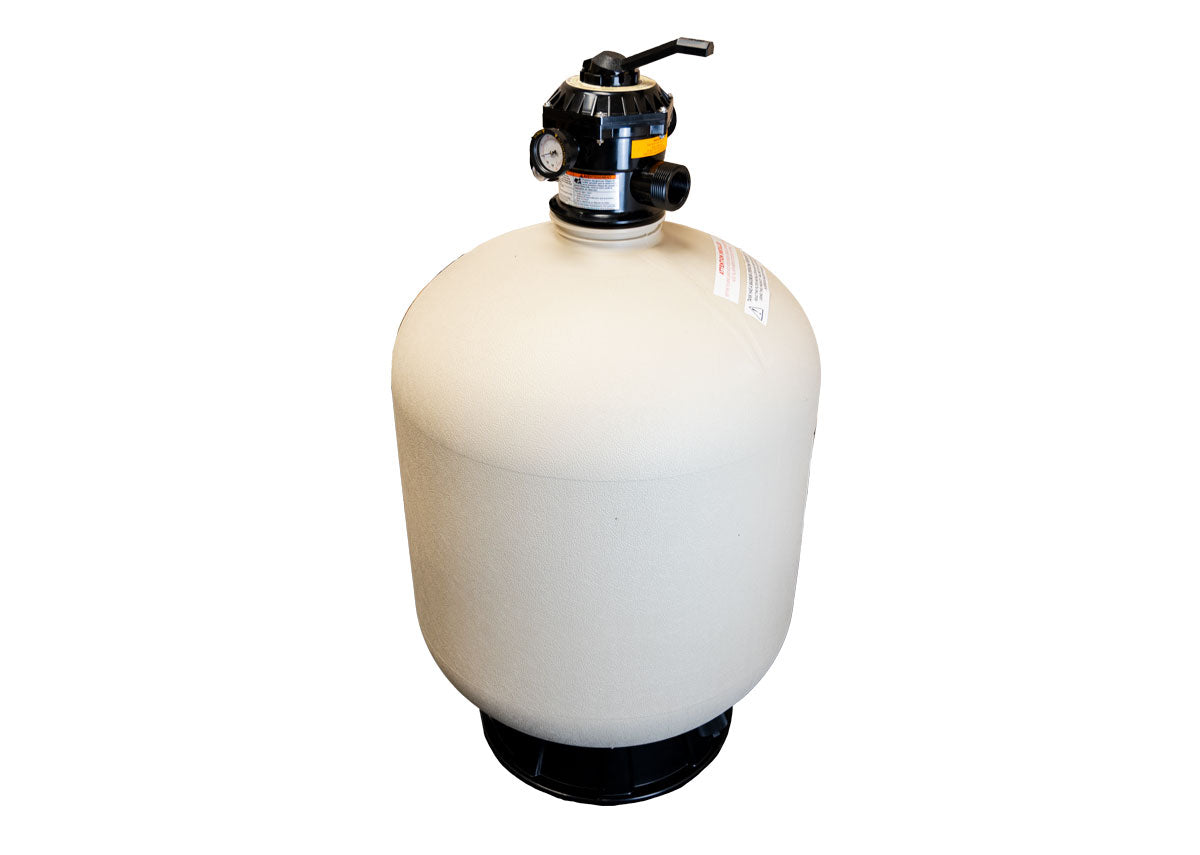

The Pentair Sand Dollar SD 80 is a performance-driven top-mount sand filter engineered for long life and efficient pool filtration. Its 26" diameter body and 3.5 sq. feet of filter area allow up to 75 gallons per minute flow — ideal for medium to large residential pools. The shell is molded from a single thermoplastic piece to resist corrosion and UV damage. Internally, the lateral design ensures even water distribution and prevents channeling, maximizing filtration effectiveness over long cycles.

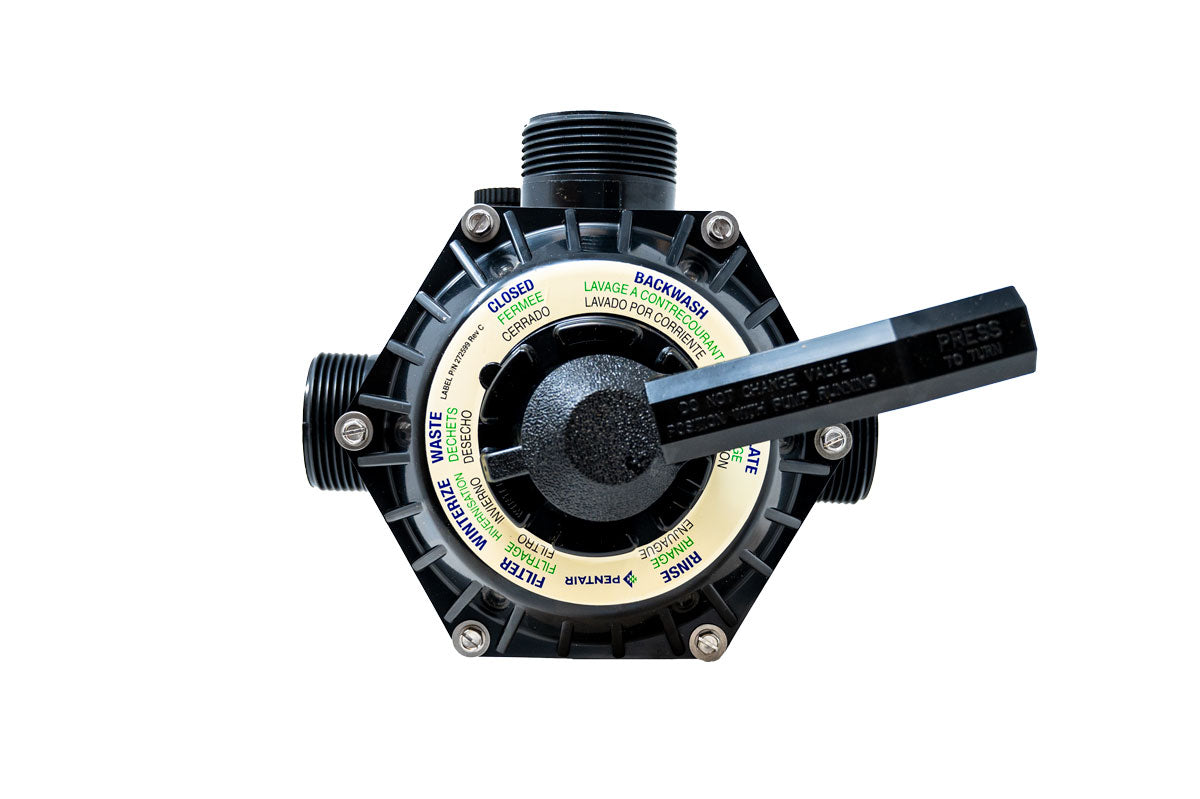

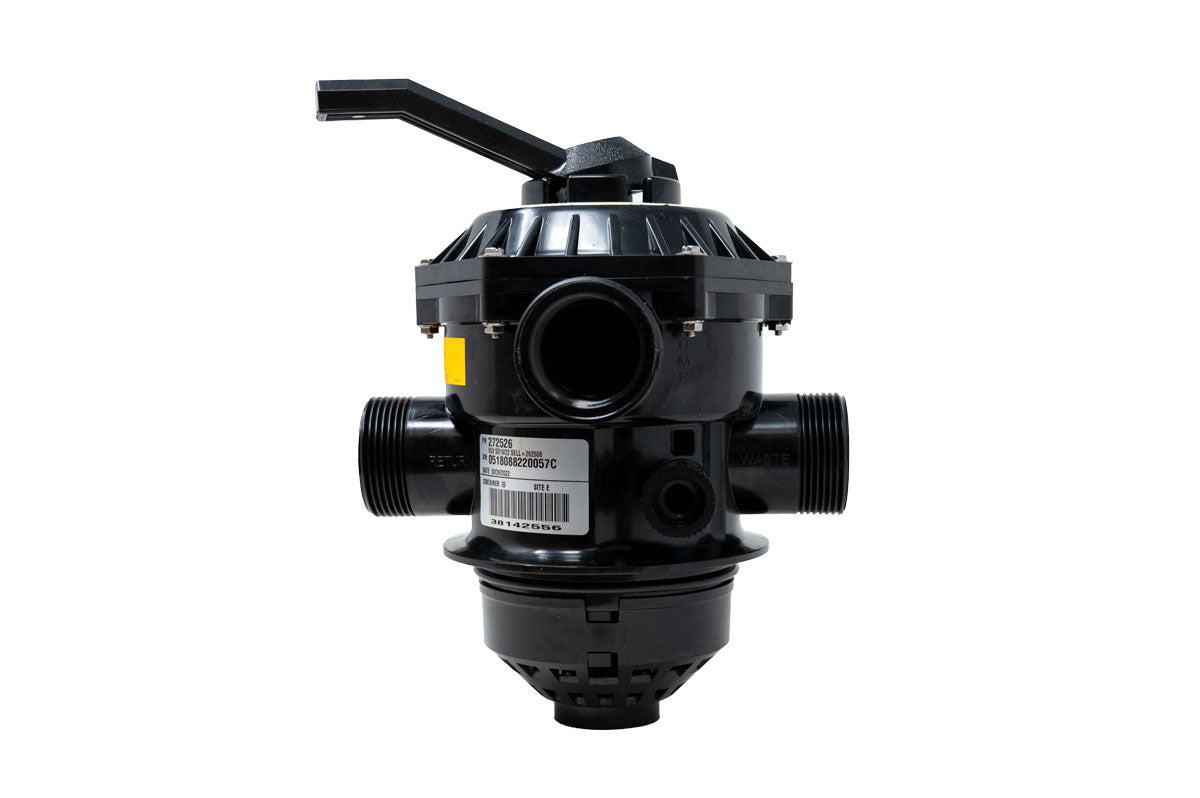

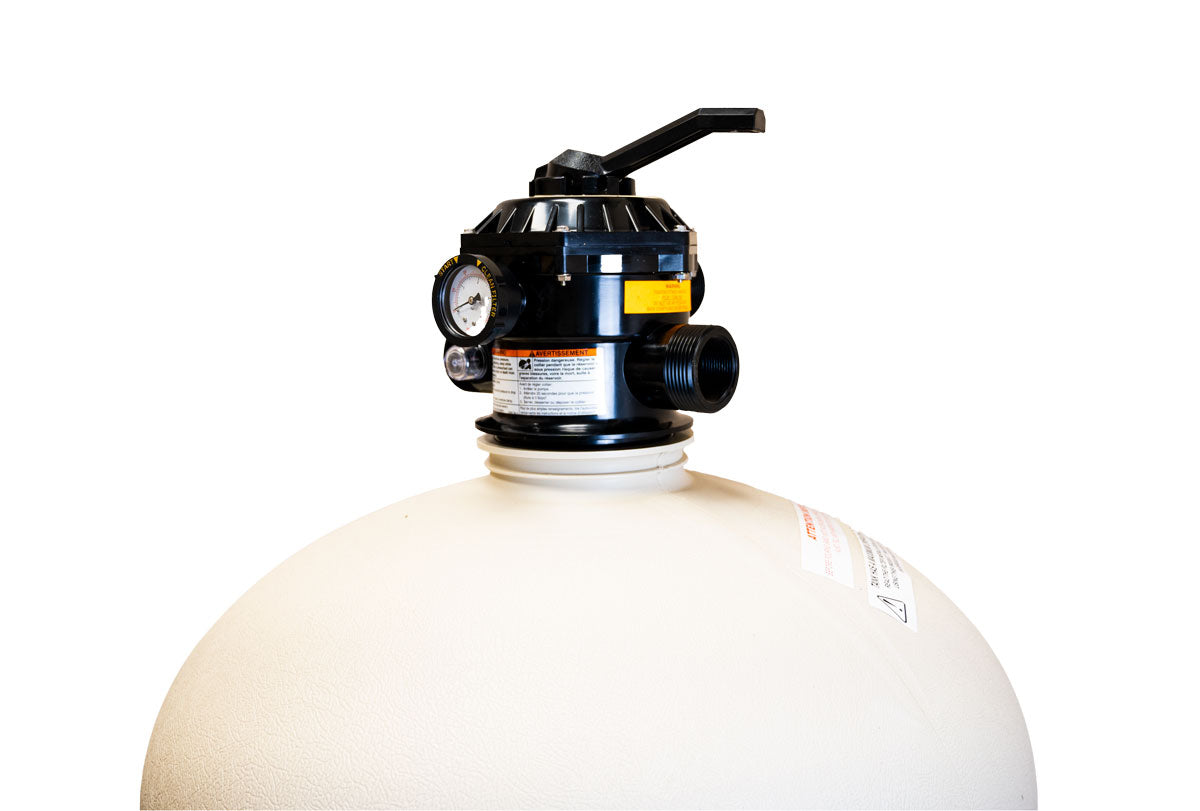

A six-way multiport valve provides simple switching between filter, backwash, rinse, waste, recirculate, and closed modes. The built-in combination drain makes draining and winterizing fast and hassle-free. Pair this filter with quality media and compatible pump hardware for consistent, crystal-clear pool water.

Pro Tip

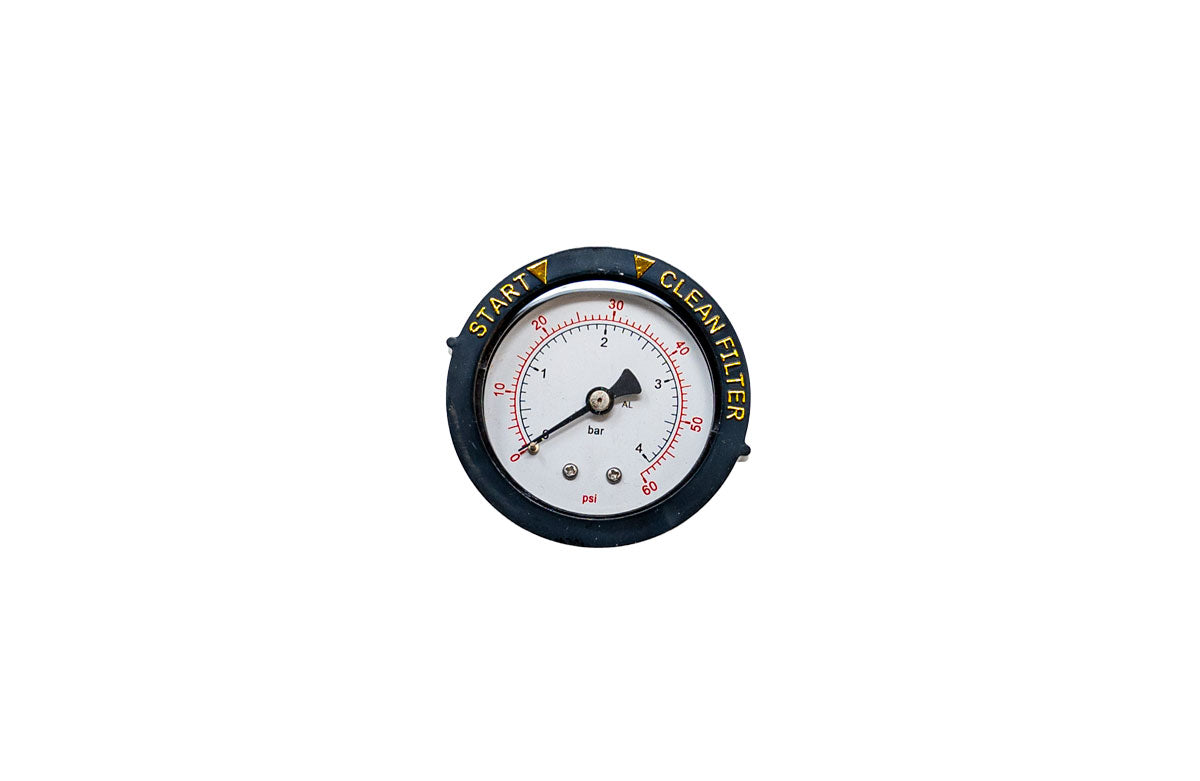

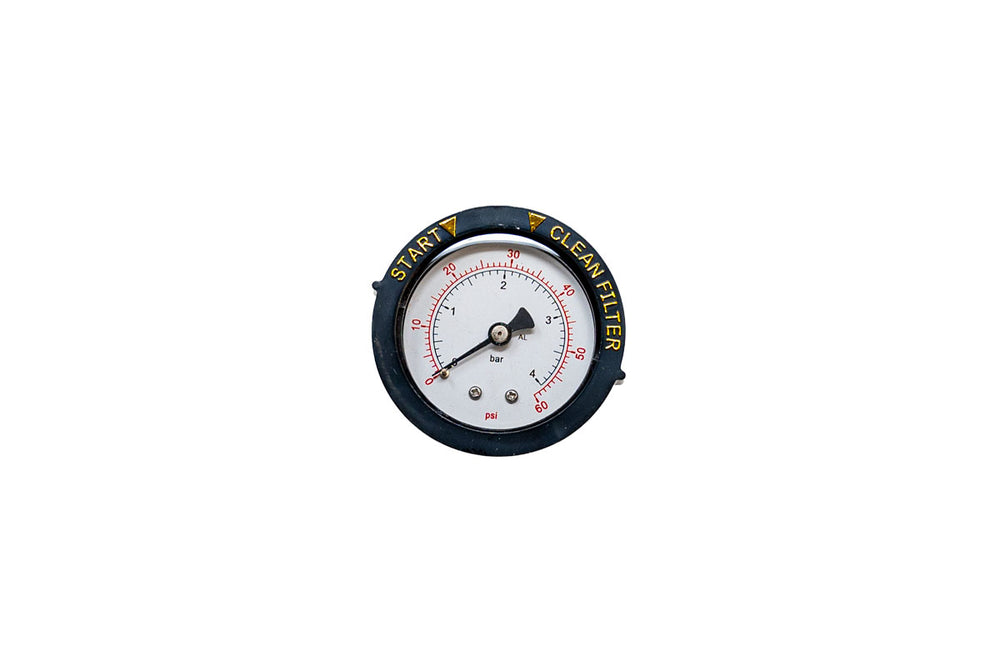

Always fill the tank slowly to avoid disturbing laterals. Use the full 350 lb. media and inspect laterals for cracks before startup. Complement with a backwash hose and pressure gauge for smoother maintenance.

Related Parts

• Pentair 1‑1/2″ HiFlow Multiport Valve | SKU 262506
• Pentair Sand Dollar Valve Clamp | SKU 152165
• Almond Lateral Assembly 11/32" | SKU 155007

Installation Tips

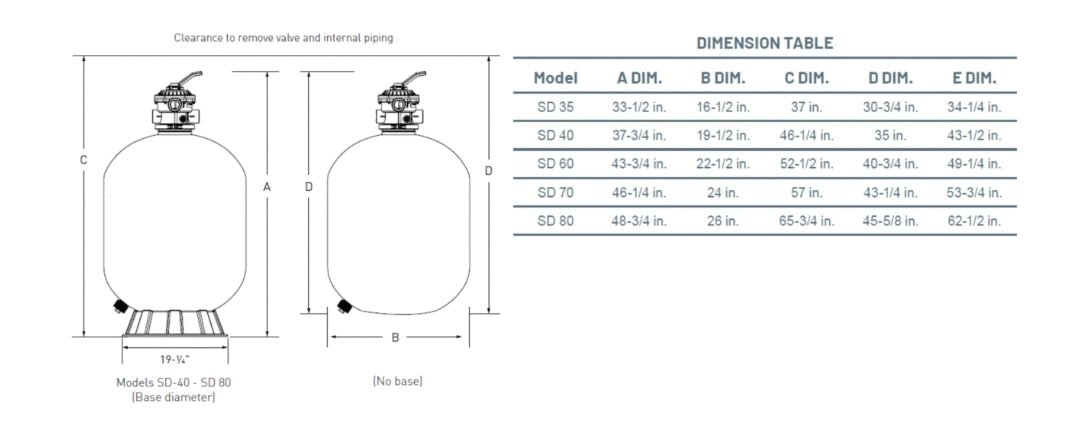

Ensure vertical clearance of ≥74" to remove the multiport valve top. Use only compatible plumbing pressure ratings (PVC schedule 40+). Always depressurize system before servicing.
