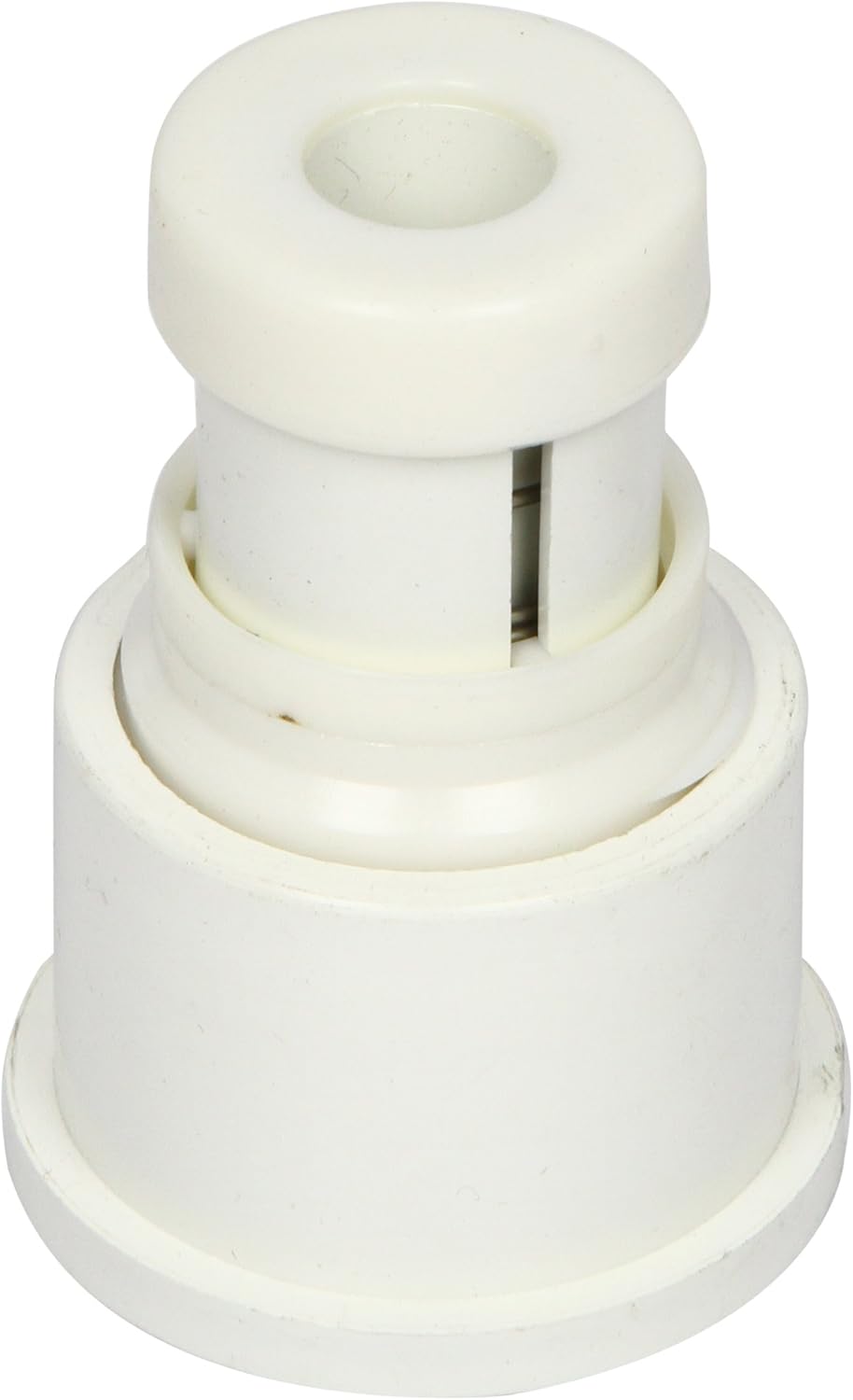

Jandy RetroClean Pool Valet Step and Bench Replacement Head — Bright White | 5-9-1023

5-9-1023: Pool Valet retrofit; Step and Bench nozzle; Bright White.

One RetroClean replacement head/nozzle assembly in the listed Step and Bench and Bright White configuration. The original floor fitting, complete distribution system and service tool are separate items.

For the matched Pool Valet floor fitting and the specified step and bench cleaning position. Match the original fitting, exact RetroClean part number, nozzle configuration and color. Pool Valet, Master Pools Turbo-Clean and QuikClean retrofit heads use different applications; similar appearance does not establish interchangeability.

Other separately listed Pool Valet configurations are 5-9-1022, 5-9-1032, 5-9-1033. Match the specific configuration rather than treating these as automatic substitutes.

Stop the pump, prevent automatic restart and relieve system pressure before service. Identify both the original floor fitting and the installed RetroClean replacement before selecting a removal tool or turning direction. Follow the instructions supplied for the specific retrofit assembly; do not transfer a generic bayonet or pre-1992 threaded-head procedure to a different fitting. Inspect for damage and debris, then check the serviced zone’s operation after correct reassembly.

Jandy’s separate In-Floor limited warranty states one year for manufacturing defects and 90 days for purchased replacement parts, subject to the full certified-design, qualified-installation, first-purchaser/original-site and other conditions. The conditional lifetime provision for eligible original cleaning heads with Jandy In-Floor valves does not automatically give a purchased retrofit head, tool or O-ring lifetime coverage. Coverage is for the 50 United States and Canada; shipping and labor are excluded. Property transfer or remodeling ends coverage as described in the statement.

The 2026 manufacturer ordering table, page 125, identifies the exact retrofit family and part number. The tool table on page 126 identifies the Turbo-Clean tool application. The Jandy specialty guide and general in-floor owner’s manual provide system context; they are not model-specific RetroClean installation instructions. See the separate In-Floor limited warranty for its conditions.

The 2026 manufacturer table marks this exact Pool Valet retrofit limited quantity, available while supplies last. It is not marked DISC in that ordering table. Confirm availability for planned replacements.
