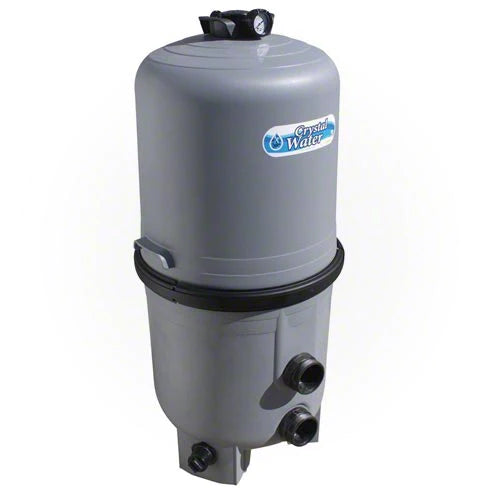

Waterway Plastics Crystal Water 325 Sq. Ft. Cartridge Pool Filter | 570-0325-07

Waterway Plastics  |  SKU: 570-0325-07  |  Barcode: 806105312952
Sale price $1,06495 USD Regular price $1,25695

Ships to

Select your store

Pickup inventory reflects the selected variant.

UPC & Shipping Dimensions

Manufacturer PartUPCShipping Dimensions
570-0325-0780610531295223 x 23 x 44 inch

Shipping dimensions are reported package measurements, separate from installed product dimensions. Measurements are shown in Pool360’s listed order; length, width and height axes are not specified.

Manufacturer Warranty

Waterway Plastics’ published policy lists a three-year warranty from the date of sale, with proof of purchase, for Crystal Water pool filters. Waterway’s published extended term applies only to purchases from brick-and-mortar retailers and excludes online or e-commerce purchases. Confirm the applicable coverage for an online order before purchase. Coverage is subject to Waterway Plastics’ installation requirements, applicable registration requirements, proof of purchase and exclusions. Direct warranty questions and claims to the point of purchase.

Read Waterway Plastics’ official warranty terms and registration information.

Read Waterway’s specific warranty durations, eligibility conditions and consumable exceptions.
Waterway separately limits consumables, including filter cartridges, DE grids and O-rings, to 30 days against manufacturing defects only.

Product FAQs
Is this the complete filter or replacement media?

This is the Waterway Plastics Crystal Water 325 sq. ft. Cartridge filter, part 570-0325-07. It uses four cartridge elements. Replacement cartridges are separate service items; match the correct element number when servicing an existing filter.

What flow and pressure ratings apply?

Waterway’s owner’s manual lists a 112 GPM design flow and a 50 PSI maximum working pressure for this model. The pressure limit is not a normal operating-pressure target. Have your installer size the filter with the actual pump output, plumbing and other equipment; filtration area alone does not establish the correct pool size.

How much space should I allow?

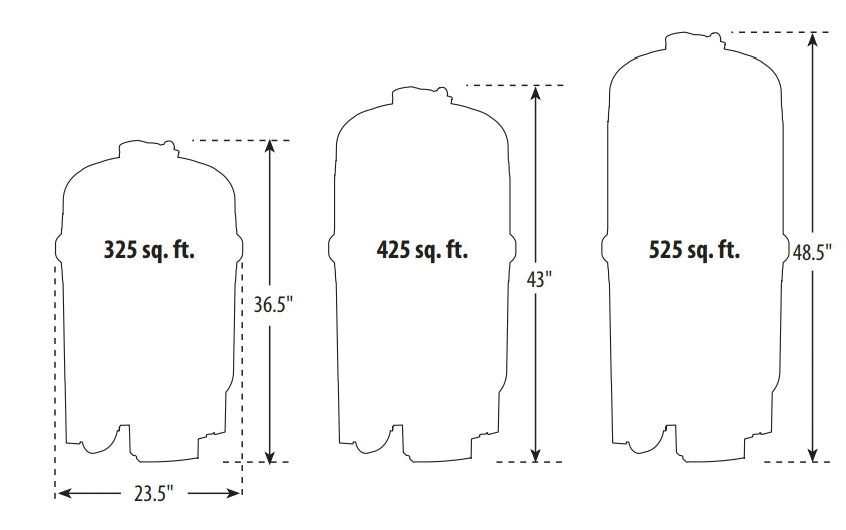

Waterway’s catalog shows a 36.5-inch tank height and 23.5-inch width. The owner’s manual additionally calls for at least 11 inches of clearance above the filter and 6 inches at the side. Keep the pressure gauge, air relief, clamp and drain accessible; these service clearances are additional to the tank dimensions.

Which replacement cartridge does it use?

The current manufacturer manual identifies four 817-0081 cartridges, each rated at 81.25 sq. ft., for the 325 sq. ft. model. Match your filter’s label and applicable parts diagram before ordering replacements. The cartridge number is not the same as this complete filter’s 570-0325-07 part number.

How do I know when the cartridges need cleaning?

Waterway’s manual calls for cleaning when pressure rises 8–10 PSI above the clean starting pressure. Establish that clean baseline after proper startup and air bleeding. Shut off the pump, prevent unintended restart and release system pressure before opening the tank; follow the complete manufacturer service instructions.

Can I change the filtration type later?

Waterway’s catalog describes the Crystal Water tank platform as convertible between cartridge and D.E. filtration by changing the internals. This is not a media-only swap. Confirm the complete compatible internal assembly and any required valve or plumbing changes for your exact tank before planning a conversion.

Delivery and Shipping

  • FREE SHIPPING IN THE USA
  • WORLDWIDE SHIPPING AVAILABLE
  • 30 DAY RETURNS

Description

Waterway Plastics · Crystal Water · 570-0325-07

Everyday filtration with service access built in

A pool filter should be straightforward to live with. The Crystal Water 325 uses four removable cartridge elements to provide 325 square feet of filtration area, with a serviceable tank layout that gives your pool professional access to the elements when cleaning is due.

Four removable cartridges

The quad-cartridge layout separates the filter area into individual elements that can be removed and cleaned according to the owner’s manual.

Large internal plumbing

Waterway specifies 2½-inch internal piping and bulkhead unions, with 2-inch reducers for installation flexibility.

A reinforced tank

The fiberglass-reinforced polypropylene body combines a chemical-resistant material with accessible filtration components.

Plan for the equipment pad and the next service

Have a qualified pool professional check the system’s flow requirements, connection layout and service clearances before ordering. This listing is a complete cartridge filter, rather than a replacement cartridge set.

Find model-specific ratings in Specifications, installation and parts guidance in Resources & PDF Downloads, and practical buying answers in Product FAQs.

Specifications

  • SKU
    570-0325-07
  • UPC or GTIN
    806105312952
  • Product Type
    In-Ground Cartridge Pool Filter
  • Size/Connection
    325 sq. ft.; 112 GPM design flow; 50 PSI maximum working pressure; 2½ in internal piping; 2½ in bulkhead unions with 2 in reducers
  • Materials
    Fiberglass-reinforced polypropylene tank
  • Dimensions
    23.5 in, 36.5 in
