Zodiac MX6 Elite Suction-Side Pool Cleaner | MX6EL

Zodiac | SKU: MX6EL | Barcode: 052337078443

In-store pickup or delivery only

Call (602) 274-7946

Ships to

Product FAQs

Which pool types and surfaces does MX6EL support?

Zodiac’s U.S. specification table lists inground and aboveground pools with concrete, tile, vinyl or fiberglass surfaces. Check the complete installation instructions and surface condition before use.

How does the Elite differ from the original MX6?

The MX6 Elite includes Cyclonic Scrubbing brushes that rotate and scrub fine and stuck-on debris while the cleaner vacuums. Match MX6EL rather than assuming the original MX6 has the same scrubbing configuration.

What hose and flow-control components are included?

The current owner’s component diagram specifies nine twist-lock connector hose sections plus one leader section with a hose float for MX6 Elite. It also shows the flow regulator, Flowkeeper valve, valve cuff and connection elbows. Follow the manual for the correct fittings and connected hose length.

Where does it connect?

Use the pool skimmer or a dedicated 1½-inch vacuum/suction line. The filtration pump supplies suction flow; the cleaner’s flow regulator helps limit excessive flow.

How is correct flow checked?

Follow the owner’s complete safety instructions, keep the cleaner fully submerged just below the water line and time ten rotations of the marked rear-right wheel. The manual’s target is 20–25 seconds. Restart the count if the cleaner changes direction; adjust flow as the manual directs.

What warranty does Zodiac list?

Zodiac’s U.S. MX6 Elite specification table lists a one-year warranty. Consult the complete applicable terms for coverage, exclusions and claim requirements.

Compatibility

Zodiac’s U.S. specification table lists MX6 Elite for inground and aboveground concrete, tile, vinyl and fiberglass pools. Use a skimmer or dedicated 1½-inch vacuum/suction line with the proper safety fittings.

MX6EL includes Cyclonic Scrubbing brushes, X-Drive navigation and X-Trax tracks. The current manual identifies nine connector hose sections plus the leader with float and includes the flow-control components; match the actual MX6 Elite diagram rather than the longer MX8 hose package.

Wall climbing depends on pool shape, surface condition and available flow. Use the complete manual to check ten wheel rotations in 20–25 seconds while keeping the cleaner fully submerged.

Zodiac U.S. MX6 Elite model and specifications

Call (602) 274-7946

Where to Buy

Resources & PDF Downloads

Zodiac MX Owner’s Manual — H0539800 Rev B

Zodiac MX6 Elite Brochure — SL3876 (2018)

Zodiac MX Quick Start — H0539900 Rev C

Description

Zodiac | MX6EL

MX6 Elite Suction-Side Pool Cleaner

The Zodiac MX6EL is the MX6 Elite Suction-Side Pool Cleaner. It is listed for inground and aboveground concrete, tile, vinyl and fiberglass pools. The compact MX6 Elite combines cyclonic suction with removable Cyclonic Scrubbing brushes, X-Drive navigation and X-Trax tracks. It uses the pool’s suction system to collect debris and scrub pool surfaces, with an included flow regulator to control excess flow.

Before you order

Confirm the MX6EL model, your pool’s skimmer or dedicated 1½-inch vacuum connection and the required hose length. Available flow, pool shape and surface condition affect wall climbing and coverage.

Product overview

The compact MX6 Elite combines cyclonic suction with removable Cyclonic Scrubbing brushes, X-Drive navigation and X-Trax tracks. It uses the pool’s suction system to collect debris and scrub pool surfaces, with an included flow regulator to control excess flow.

Cleaning features

Cyclonic suction collects dirt and debris.

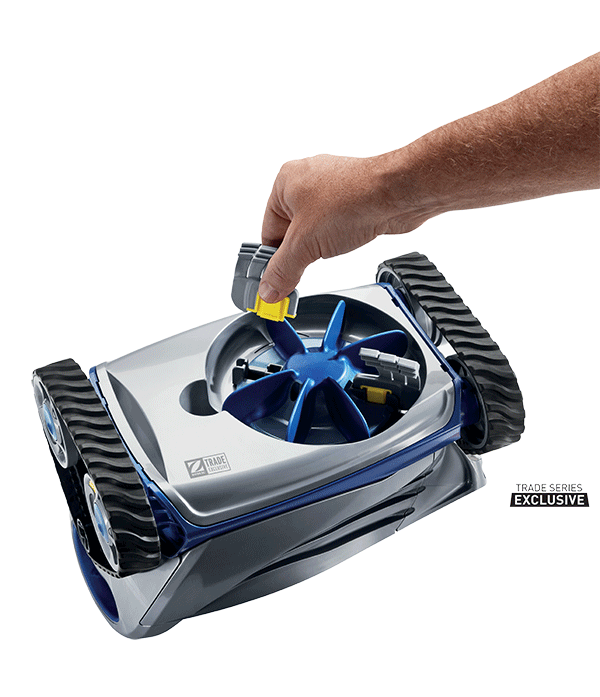

Cyclonic Scrubbing brushes rotate against pool surfaces and are removable for service.
X-Drive navigation changes travel direction while X-Trax tracks provide traction.
A flow regulator helps limit excessive water flow through the cleaner.
The compact, low-flow design works with suitable two-speed and variable-speed pump systems.
Twist-lock hose connections help maintain a secure suction path.

Choose the right configuration

Confirm manufacturer reference MX6EL and review the specifications, supplied components and any required accessories. Use the manufacturer instructions to check that this exact configuration suits your pool system.

Safety and handling: Read the complete manual before installation. Turn the suction pump off before disconnecting or servicing the cleaner, keep people clear of open suction fittings and remove the cleaner before entering the pool. Inspect vinyl liners and follow all surface-condition precautions.

Existing product videos

See Compatibility, Specifications, Resources & PDF Downloads and Product FAQs for product details and support references.

Specifications

SKU

MX6EL
Product Type

Suction-Side Pool Cleaners
Size/Connection

Connection: skimmer or dedicated 1½-inch vacuum line; supplied hose: 9 twist-lock connector sections plus leader with float
