Zodiac Ranger Diaphragm Chamber

FG icon
Zodiac SKU: W81741

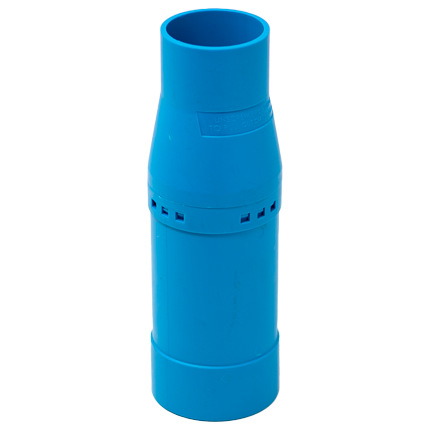

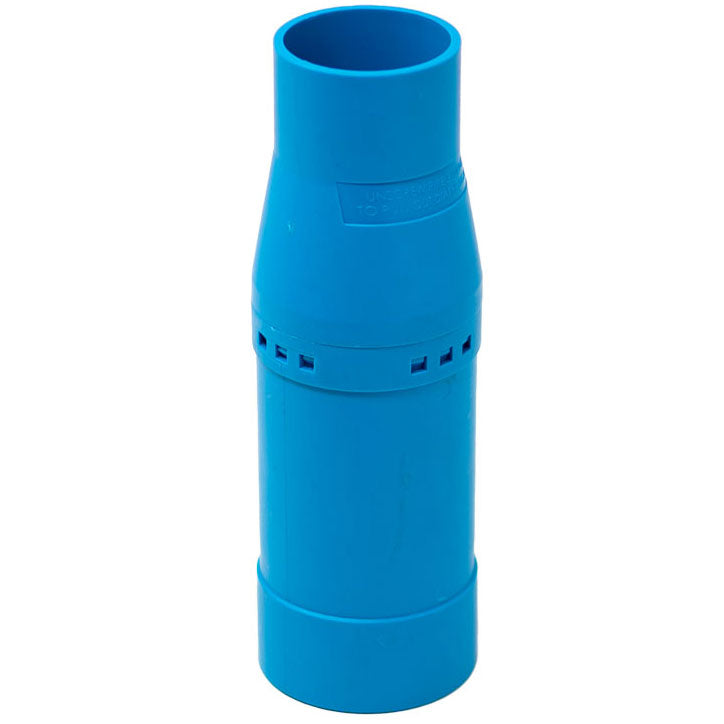

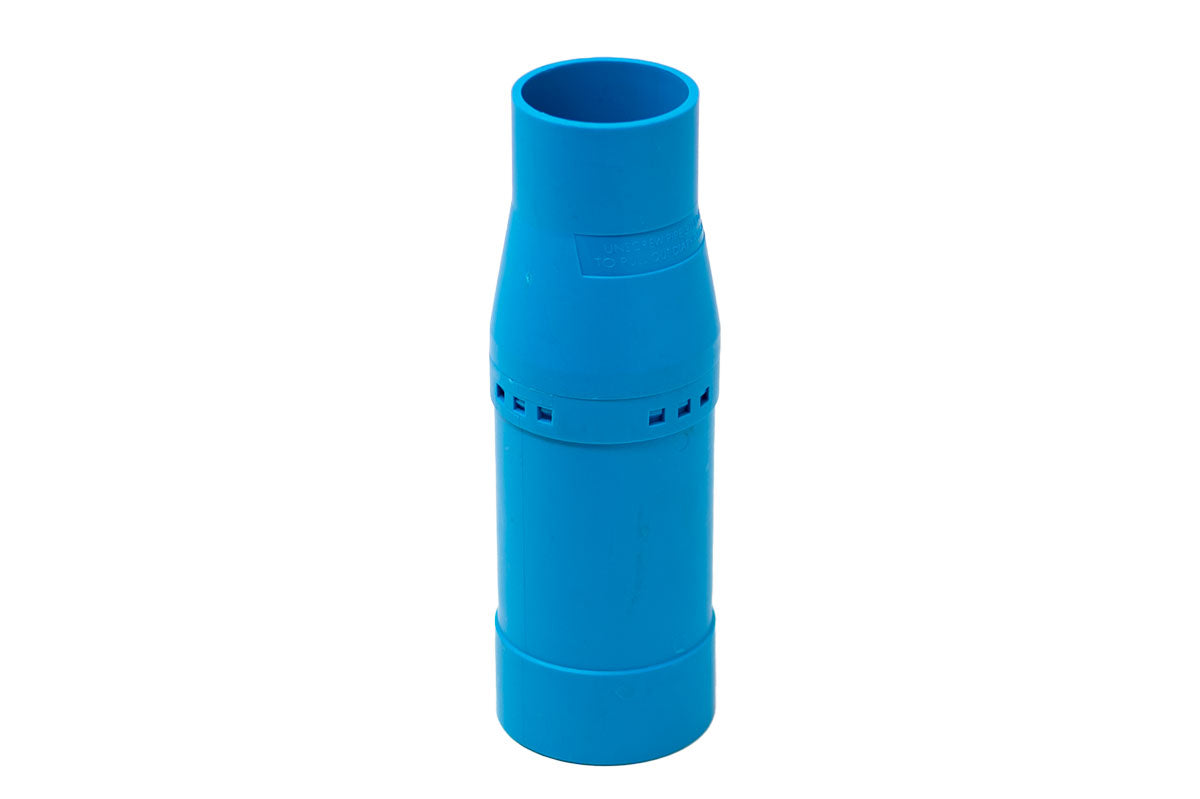

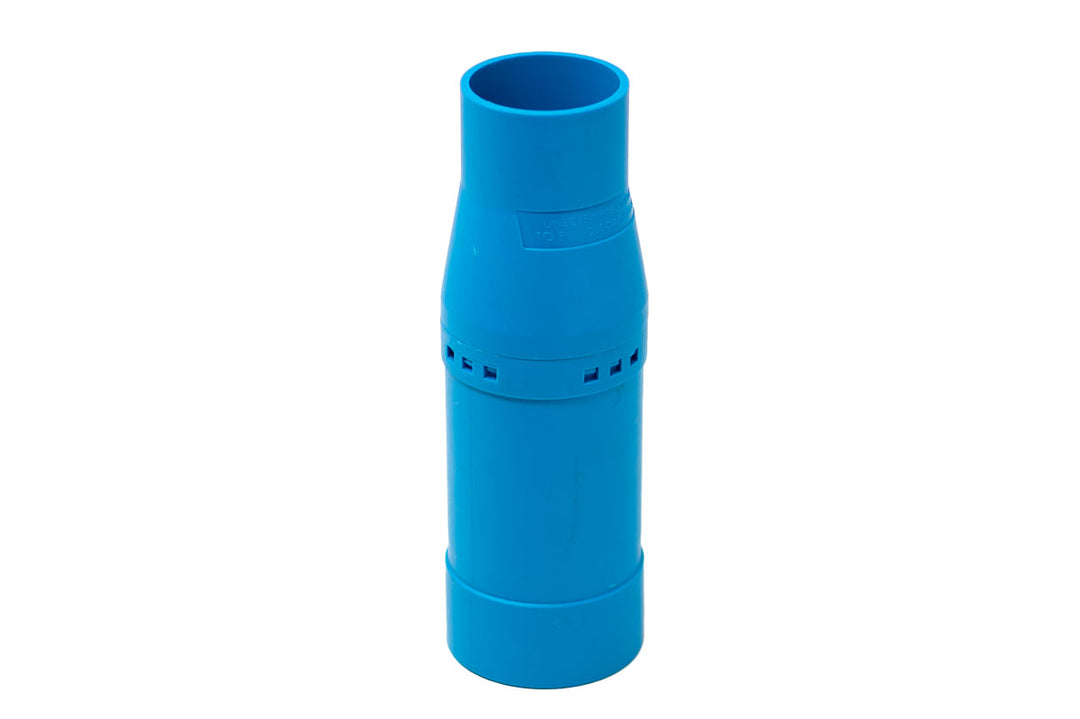

main image

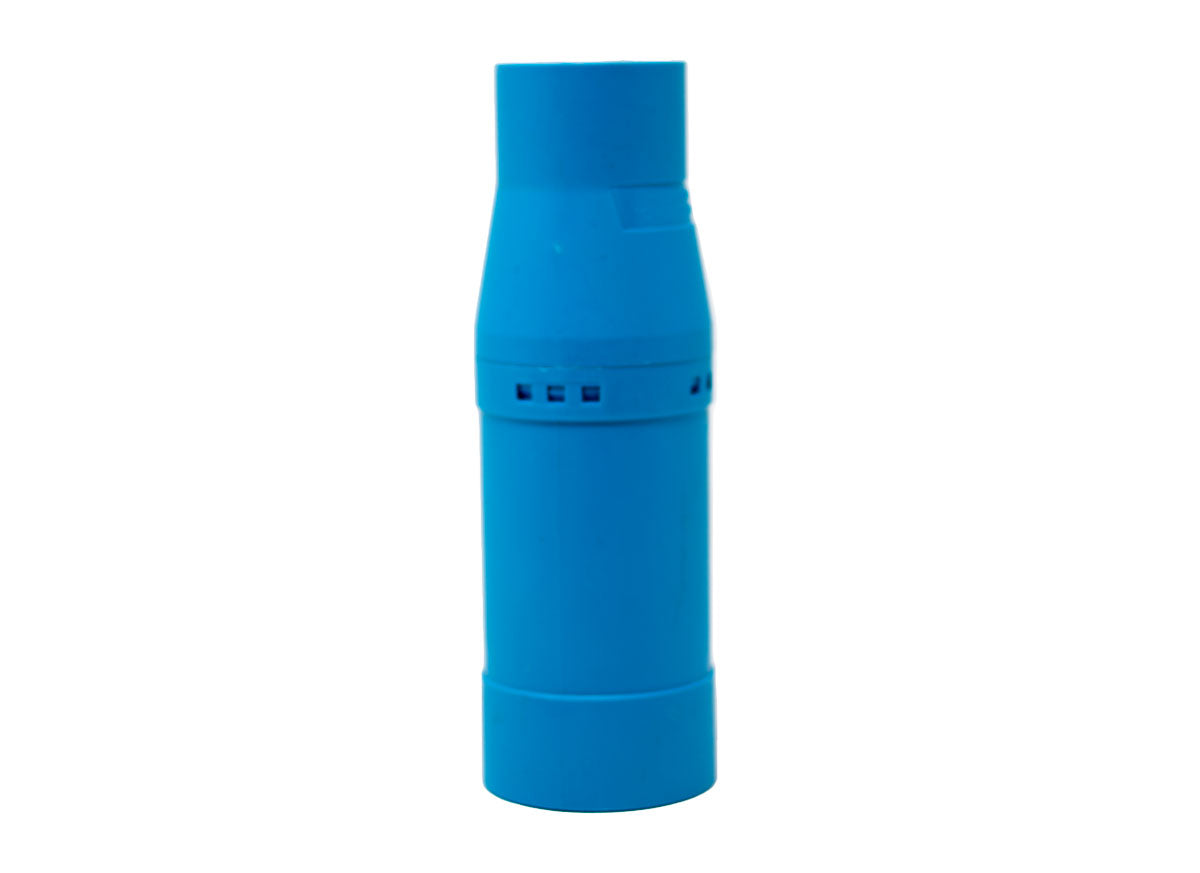

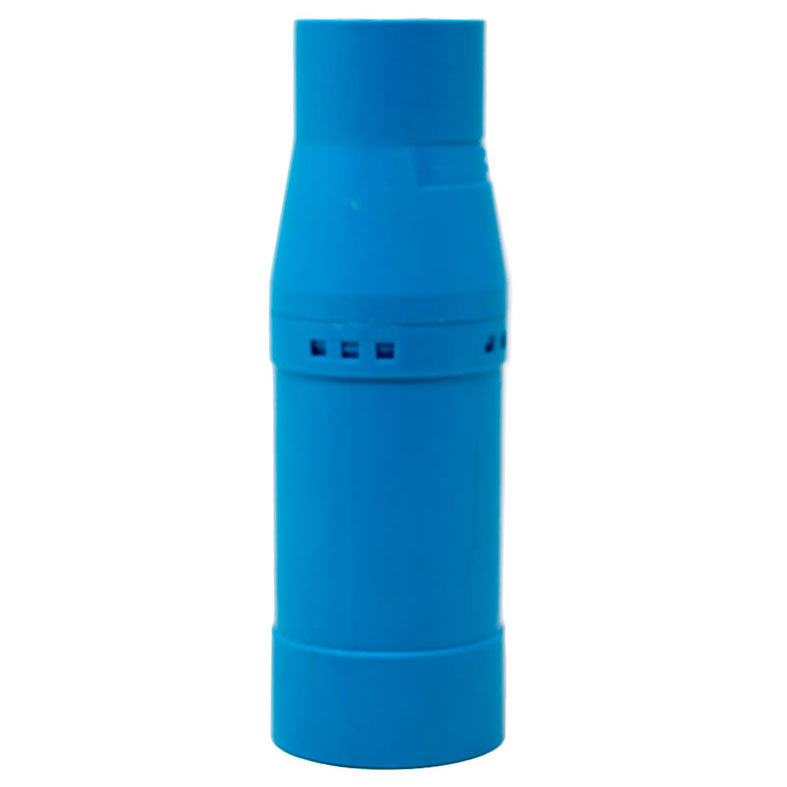

side angle view of image

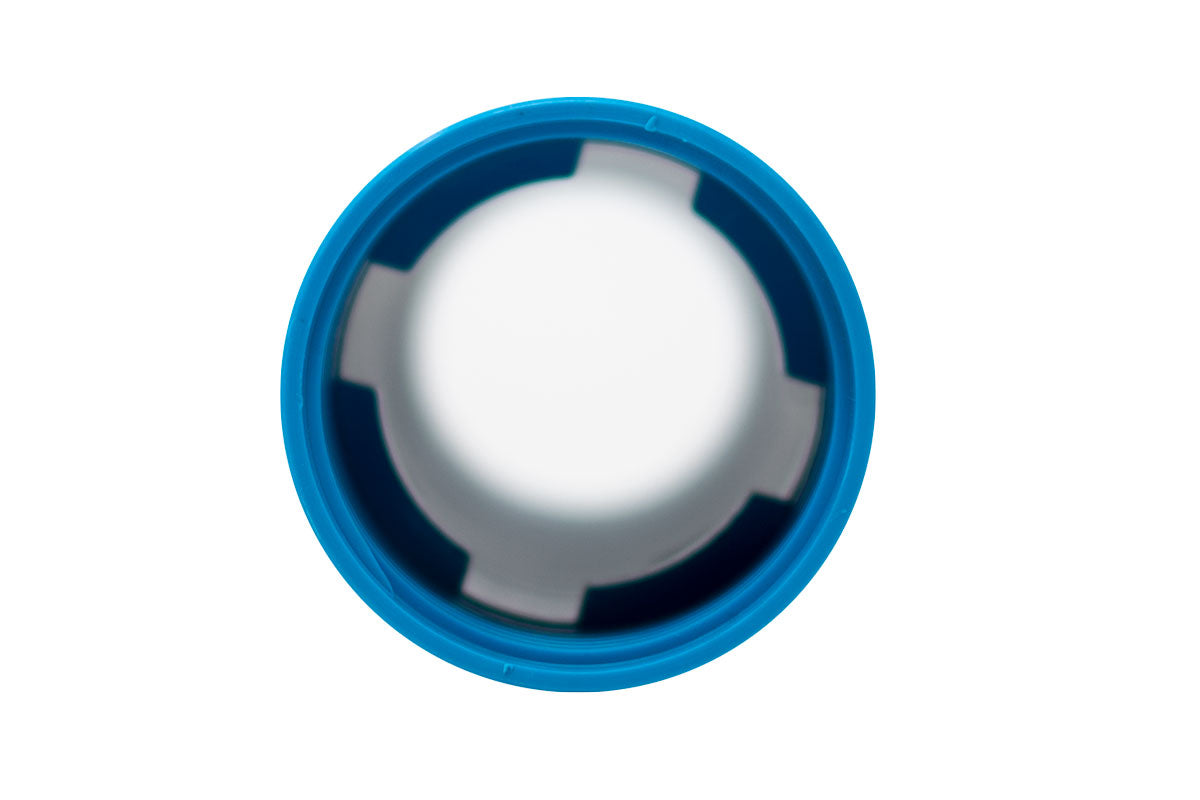

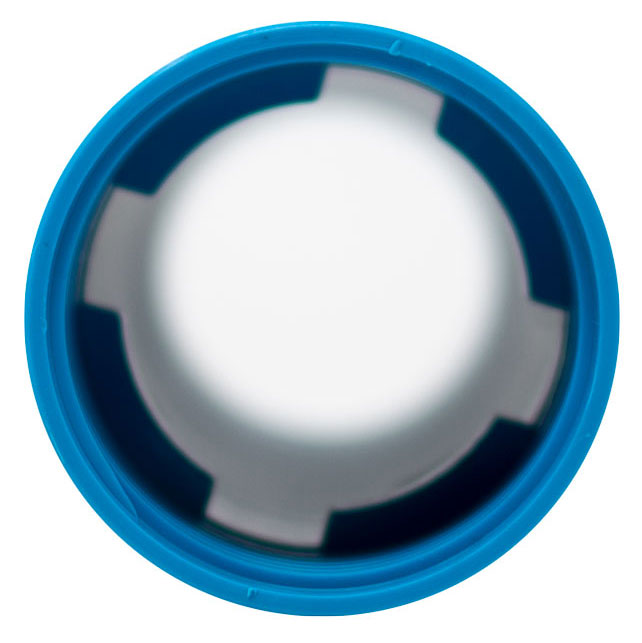

inside view of the image

Zodiac Ranger Diaphragm Chamber

FG icon
Zodiac SKU: W81741
Regular price $22.95 Sale price $14.95 Save 35%
  • Unlock Specials Savings On Select Items When Added To Cart
  • Item Qualifies For Free Gift At Checkout
  • Qualifies For Free Shipping in the USA
Shipping calculated at checkout.

Zodiac Ranger Diaphragm Chamber (W81741)


The diaphragm chamber is a replacement part made by Zodiac. It is manufactured from the same high-grade plastic material as the original factory part. Making this genuine OEM product.

The diaphragm chamber was designed to be the housing unit for the above-ground cassette diaphragm. It also acts as a protective cover for the diaphragm chamber ensuring no outside influence can disrupt it during the cleaning process.

This part is blue in color and rests below the cassette pipe. All parts sit in the center of the frame assembly making it easy to locate. Also, this part is threaded on the inside so it can connect to the cassette pipe for easy installation or removal whenever it needs to be replaced.
