Caretaker High Flow Bayonet Replacement Cleaning Head — Charcoal Gray | 4-9-536

4-9-536: Charcoal Gray; bayonet connection; head only.

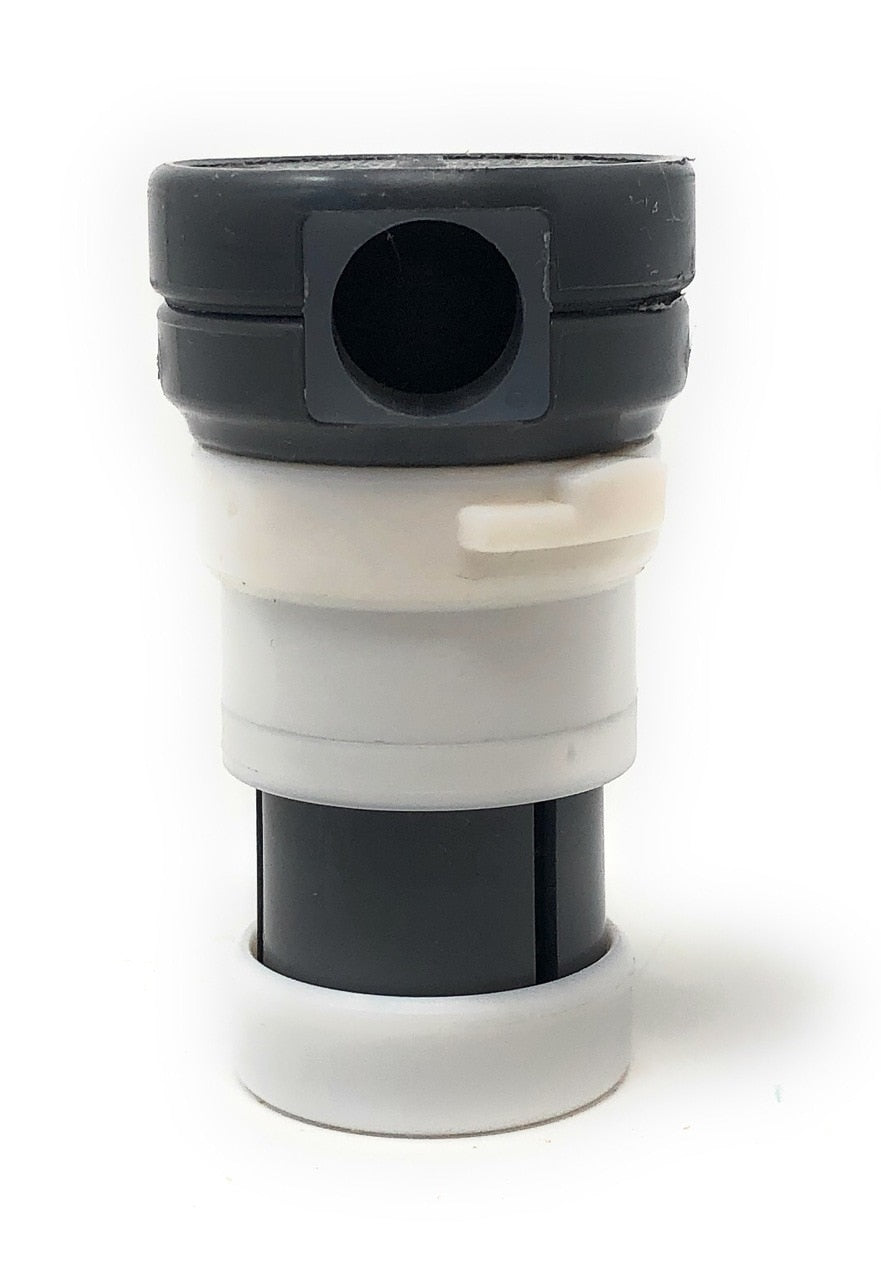

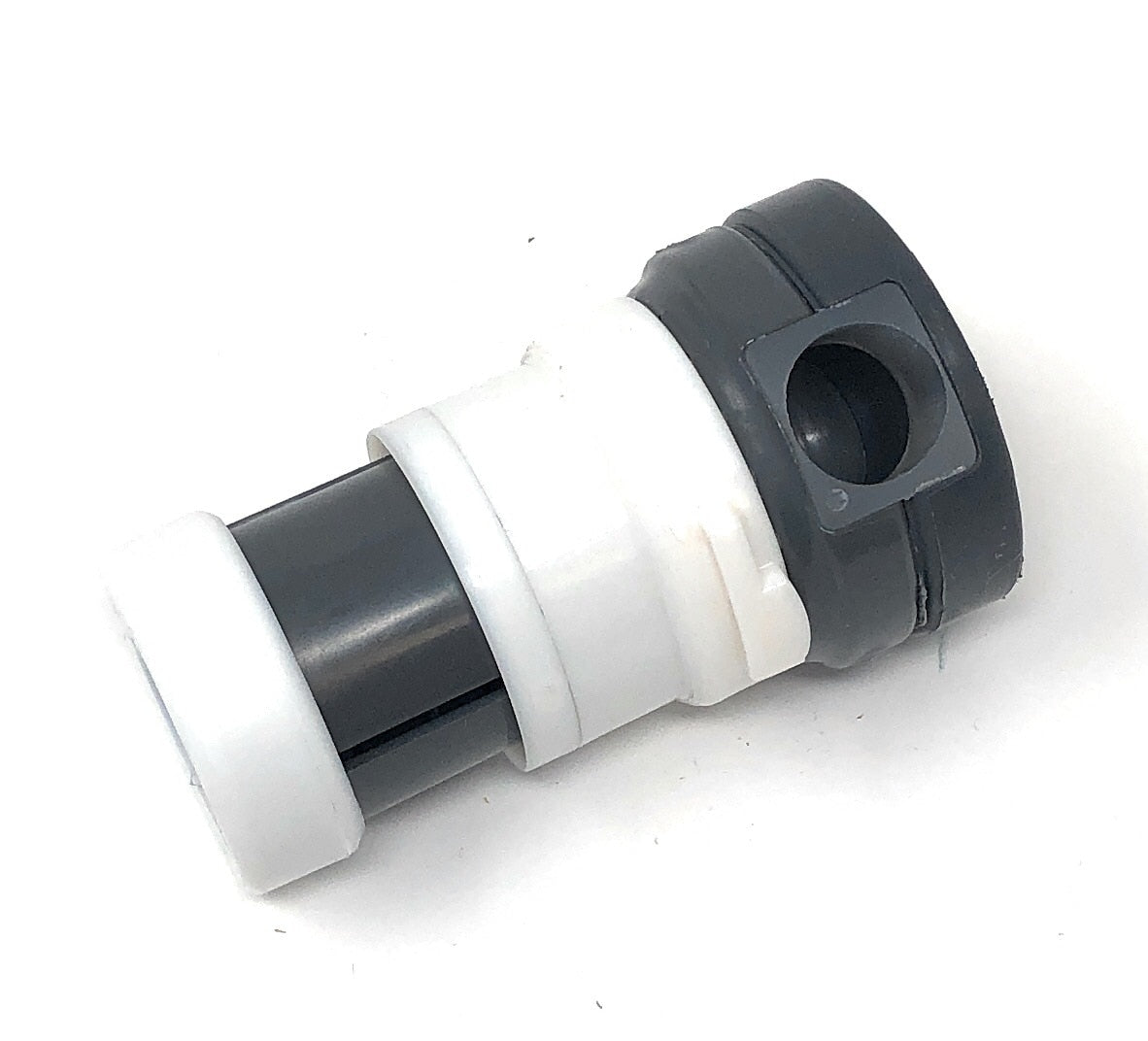

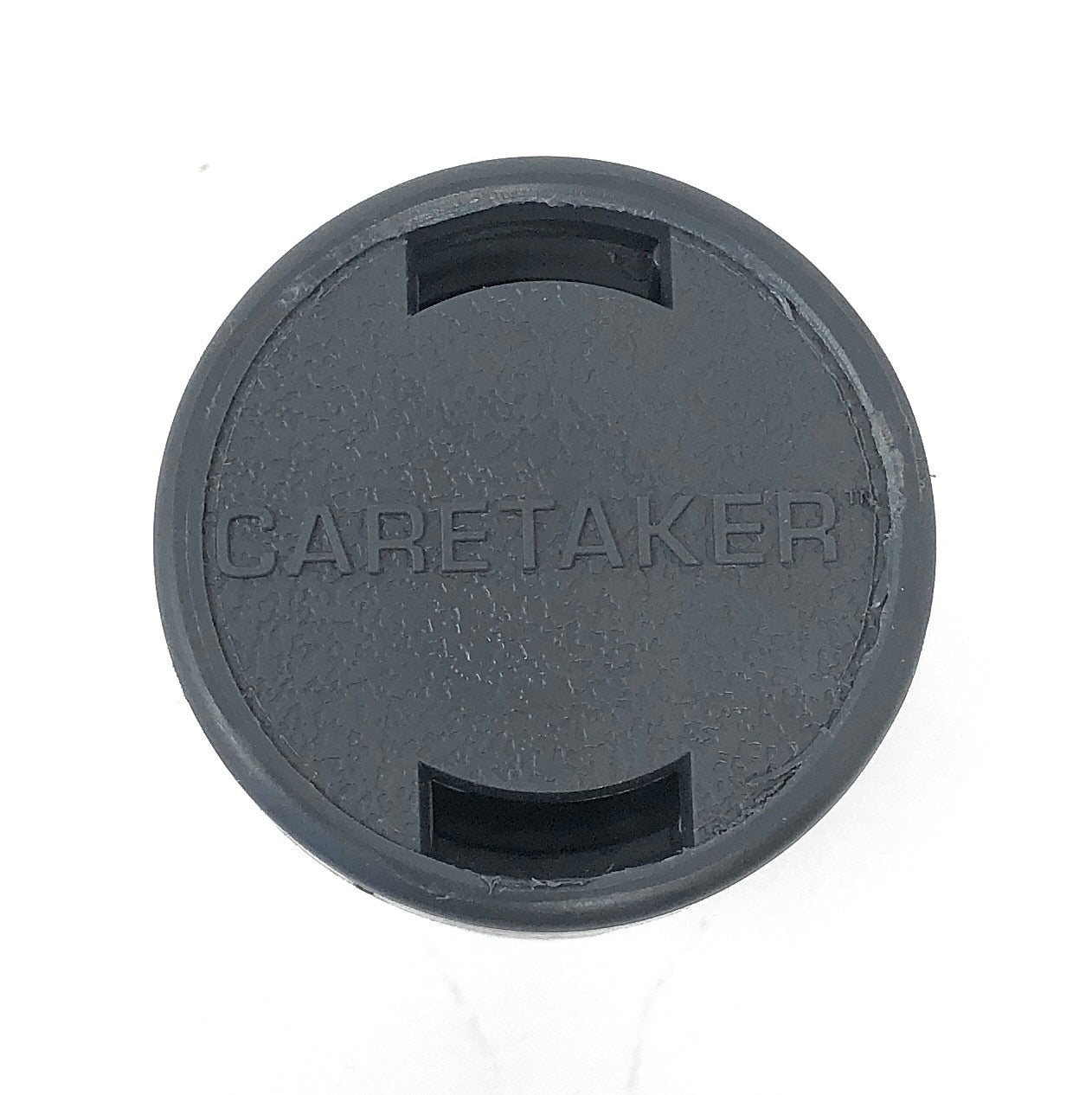

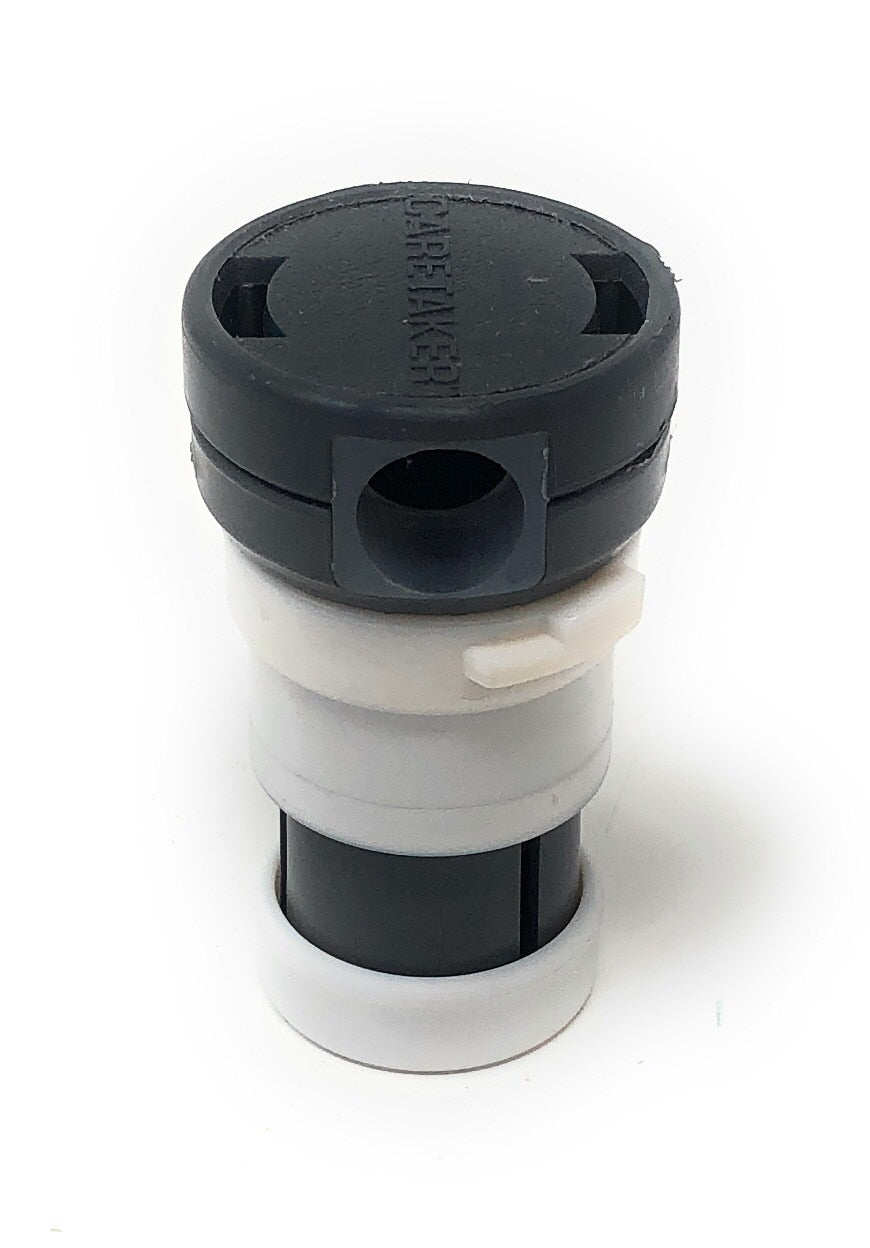

One Charcoal Gray replacement cleaning head. Factory-installed High Flow nozzle included. Collar, floor fitting, protective cap, tool and complete cleaning system are separate items.

For the matching Jandy/Caretaker bayonet-style in-floor collar. Verify the installed collar and the specified flow configuration; color alone does not establish fit or nozzle size.

A head-only replacement fits into an existing matched collar; it does not include the collar or establish its pipe size. Match the head connection, flow and approved pool design before ordering.

Stop the pump, prevent restart and make sure the head is fully down before removal. The bayonet head releases counterclockwise with the correct tool and locks clockwise during reinstallation. Inspect the head, nozzle and collar for debris; arrange professional winterization where freezing is possible.

The separately listed 3-17-7 metal tool and 3-17-8 plastic tool must be matched to the actual head. These tools are not included with this item. The release direction depends on bayonet versus pre-1992 threaded connection.

Jandy’s separate In-Floor warranty provides one year for manufacturing defects and90 days for purchased replacement parts. The conditional lifetime provision applies to eligible cleaning heads originally installed with Jandy In-Floor valves for the first retail purchaser; it does not automatically cover a purchased replacement or extend lifetime coverage to collars, caps or floor fittings. Approved certified pool design, qualified installation, original-site and other terms apply. Scope is the 50 United States and Canada; shipping and labor are excluded. Property transfer or remodeling ends coverage as described in the statement.

Fluidra 2026 exact ordering codes, page 123, Jandy In-Floor limited warranty and manufacturer cleaning-head support and removal guidance.
