Jandy TC3 Flush-Mount Pool/Spa Return Jet — Pebble Gold | 3-3-114

3-3-114: Pebble Gold; catalog-listed 1½-inch and 1-inch return-inlet configuration.

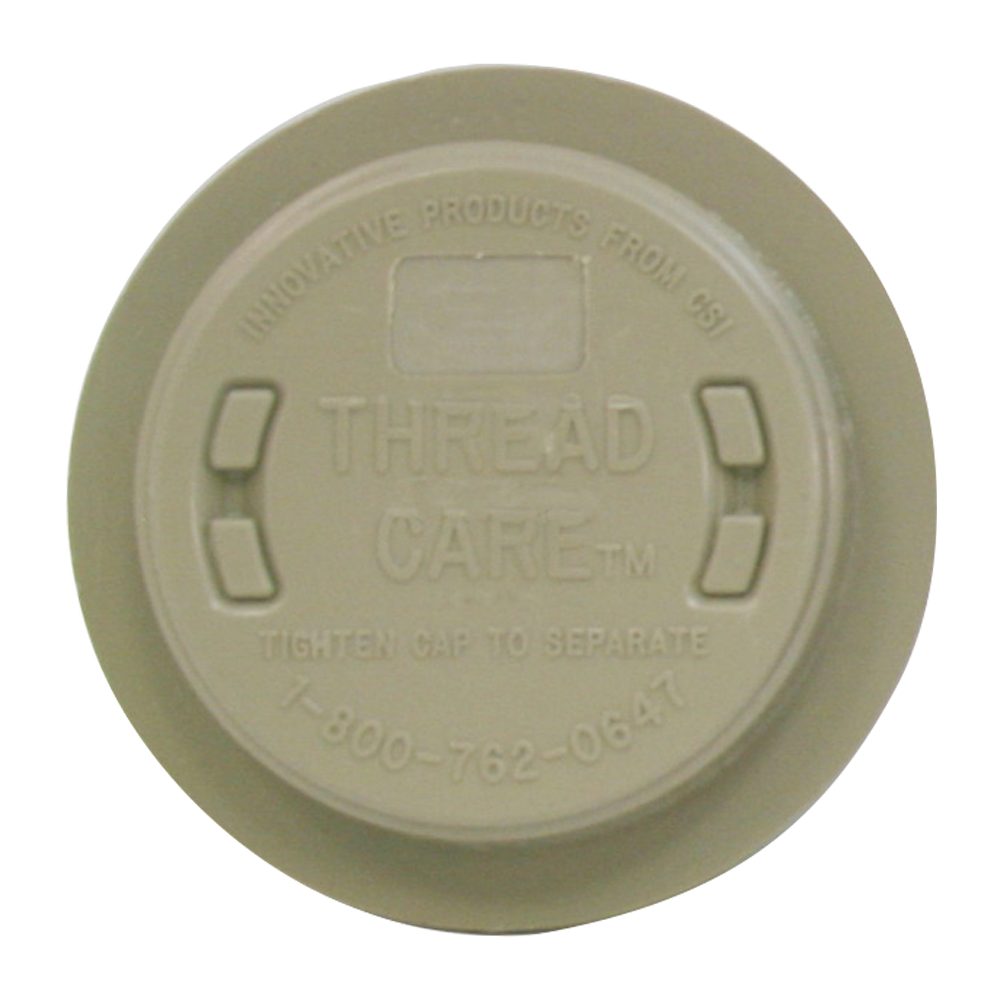

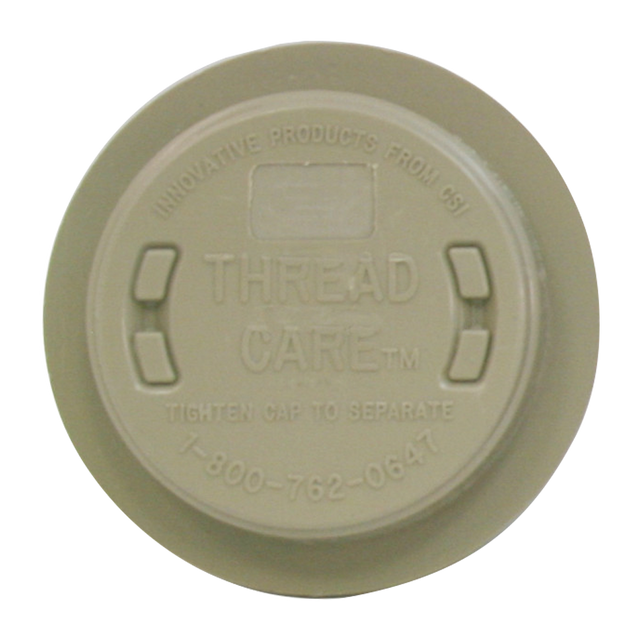

One TC3 return-jet fitting in Pebble Gold. The manufacturer installation drawing shows the protective construction cap and restrictor-nozzle arrangement; the installation tools and return plumbing are separate.

For the matched ThreadCare pool/spa wall-return installation. The manufacturer describes a flush-mount fitting with an adjustable eyeball, 360-degree directional adjustment and three nozzle sizes. The 2026 ordering table lists 1½-inch and 1-inch return inlets; the installation sheet illustrates a 1½-inch return pipe. Verify the actual pipe and nozzle configuration before installation.

A qualified installer must follow TL-1317 D: after the illustrated 1½-inch return line is plumbed and pressure-tested, cut it flush with the wall, then use 5-17-4 to cut the pipe back 5/8 inch behind the shell surface. Prime and glue the fitting with the cap attached, allowing for the finish thickness. After finishing, remove the cap by turning clockwise with needle-nose pliers or 4-17-4 until it separates. At startup, select the applicable restrictor nozzle. The 5/8-inch setback is an installation measurement, not the product’s body depth.

Jandy’s separate In-Floor limited warranty states one year for manufacturing defects and 90 days for purchased replacement parts, subject to its certified-design, qualified-installation, original-purchaser/site and other terms. The conditional lifetime provision applies to eligible original cleaning heads installed with Jandy In-Floor valves; it does not automatically give this purchased accessory, fitting, nozzle or gasket lifetime coverage. Coverage is for the 50 United States and Canada; shipping and labor are excluded. Property transfer or remodeling ends coverage as described in the statement.

Fluidra 2026 ordering table, page 124; manufacturer accessory/selection reference; Jandy In-Floor limited warranty.

The 2026 catalog marks this exact TC3 finish limited quantity, available while supplies last. It is not marked DISC in that ordering table. Confirm availability for the project.
